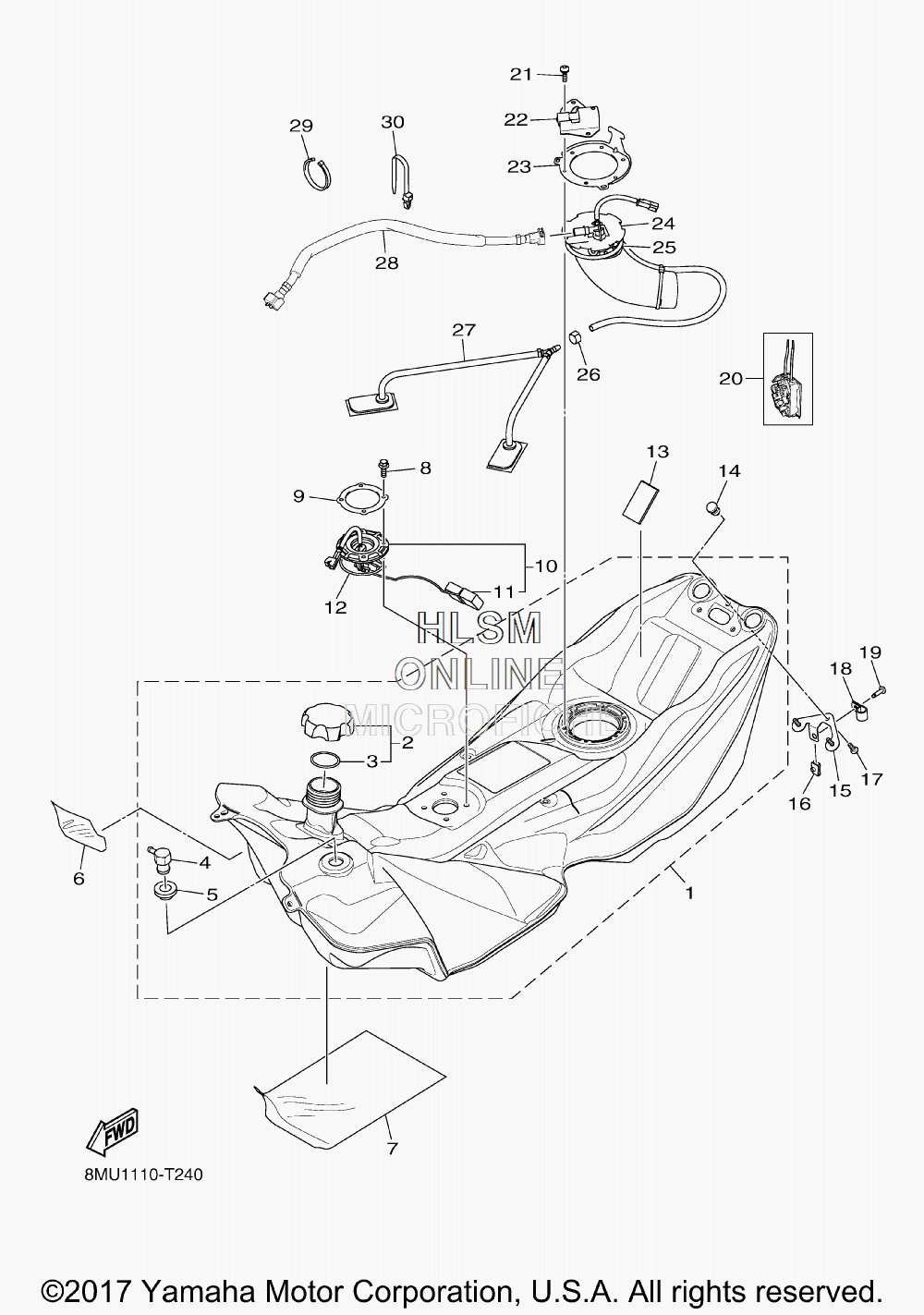

FUEL TANK 1 для Yamaha SR VENTURE DX - 2018 года выпуска`
-
№АртикулНазвание
-
18LN-F4100-00-00 FUEL TANK ASSYFUEL TANK ASSY
-
28JP-F4610-00-00 ...CAP ASSY...CAP ASSY
-
38JM-F4641-00-00 ......GASKET, CAP 1......GASKET, CAP 1
-
48LN-F4362-00-00 ...VALVE, CHECK 1...VALVE, CHECK 1
-
58JP-E5366-00-00 ...GROMMET...GROMMET
-
68JP-F416F-01-00 INSULATOR, FUEL TANK 1INSULATOR, FUEL TANK 1
-
78JP-F476U-01-00 PROTECTOR 1PROTECTOR 1
-
88JP-RA178-00-00 BOLT, FLANGE M5X0.8X16BOLT, FLANGE M5X0.8X16
-
98JP-K8166-00-00 PLATE, RETAINERPLATE, RETAINER
-
108JP-H5752-00-00 SENDER UNIT ASSY, FUEL METERSENDER UNIT ASSY, FUEL METER
-
118JP-H369N-00-00 ...FLOAT...FLOAT
-
128JP-RAF10-00-00 O-RING, 46.9O-RING, 46.9
-
138JP-H2121-00-00 PAD, BATTERYPAD, BATTERY
-
148LN-K7193-00-00 NUT, LATCHNUT, LATCH
-
158LN-F478X-00-00 BRACKET, SEAT LOCKBRACKET, SEAT LOCK
-
168JP-RA354-00-00 NUT, CLIP M6NUT, CLIP M6
-
178JP-RA235-00-00 SCREW, 1SCREW, 1
-
188JP-RAB23-00-00 CLAMP, 21CLAMP, 21
-
198LN-K7537-00-00 BOLT 1BOLT 1
-
208LN-H5701-00-00 SENDER ASSYSENDER ASSY
-
218JP-RA242-00-00 SCREW, M5X0.8X20SCREW, M5X0.8X20
-
228JP-F413K-00-00 GUIDE, NOZZLEGUIDE, NOZZLE
-
238JP-F4491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
248JP-E3907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
258JP-F4486-00-00 O-RINGO-RING
-
268JP-RAB27-00-00 CLAMP, 25CLAMP, 25
-
278JP-F4502-00-00 FILTER, FUELFILTER, FUEL
-
288JX-F4310-00-00 FUEL PIPE ASSYFUEL PIPE ASSY
-
298JM-RAB01-00-00 CLAMP, 2 (8 INCH) (OPT)CLAMP, 2 (8 INCH) (OPT)
-
298JP-RAB10-00-00 CLAMP, 8 (11.75 INCH) (OPT)CLAMP, 8 (11.75 INCH) (OPT)
-
308JM-RAB02-00-00 CLAMP, 3CLAMP, 3
