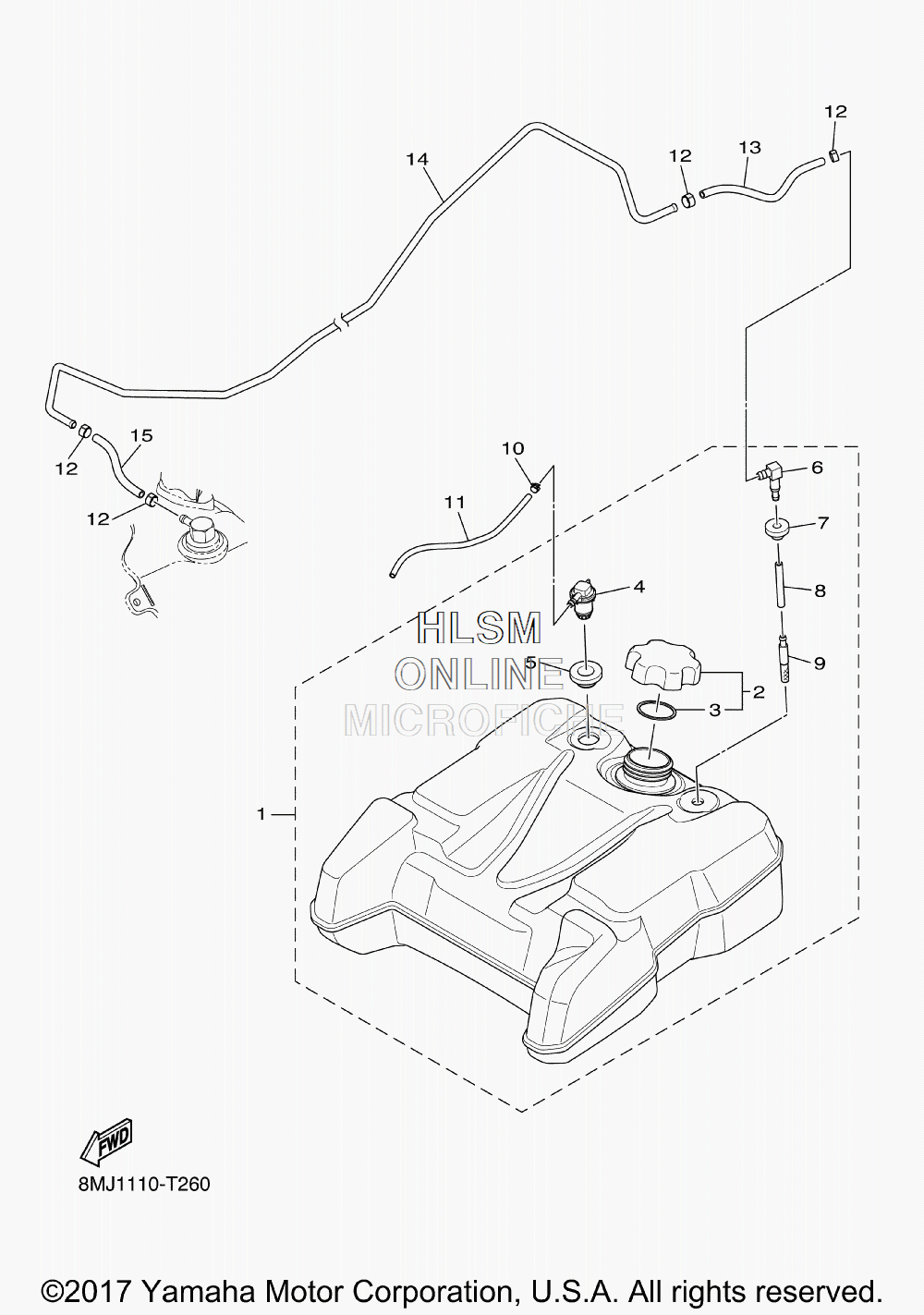

FUEL TANK ASSY 2 для Yamaha SR VENTURE DX - 2018 года выпуска`
-
№АртикулНазвание
-
18LN-F4100-10-00 FUEL TANK ASSYFUEL TANK ASSY
-
28JP-F4610-00-00 ...CAP ASSY...CAP ASSY
-
38JM-F4641-00-00 ......GASKET, CAP 1......GASKET, CAP 1
-
48JP-F4362-00-00 ...VALVE, CHECK 1...VALVE, CHECK 1
-
58JP-E5366-00-00 ...GROMMET...GROMMET
-
68LN-F4376-00-00 ...PIPE, JOINT 1...PIPE, JOINT 1
-
78JP-E5367-00-00 ...GROMMET...GROMMET
-
88LN-F452B-00-00 ...HOSE, FUEL OUTLET...HOSE, FUEL OUTLET
-
98LN-F4536-00-00 ...STRAINER...STRAINER
-
108JP-RAB12-00-00 CLAMP, 10CLAMP, 10
-
118JP-RA907-00-00 HOSE, 3 (50 FEET)HOSE, 3 (50 FEET)
-
128JP-RAB08-00-00 CLAMP, 6CLAMP, 6
-
138JP-RA909-10-00 HOSE, 5HOSE, 5
-
148MJ-F4311-10-00 PIPE, FUEL 1PIPE, FUEL 1
-
158JP-RA910-00-00 HOSE, 6 (25 FEET)HOSE, 6 (25 FEET)
