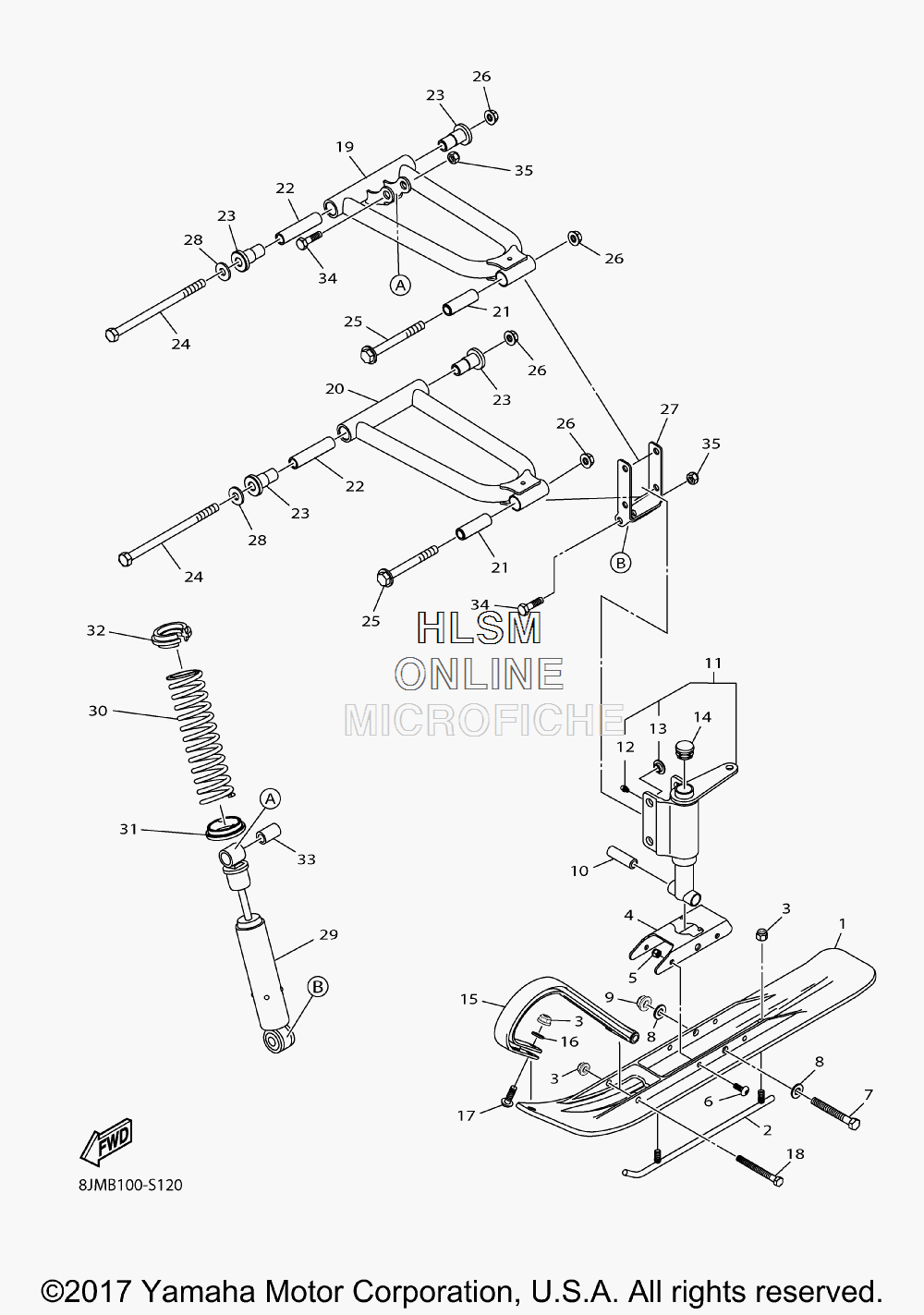

SUSPENSION - FRONT W/ SKI ASSY для Yamaha SRX 120 - 2017 года выпуска`
-
№АртикулНазвание
-
18JM-F3711-00-00 SKI 1SKI 1
-
28JM-F3731-00-00 RUNNER 1RUNNER 1
-
38JM-RA303-00-00 NUT, SELF-LOCKING 5/16-18NUT, SELF-LOCKING 5/16-18
-
48JM-F3766-00-00 SADDLE 1SADDLE 1
-
58JP-RA357-00-00 NUT, FLANGE LOCKING 1/4-20NUT, FLANGE LOCKING 1/4-20
-
68JM-RA204-00-00 SCREW, 1/4-20X3/4SCREW, 1/4-20X3/4
-
78JM-RA110-00-00 BOLT, HEXAGON 3/8-16X3BOLT, HEXAGON 3/8-16X3
-
88JM-RA405-00-00 WASHER, PLAIN 3/8WASHER, PLAIN 3/8
-
98JP-RA358-00-00 NUT, FLANGE LOCKING 3/8-16NUT, FLANGE LOCKING 3/8-16
-
108JM-RA702-00-00 COLLAR, 9COLLAR, 9
-
118JM-F3501-00-00 STEERING KNUCKLE ASSYSTEERING KNUCKLE ASSY
-
128JM-R169A-00-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
138JM-RA800-00-00 ...BUSH, 9...BUSH, 9
-
148JM-F3741-00-00 CAP 1CAP 1
-
158JM-F3712-00-00 REINFORCEMENT, HEADREINFORCEMENT, HEAD
-
168JM-RA403-00-00 WASHER, PLAIN 516WASHER, PLAIN 516
-
178JM-RA205-00-00 SCREW, 5/16-18X1SCREW, 5/16-18X1
-
188JM-RA111-00-00 BOLT, HEXAGON 5/18X3BOLT, HEXAGON 5/18X3
-
198JM-F354A-00-00 ARM, FRONT UPPERARM, FRONT UPPER
-
208JM-F357A-00-00 ARM, FRONT LOWERARM, FRONT LOWER
-
218JM-RA702-00-00 COLLAR, 9COLLAR, 9
-
228JM-RA703-00-00 COLLAR, 10COLLAR, 10
-
238JM-F3583-00-00 BUSHBUSH
-
248JM-RA107-10-00 BOLT, HEXAGON 3/8-16X6BOLT, HEXAGON 3/8-16X6
-
258JM-RA108-00-00 BOLT, FLANGE 3/8-16X3.25BOLT, FLANGE 3/8-16X3.25
-
268JP-RA358-00-00 NUT, FLANGE LOCKING 3/8-16NUT, FLANGE LOCKING 3/8-16
-
278JM-F3574-00-00 BRACKET, FRONT CUSHIONBRACKET, FRONT CUSHION
-
288JM-RA405-00-00 WASHER, PLAIN 3/8WASHER, PLAIN 3/8
-
298JM-F376A-00-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
308JM-F3760-00-00 SPRING ASSY 1SPRING ASSY 1
-
318JM-F3777-00-00 SEAT, SPRING 2SEAT, SPRING 2
-
328JM-F3768-00-00 SEAT, SPRING 1SEAT, SPRING 1
-
338JM-RA704-00-00 COLLAR, 9COLLAR, 9
-
348JM-RA109-00-00 BOLT, HEXAGON 3/8-16X1.5BOLT, HEXAGON 3/8-16X1.5
-
358JM-RA305-00-00 NUT, SELF-LOCKING 3/8-16NUT, SELF-LOCKING 3/8-16
