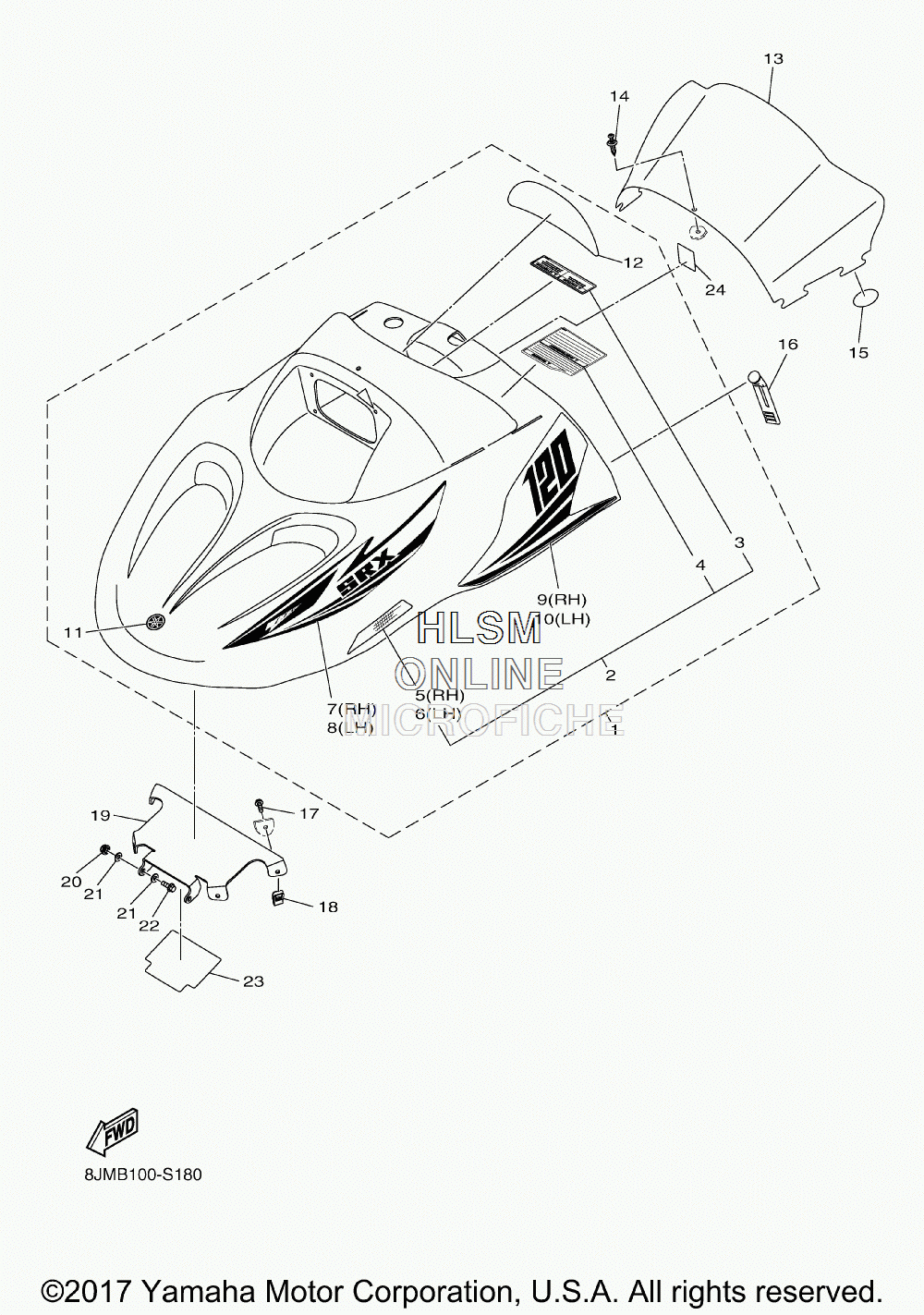

HOOD - WINDSHIELD ASSY для Yamaha SRX 120 - 2017 года выпуска`
-
№АртикулНазвание
-
18JM-K7110-30-00 SHROUD ASSYSHROUD ASSY
-
28JM-K7111-00-00 ...SHROUD...SHROUD
-
38JM-F6138-00-00 ......LABEL, CAUTION......LABEL, CAUTION
-
48JM-K7761-00-00 ......LABEL, WARNING 1......LABEL, WARNING 1
-
58JM-K716F-00-00 ......REFLECTOR 2......REFLECTOR 2
-
68JM-K716E-00-00 ......REFLECTOR 1......REFLECTOR 1
-
78JM-K711B-10-00 ...GRAPHIC 2...GRAPHIC 2
-
88JM-K711A-10-00 ...GRAPHIC 1...GRAPHIC 1
-
98JM-K711D-10-00 ...GRAPHIC 4...GRAPHIC 4
-
108JM-K711C-10-00 ...GRAPHIC 3...GRAPHIC 3
-
115KM-2175B-00-00 ......TUNING FORK MARK......TUNING FORK MARK
-
128JM-H3611-00-00 ...PANEL, METER...PANEL, METER
-
138JM-K7211-00-00 WINDSHIELDWINDSHIELD
-
148JM-RA506-00-00 RIVET, 1RIVET, 1
-
158JM-RAF00-00-00 O-RING, 1O-RING, 1
-
168JM-K7171-00-00 BODY, LATCH 1BODY, LATCH 1
-
178JM-RA207-00-00 SCREW, 10-32X5/8SCREW, 10-32X5/8
-
188JM-RA316-00-00 NUT, SPRING 10-32NUT, SPRING 10-32
-
198JM-K7221-00-00 BRACKET, WINDSHIELDBRACKET, WINDSHIELD
-
208JP-RA357-00-00 NUT, FLANGE LOCKING 1/4-20NUT, FLANGE LOCKING 1/4-20
-
218JM-RA410-00-00 WASHER, PLAIN 0.25WASHER, PLAIN 0.25
-
228JM-RA121-00-00 BOLT, FLANGE 1/4-20X5/8BOLT, FLANGE 1/4-20X5/8
-
238JM-E417F-00-00 LABEL, CAUTIONLABEL, CAUTION
-
248KC-F817K-00-00 LABEL,FUELLABEL,FUEL
