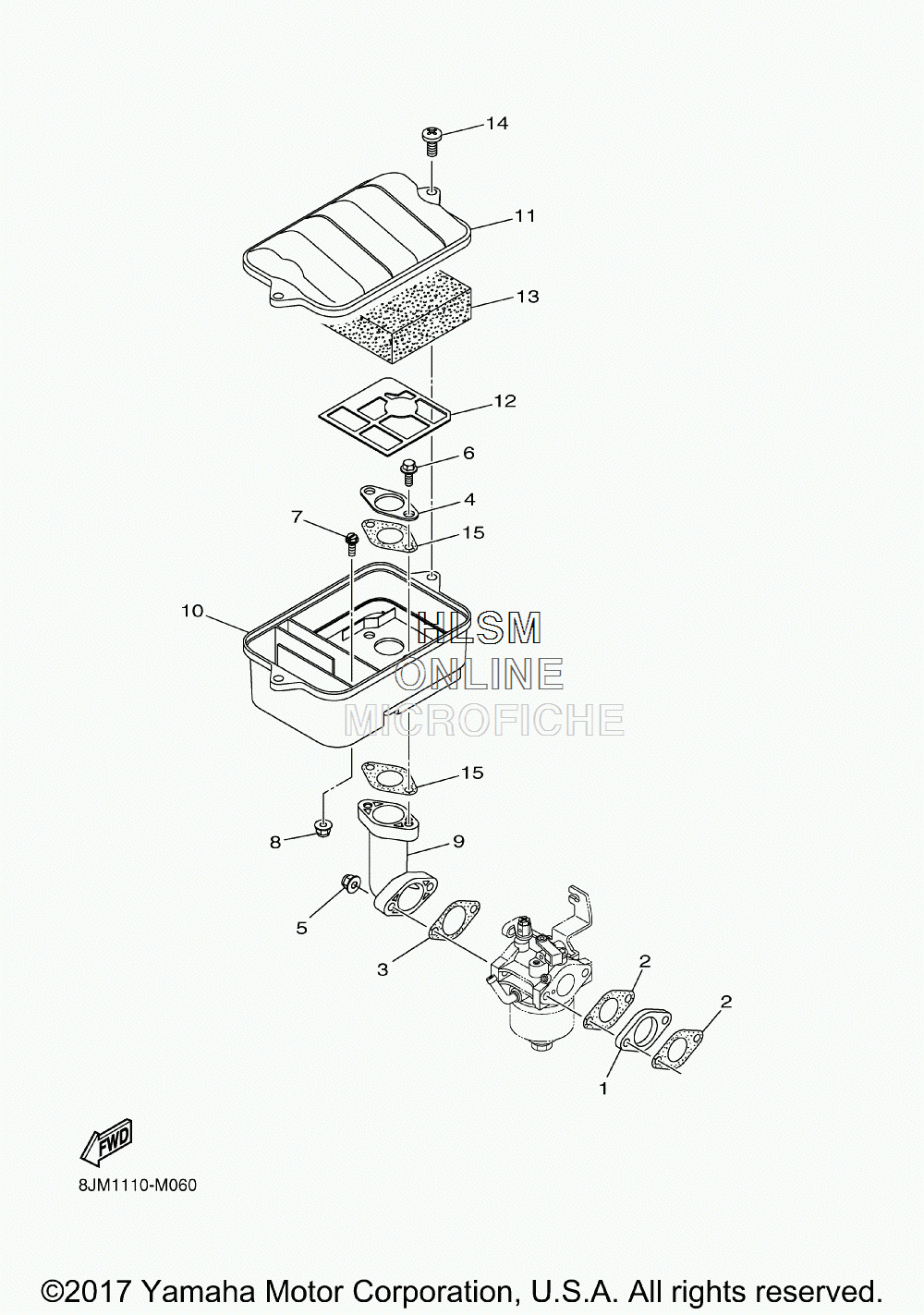

INTAKE W/ AIR BOX ASSY - FUEL PUMP для Yamaha SRX 120 - 2017 года выпуска`
-
№АртикулНазвание
-
17CL-E3596-00-00 JOINT, CARBURETOR 2JOINT, CARBURETOR 2
-
27CL-E3557-01-00 GASKETGASKET
-
37CN-E3567-01-00 GASKETGASKET
-
47CN-E4477-00-00 PLATEPLATE
-
595702-06500-00 NUT, FLANGENUT, FLANGE
-
68JM-RA200-00-00 SCREW,M6-16SCREW,M6-16
-
78JM-RA102-00-00 BOLT, FLANGE M8-1.25X25BOLT, FLANGE M8-1.25X25
-
88JM-RA301-00-00 NUT, SELF-LOCKING M8-1.25NUT, SELF-LOCKING M8-1.25
-
98JM-E3536-00-00 JOINT, CARBURETORJOINT, CARBURETOR
-
107CN-E4411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
117CN-E4412-00-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
127CN-E4468-01-00 PLATE, ELEMENT FITTINGPLATE, ELEMENT FITTING
-
137CN-E4451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
1490154-06823-00 SCREW, BINDINGSCREW, BINDING
-
157CN-E3567-01-00 GASKETGASKET
