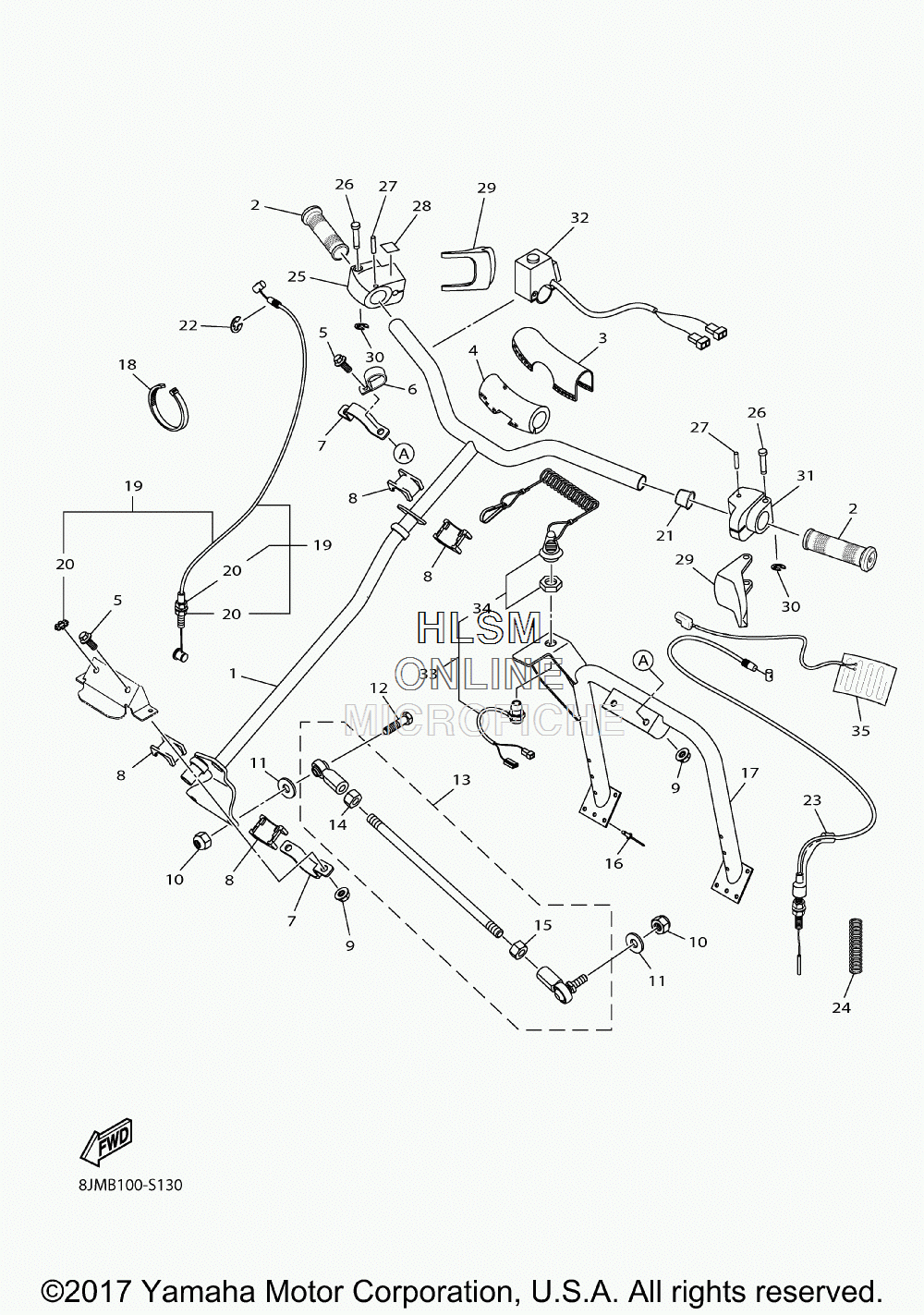

HANDLEBAR ASSY W/ STEERING ASSY для Yamaha SRX 120 - 2017 года выпуска`
-
№АртикулНазвание
-
18JM-F3811-00-00 COLUMN, STEERINGCOLUMN, STEERING
-
28JM-F6241-10-00 GRIPGRIP
-
38JM-F3818-00-00 COVER, STEERINGCOVER, STEERING
-
48JM-F3817-00-00 PAD, STEERINGPAD, STEERING
-
58JM-RA106-00-00 BOLT, FLANGE 1/4-20X0.75BOLT, FLANGE 1/4-20X0.75
-
68JM-RAB01-10-00 CLAMP, 2CLAMP, 2
-
78JM-F3872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
88JM-F3812-00-00 BEARING, STEERINGBEARING, STEERING
-
98JP-RA357-00-00 NUT, FLANGE LOCKING 1/4-20NUT, FLANGE LOCKING 1/4-20
-
108JM-RA306-00-00 NUT, SELF-LOCKING 5/16-24NUT, SELF-LOCKING 5/16-24
-
118JM-RA403-00-00 WASHER, PLAIN 516WASHER, PLAIN 516
-
128JM-RA113-00-00 BOLT, HEXAGON 5/16-24X1.5BOLT, HEXAGON 5/16-24X1.5
-
138JM-F3830-00-00 TIE ROD ASSYTIE ROD ASSY
-
148JM-RA307-00-00 ...NUT, HEXAGON 5/16-24 LEFT THREAD...NUT, HEXAGON 5/16-24 LEFT THREAD
-
158JM-RA308-00-00 ...NUT, HEXAGON 5/16-24 RIGHT THREAD...NUT, HEXAGON 5/16-24 RIGHT THREAD
-
168JP-RA514-00-00 RIVET, 5RIVET, 5
-
178JM-F3870-00-00 STEERING GATE COMP.STEERING GATE COMP.
-
188JM-RAB01-00-00 CLAMP, 2 (8 INCH)CLAMP, 2 (8 INCH)
-
198JM-F6311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
208JM-RA407-00-00 ...WASHER, TOOTHED LOCK 1/4...WASHER, TOOTHED LOCK 1/4
-
218JR-F3856-10-00 NUTNUT
-
228JM-RAH02-00-00 CIRCLIP, 3CIRCLIP, 3
-
238JM-F6340-00-00 CABLE, BRAKECABLE, BRAKE
-
248JM-F5735-00-00 SPRING, RETURN 1SPRING, RETURN 1
-
258JM-H2921-00-00 HOLDER, LEVER 2HOLDER, LEVER 2
-
268JM-RAY07-00-00 PIN, 3PIN, 3
-
278JM-RAY08-00-00 PIN, 4PIN, 4
-
288JM-H2108-00-00 LABELLABEL
-
298JM-H3912-00-00 LEVER 1LEVER 1
-
308JM-RAH02-00-00 CIRCLIP, 3CIRCLIP, 3
-
318JM-H2911-00-00 HOLDER, LEVER 1HOLDER, LEVER 1
-
328JM-H2575-00-00 ENGINE STOP SWITCH ASSYENGINE STOP SWITCH ASSY
-
338JM-H2551-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
348JM-H2552-00-00 ...CAP, SWITCH...CAP, SWITCH
-
358JM-F626A-00-00 GRIP, WARMERGRIP, WARMER
