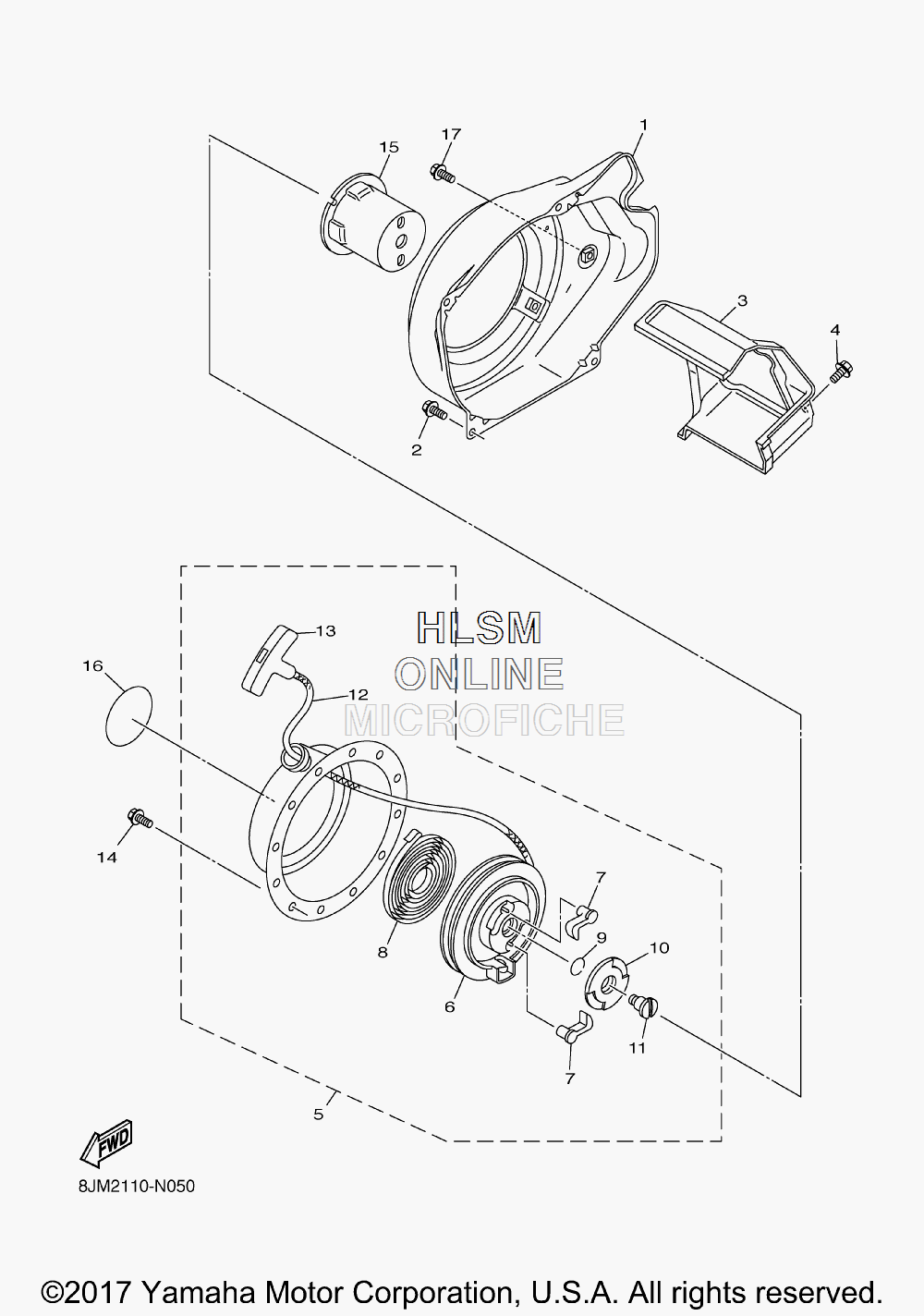

AIR SHROUD W/ RECOIL STARTER для Yamaha SRX 120 - 2017 года выпуска`
-
№АртикулНазвание
-
17CN-E2621-00-00 CASE, FANCASE, FAN
-
295802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
37CN-E2651-01-00 AIR SHROUD, CYLINDER 1AIR SHROUD, CYLINDER 1
-
495822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
57CN-E5710-70-00 STARTER ASSYSTARTER ASSY
-
67CN-E5714-03-00 ...DRUM, SHEAVE...DRUM, SHEAVE
-
77CN-E5741-01-00 ...PAWL, DRIVE...PAWL, DRIVE
-
87CN-E5713-00-00 ...SPRING, STARTER...SPRING, STARTER
-
97CN-E5715-00-00 ...SPRING, FRICTION...SPRING, FRICTION
-
107CN-E5716-01-00 ...PLATE, DRIVE...PLATE, DRIVE
-
117CN-E5793-00-00 ...SCREW...SCREW
-
127CN-E5751-70-00 ...WIRE, STARTER...WIRE, STARTER
-
137CN-E5755-00-00 ...HANDLE, STARTER...HANDLE, STARTER
-
1495802-06008-00 BOLT, FLANGEBOLT, FLANGE
-
157CN-E5723-01-00 PULLEY, STARTERPULLEY, STARTER
-
167CL-E2629-10-00 EMBLEMEMBLEM
-
1795802-06012-00 BOLT, FLANGEBOLT, FLANGE
