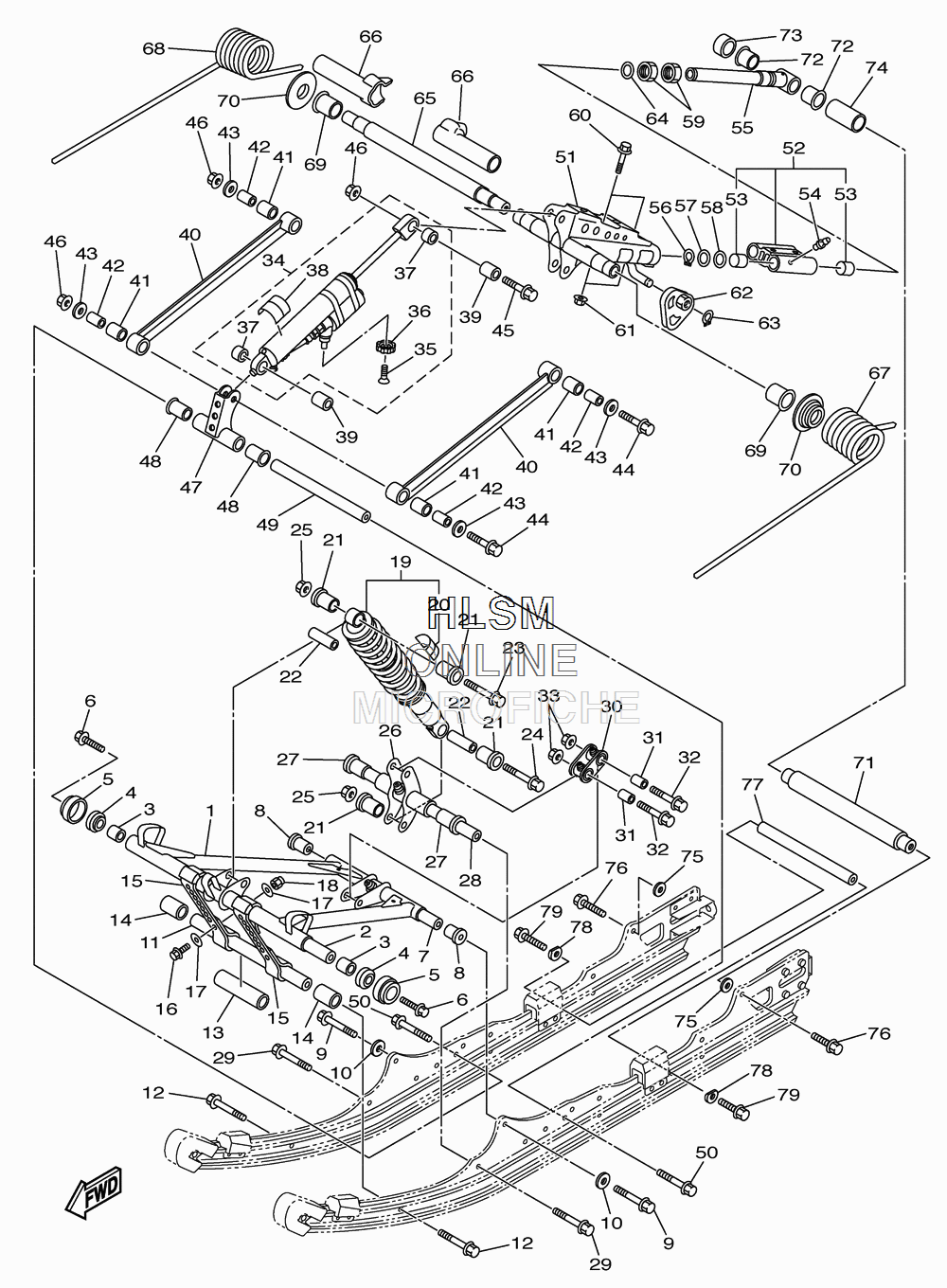

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2 для Yamaha RS VENTURE GT - 2011 года выпуска`
-
№АртикулНазвание
-
18HF-47331-00-00 ARM, PIVOT 1ARM, PIVOT 1
-
28HF-47465-00-00 SHAFT 1SHAFT 1
-
390383-23001-00 BUSH, FORMEDBUSH, FORMED
-
493108-37011-00 OIL SEALOIL SEAL
-
58HF-47341-00-00 SPACERSPACER
-
690109-10030-00 BOLTBOLT
-
78ES-47486-00-00 SHAFT 4SHAFT 4
-
890387-10022-00 COLLARCOLLAR
-
990105-10329-00 BOLT, FLANGEBOLT, FLANGE
-
1090201-10071-00 WASHER, PLATEWASHER, PLATE
-
118ES-47485-00-00 SHAFT 3SHAFT 3
-
1290105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
1390387-19002-00 COLLARCOLLAR
-
1490387-19001-00 COLLARCOLLAR
-
158HF-47495-00-00 STOPPER 1STOPPER 1
-
1697002-06025-00 BOLTBOLT
-
1790201-06081-00 WASHER, PLATEWASHER, PLATE
-
1895702-06300-00 NUT, NYLONNUT, NYLON
-
198HF-47481-00-00 SHOCK ABSORBER 2SHOCK ABSORBER 2
-
204AA-22259-70-00 LABEL, WARNINGLABEL, WARNING
-
2190381-14101-00 BUSH, SOLIDBUSH, SOLID
-
2290387-105G5-00 COLLARCOLLAR
-
2395812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
2490101-10738-00 BOLTBOLT
-
2595602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
268HF-47349-01-00 BRACKET, ARM PIVOTBRACKET, ARM PIVOT
-
2790386-20001-00 BUSHBUSH
-
288GN-47487-00-00 SHAFT 5SHAFT 5
-
2990105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
308FK-47416-01-00 BRACKET 2BRACKET 2
-
3190387-10024-00 COLLARCOLLAR
-
3295812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
3395602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
348HF-47480-01-00 SHOCK ABSORBERSHOCK ABSORBER
-
3590142-03N01-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
365EA-22464-00-00 KNOB (COMP)KNOB (COMP)
-
3790384-18190-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
384AA-22259-70-00 LABEL, WARNINGLABEL, WARNING
-
3990387-10023-00 COLLARCOLLAR
-
408HF-47494-00-00 ROD, RELAYROD, RELAY
-
4190386-16001-00 BUSHBUSH
-
4290387-101A1-00 COLLARCOLLAR
-
4390201-10043-00 WASHER, PLATEWASHER, PLATE
-
4495812-10090-00 BOLT, FLANGEBOLT, FLANGE
-
4595812-10040-00 BOLT, FLANGEBOLT, FLANGE
-
4695602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
478FK-47349-10-00 BRACKET, ARM PIVOTBRACKET, ARM PIVOT
-
4890386-20001-00 BUSHBUSH
-
498ES-47487-00-00 SHAFT 5SHAFT 5
-
5090105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
518HF-47332-00-00 ARM, PIVOT 2ARM, PIVOT 2
-
528ES-4745D-00-00 STOPPER, CONT. 1STOPPER, CONT. 1
-
5390380-24001-00 BUSH, SOLIDBUSH, SOLID
-
5493700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
558HF-4745A-00-00 ROD, CONTROL 1ROD, CONTROL 1
-
5693410-24092-00 CIRCLIPCIRCLIP
-
5790201-24015-00 WASHER, PLATEWASHER, PLATE
-
5890202-25001-00 WASHER, PLATEWASHER, PLATE
-
598ES-48142-00-00 STOPPER, ADJUSTING NUTSTOPPER, ADJUSTING NUT
-
6095812-10055-00 BOLT, FLANGEBOLT, FLANGE
-
6195602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
628ES-47447-00-00 HOOK 2HOOK 2
-
6399009-14400-00 CIRCLIPCIRCLIP
-
6490202-25002-00 WASHER, PLATEWASHER, PLATE
-
658FM-47475-01-00 SHAFT 2SHAFT 2
-
668HF-47445-00-00 PROTECTORPROTECTOR
-
678HF-47473-00-00 SPRING, REAR 1 (K=2200NMM/DEG)SPRING, REAR 1 (K=2200NMM/DEG)
-
688HF-47474-00-00 SPRING, REAR 2 (K=2200NMM/DEG)SPRING, REAR 2 (K=2200NMM/DEG)
-
6990381-28108-00 BUSH, SOLIDBUSH, SOLID
-
708ES-47467-00-00 PLATE, GUIDEPLATE, GUIDE
-
718HF-47337-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
7290386-25001-00 BUSHBUSH
-
7390387-26002-00 COLLARCOLLAR
-
7490387-26003-00 COLLARCOLLAR
-
7590201-10028-00 WASHER, PLATEWASHER, PLATE
-
7695817-10030-00 BOLT, FLANGEBOLT, FLANGE
-
778GL-47486-00-00 SHAFT 4SHAFT 4
-
788GL-47341-00-00 SPACERSPACER
-
7990105-10237-00 BOLT, FLANGEBOLT, FLANGE
