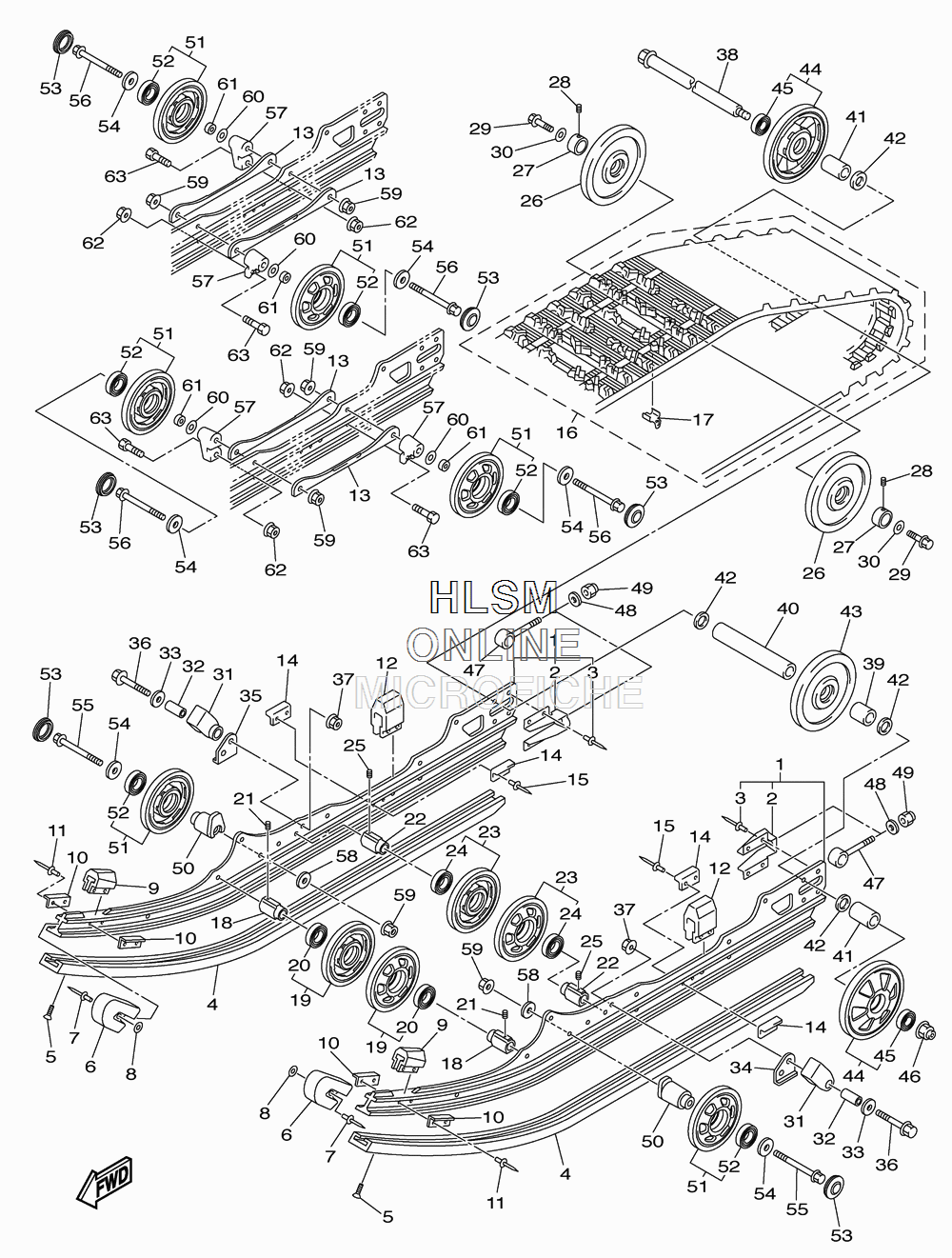

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha RS VENTURE GT - 2011 года выпуска`
-
№АртикулНазвание
-
18HF-W4741-00-00 FRAME, SLIDINGFRAME, SLIDING
-
28DM-4741B-00-00 BRACKETBRACKET
-
38V0-47468-00-00 RIVETRIVET
-
48ET-47421-00-00 SLIDE RUNNER BLK 144SLIDE RUNNER BLK 144
-
590151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
68ED-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
790267-48194-00 RIVET, BLIND (4.8X28 SILVER)RIVET, BLIND (4.8X28 SILVER)
-
890201-047R8-00 WASHER, PLATEWASHER, PLATE
-
98ES-47456-00-00 DAMPER 1DAMPER 1
-
108K2-47458-01-00 PLATE, DAMPERPLATE, DAMPER
-
1190267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
128FP-47457-00-00 DAMPER 2DAMPER 2
-
138HF-4741C-00-00 FRAME, SLIDING CFRAME, SLIDING C
-
148AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1590267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
168ET-47110-20-00 TRACK ASSYTRACK ASSY
-
178FA-47115-09-00 METAL, SLIDEMETAL, SLIDE
-
188ES-47319-01-00 COLLARCOLLAR
-
198HF-47310-10-00 WHEEL BLK 130MMWHEEL BLK 130MM
-
2093306-00507-00 BEARINGBEARING
-
2190113-06039-00 BOLT, SETBOLT, SET
-
228ES-47319-01-00 COLLARCOLLAR
-
238HF-47310-10-00 WHEEL BLK 130MMWHEEL BLK 130MM
-
2493306-00507-00 BEARINGBEARING
-
2590113-06039-00 BOLT, SETBOLT, SET
-
268CR-47550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
278ES-47365-00-00 COLLAR 1COLLAR 1
-
2890113-06039-00 BOLT, SETBOLT, SET
-
2990109-10030-00 BOLTBOLT
-
3090201-10039-00 WASHER, PLATEWASHER, PLATE
-
318HF-47446-00-00 HOOK 1HOOK 1
-
3290387-10081-00 COLLARCOLLAR
-
3390201-100S0-00 WASHER, PLATEWASHER, PLATE
-
348HF-47374-00-00 WASHER 1WASHER 1
-
358HF-47375-00-00 WASHER 2WASHER 2
-
3695812-10055-00 BOLT, FLANGEBOLT, FLANGE
-
3795602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
388L8-47520-10-00 REAR AXLE COMP.REAR AXLE COMP.
-
3990387-20015-00 COLLARCOLLAR
-
4090387-20016-00 COLLARCOLLAR
-
4190387-20019-00 COLLARCOLLAR
-
4290201-20022-00 WASHER, PLATEWASHER, PLATE
-
438CR-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
448HF-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
4593306-00444-00 BEARINGBEARING
-
4695602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
478DM-47479-00-00 COLLAR 3COLLAR 3
-
4892902-10600-00 WASHER, PLATEWASHER, PLATE
-
4995702-10300-00 NUT, NYLONNUT, NYLON
-
508ES-47419-00-00 BRACKET 7BRACKET 7
-
518HF-47310-10-00 WHEEL BLK 130MMWHEEL BLK 130MM
-
5293306-00507-00 BEARINGBEARING
-
538HF-47317-00-00 CAP, WHEELCAP, WHEEL
-
5490201-10038-00 WASHER, PLATEWASHER, PLATE
-
5595812-10080-00 BOLT, FLANGEBOLT, FLANGE
-
5690105-10150-00 BOLT, FLANGEBOLT, FLANGE
-
578CM-47419-30-00 BRACKET 7BRACKET 7
-
5890201-106F2-00 WASHER, PLATEWASHER, PLATE
-
5995602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
6090201-100S0-00 WASHER, PLATEWASHER, PLATE
-
6190387-10031-00 COLLARCOLLAR
-
6295602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
6390101-08063-00 BOLTBOLT
