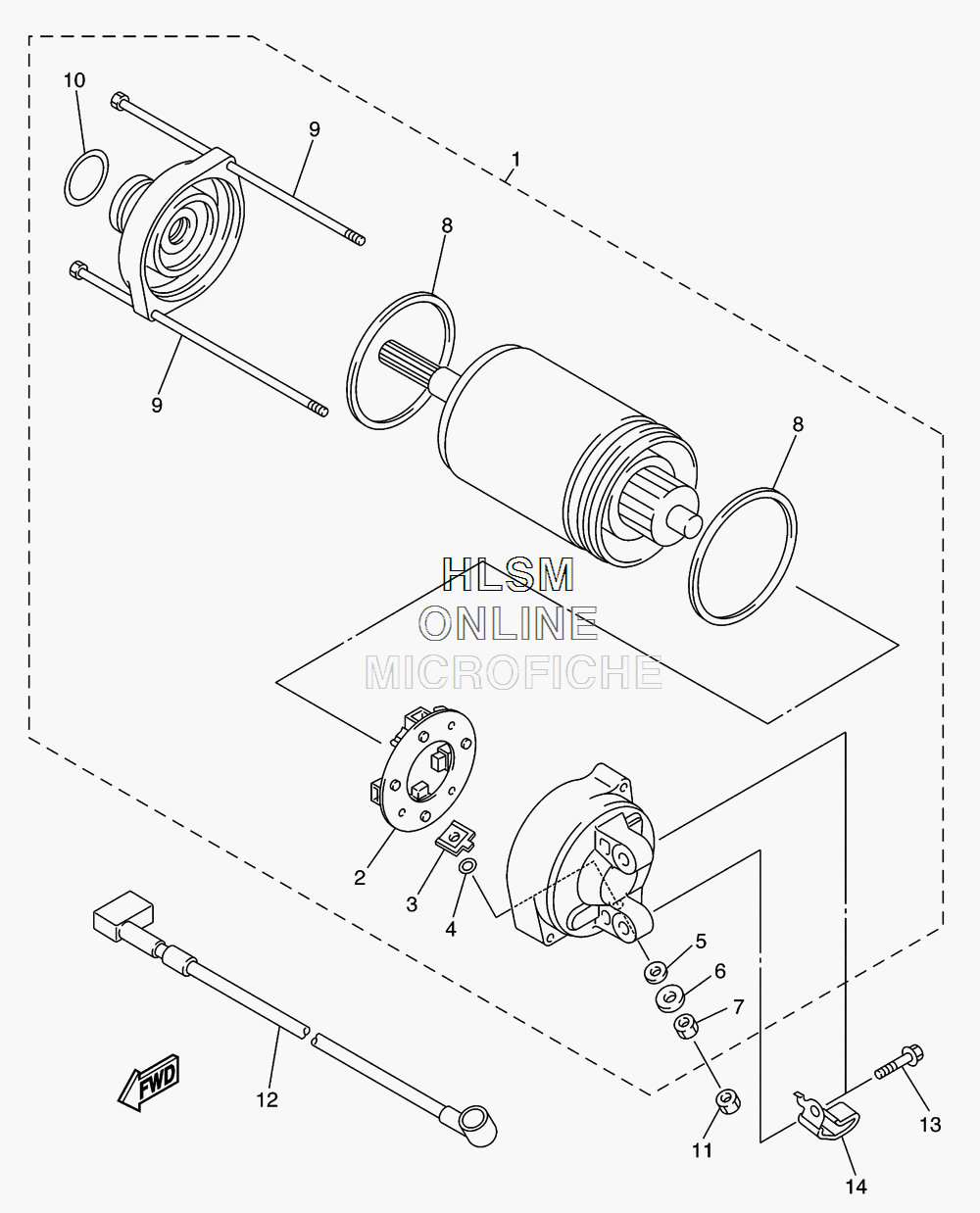

STARTER - ELECTRICAL STARTER ASSY для Yamaha RS VENTURE GT - 2011 года выпуска`
-
№АртикулНазвание
-
18GL-81890-00-00 MOTOR ASSYMOTOR ASSY
-
22S3-81801-00-00 BRUSH SETBRUSH SET
-
32S3-8182G-00-00 BUSH, TERMINALBUSH, TERMINAL
-
493210-06001-00 O-RINGO-RING
-
58FA-8181L-00-00 WASHER, PLAINWASHER, PLAIN
-
61D7-81835-00-00 WASHERWASHER
-
795302-06700-00 NUTNUT
-
85PX-81861-00-00 GASKETGASKET
-
98ES-81846-01-00 SCREWSCREW
-
1093210-24235-00 O-RINGO-RING
-
1195302-06700-00 NUTNUT
-
128ES-8183G-00-00 CORD COMP.CORD COMP.
-
1395812-08030-00 BOLT, FLANGEBOLT, FLANGE
-
1490465-08030-00 CLAMPCLAMP
