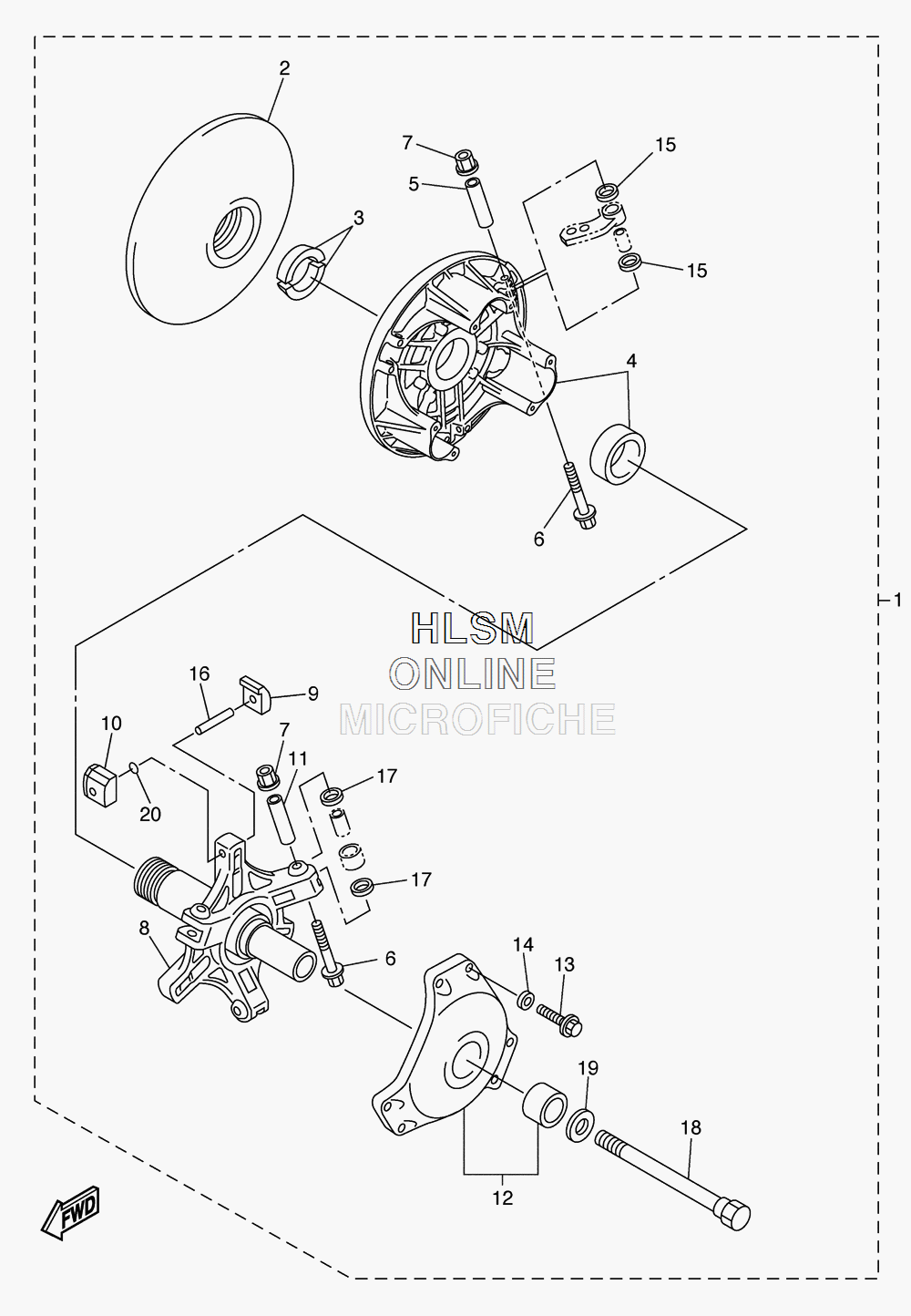

CLUTCH - REPAIR KIT (OPTION) для Yamaha RS VENTURE GT - 2011 года выпуска`
-
№АртикулНазвание
-
18ES-W176G-11-00 CLUTCH REPAIR KITCLUTCH REPAIR KIT
-
28FA-17611-01-00 SHEAVE, PRIMARY FIXEDSHEAVE, PRIMARY FIXED
-
38V0-17639-00-00 STOPPERSTOPPER
-
48FP-17620-00-00 PRIMARY SLIDING SHEAVE COMP.PRIMARY SLIDING SHEAVE COMP.
-
590387-0514T-00 COLLARCOLLAR
-
690105-05644-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
795607-05200-00 NUT, U FLANGENUT, U FLANGE
-
88ES-17640-01-00 SPIDER COMPLETESPIDER COMPLETE
-
98BW-17653-00-00 SLIDERSLIDER
-
108ES-17653-00-00 SLIDERSLIDER
-
1190387-0514U-00 COLLARCOLLAR
-
128DF-17630-00-00 PRIMARY SHEAVE CAP COMP.PRIMARY SHEAVE CAP COMP.
-
1397017-06030-00 BOLTBOLT
-
1492907-06600-00 WASHER, PLATEWASHER, PLATE
-
1590202-08204-00 WASHER, PLATEWASHER, PLATE
-
1691609-50032-00 PIN, SPRINGPIN, SPRING
-
1790202-09227-00 WASHER, PLATEWASHER, PLATE
-
188V0-17647-00-00 BOLT (L=156.5MM)BOLT (L=156.5MM)
-
1992907-16100-00 WASHERWASHER
-
208ES-17655-00-00 DAMPER, SLIDERDAMPER, SLIDER
