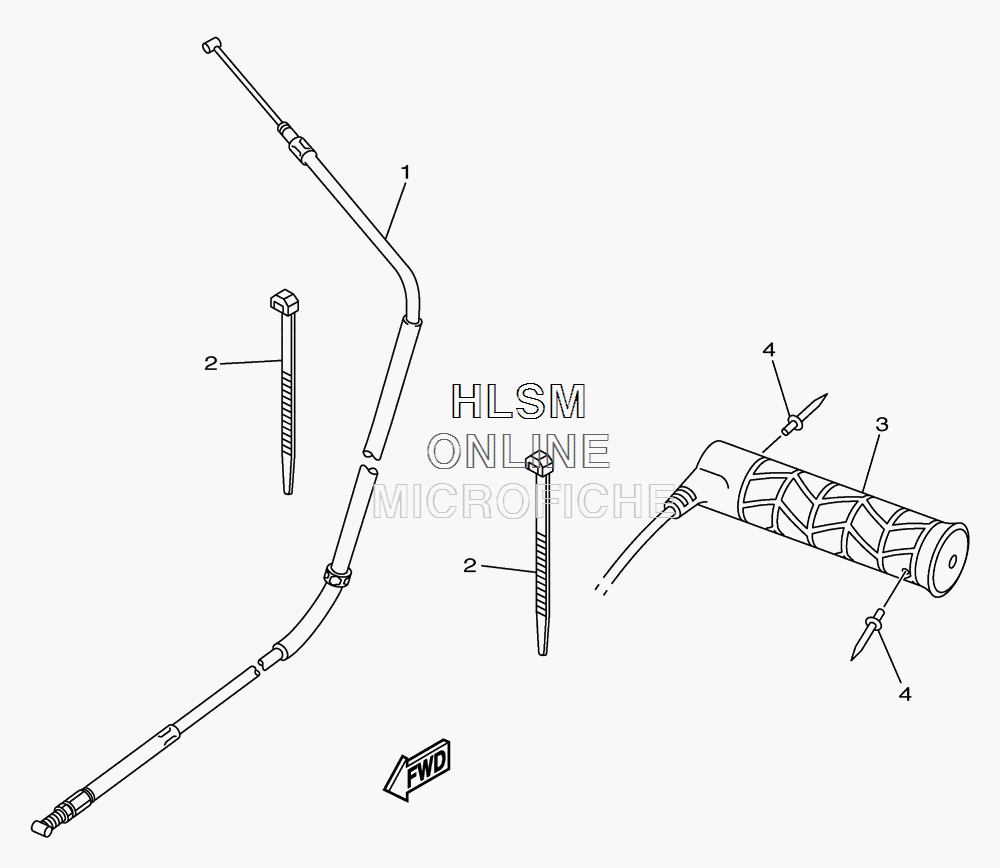

HANDLEBAR - CABLES AND GRIPS для Yamaha RS VENTURE GT - 2011 года выпуска`
-
№АртикулНазвание
-
18HF-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
290464-13073-00 CLAMPCLAMP
-
38DM-26240-02-00 GRIP ASSYGRIP ASSY
-
490267-48014-00 RIVET, BLIND (4.8X15.1 BLACK)RIVET, BLIND (4.8X15.1 BLACK)
