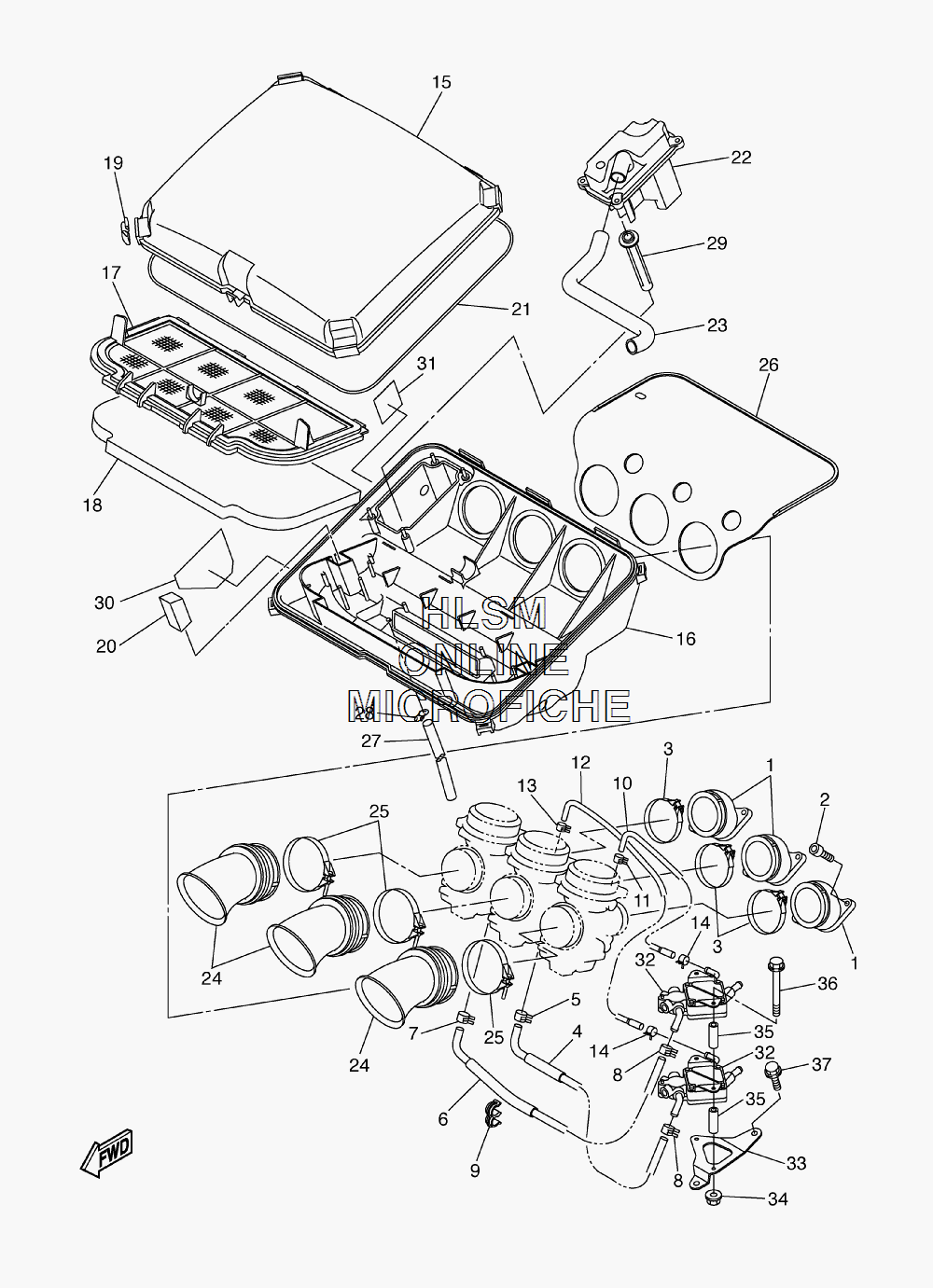

INTAKE W/ AIR BOX ASSY - FUEL PUMP для Yamaha VECTOR GT - 2007 года выпуска`
-
№АртикулНазвание
-
18ES-13586-10-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
291317-06020-00 BOLTBOLT
-
390450-57007-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
48ES-14294-00-00 HOSEHOSE
-
590467-11028-00 CLIP, SCISSORCLIP, SCISSOR
-
68ES-14298-00-00 PIPEPIPE
-
790467-11028-00 CLIP, SCISSORCLIP, SCISSOR
-
890467-11028-00 CLIP, SCISSORCLIP, SCISSOR
-
990464-13194-00 CLAMPCLAMP
-
108ES-13895-00-00 HOSE, AIRHOSE, AIR
-
1190467-08092-00 CLIP, SCISSORCLIP, SCISSOR
-
128ES-13892-00-00 HOSE, AIR 2HOSE, AIR 2
-
1390467-08092-00 CLIP, SCISSORCLIP, SCISSOR
-
1490467-09026-00 CLIP, SCISSORCLIP, SCISSOR
-
158ES-14431-00-00 SILENCER, INTAKE 1SILENCER, INTAKE 1
-
168ES-14441-00-00 SILENCER, INTAKE 2SILENCER, INTAKE 2
-
178ES-14472-00-00 PLATE, ELEMENTPLATE, ELEMENT
-
188ES-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
198FA-14436-00-00 HOOKHOOK
-
208ES-14425-00-00 DAMPER 1DAMPER 1
-
218ES-14452-00-00 SEALSEAL
-
228ES-1441A-00-00 COVER, CLEANER CASE 1COVER, CLEANER CASE 1
-
238ES-14419-00-00 PIPEPIPE
-
248ES-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
2590450-67001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
268ES-14283-00-00 COVER, CARBURETOR 1COVER, CARBURETOR 1
-
2790445-11M52-00 HOSE (L150)HOSE (L150)
-
2890467-10041-00 CLIP, SCISSORCLIP, SCISSOR
-
298ES-14148-00-00 PIPEPIPE
-
308ES-14488-00-00 LABEL, CAUTIONLABEL, CAUTION
-
318ES-14427-00-00 LABEL, INSTRUCTIONLABEL, INSTRUCTION
-
328FA-13910-00-00 FUEL PUMP ASSYFUEL PUMP ASSY
-
338FA-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
3495707-06500-00 NUT, FLANGENUT, FLANGE
-
3590387-065V0-00 COLLARCOLLAR
-
3695027-06085-00 BOLT, FLANGEBOLT, FLANGE
-
3795827-06016-00 BOLT, FLANGEBOLT, FLANGE
