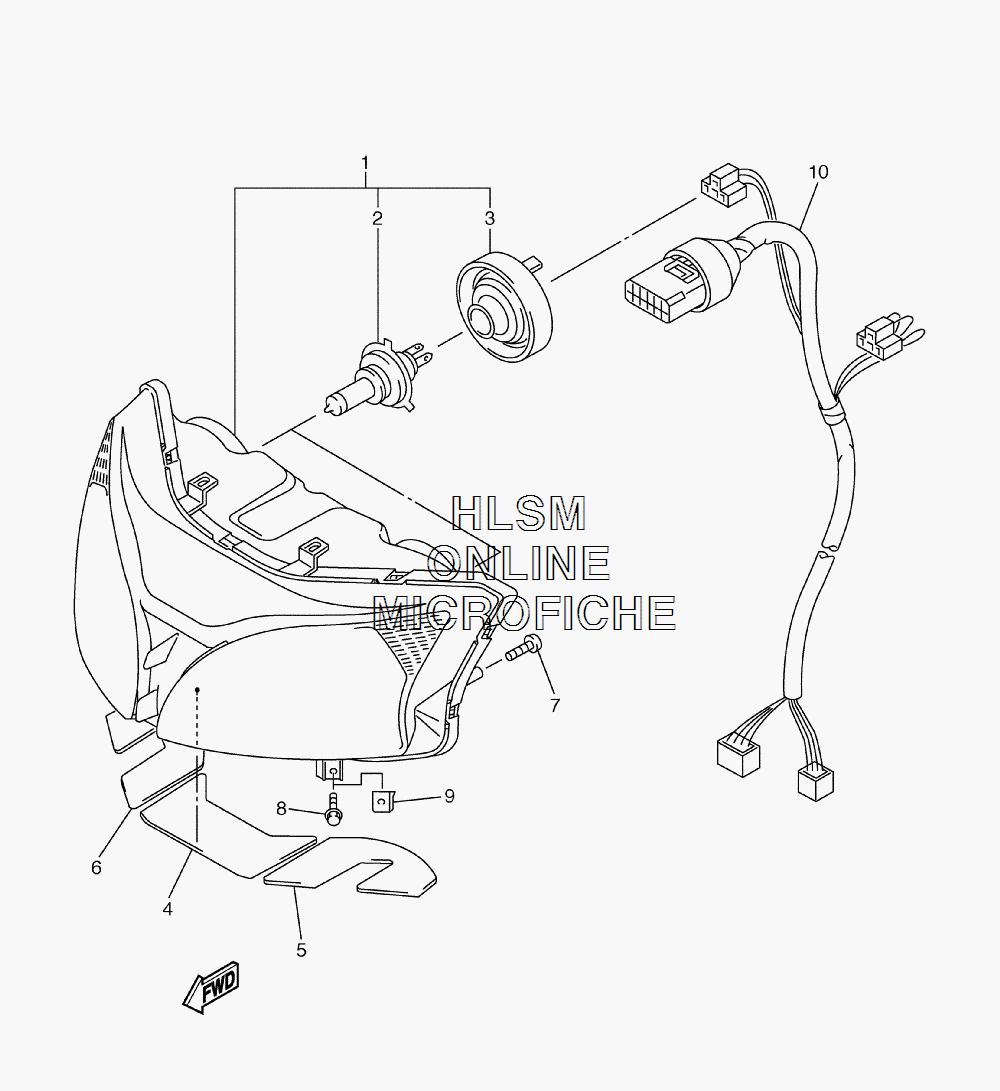

ELECTRICAL - HEADLIGHT ASSY для Yamaha VECTOR GT - 2007 года выпуска`
-
№АртикулНазвание
-
18FA-84310-10-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
28G9-84314-00-00 ...BULB (12V-60/55W) (H4) HALOGEN...BULB (12V-60/55W) (H4) HALOGEN
-
38EK-84397-00-00 ...COVER, SOCKET...COVER, SOCKET
-
48EK-8399N-00-00 INSULATOR 1INSULATOR 1
-
58EK-8368L-00-00 INSULATOR 2INSULATOR 2
-
68EK-8368M-00-00 INSULATOR 3INSULATOR 3
-
797707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
895807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
990183-06100-00 NUT, SPRINGNUT, SPRING
-
108ES-84359-10-00 CORD, HEADLIGHTCORD, HEADLIGHT
