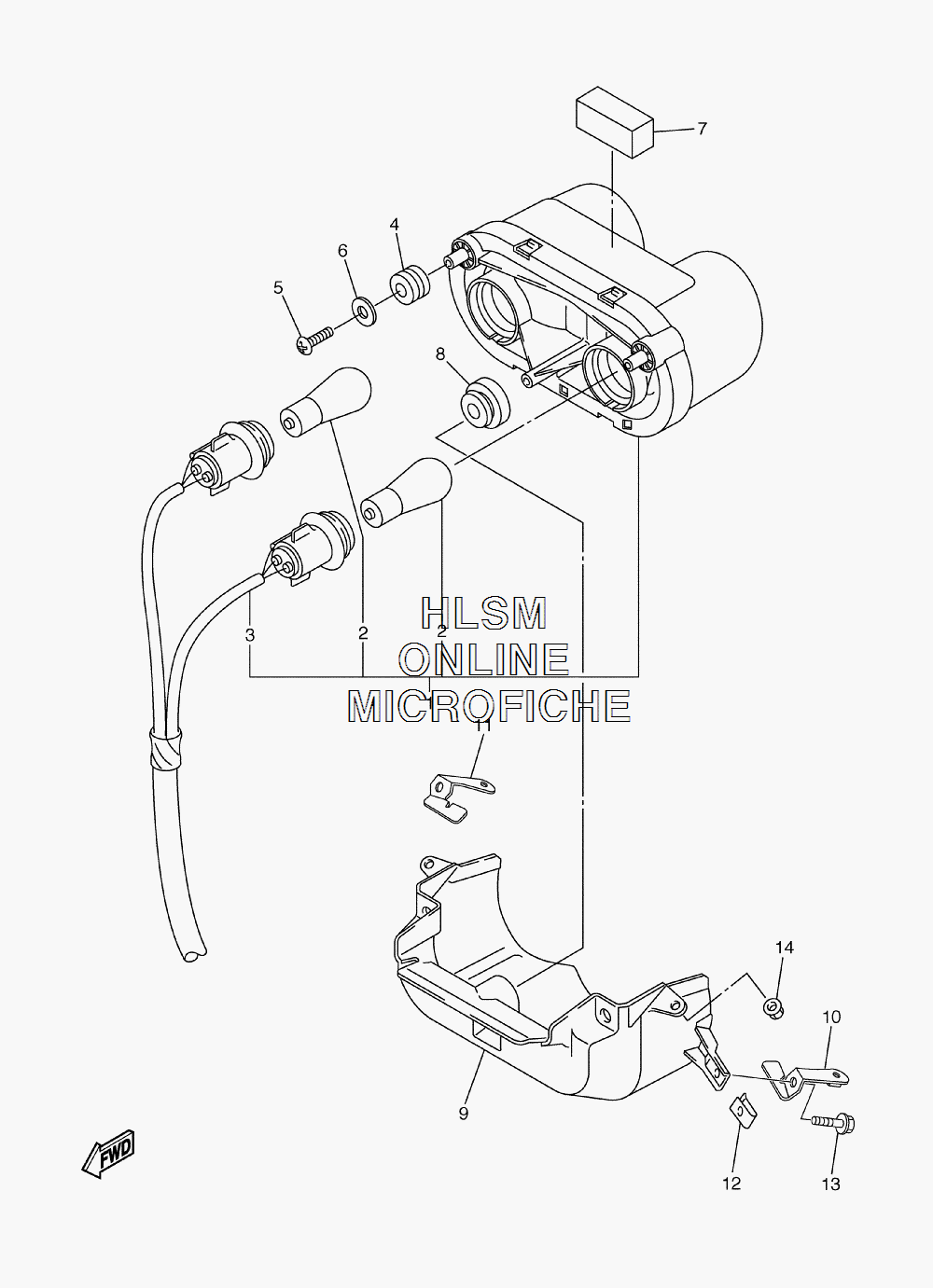

ELECTRICAL - TAILLIGHT ASSY для Yamaha VECTOR GT - 2007 года выпуска
-
№АртикулНазвание
-
15JJ-84710-11-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
21A2-84714-41-00 ...BULB (12V-21/5W)...BULB (12V-21/5W)
-
35JJ-84735-00-00 ...CORD ASSY...CORD ASSY
-
44XV-83513-00-00 DAMPERDAMPER
-
597707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
690201-05725-00 WASHER, PLATEWASHER, PLATE
-
75JJ-21747-00-00 DAMPERDAMPER
-
890480-18171-00 GROMMETGROMMET
-
98FA-2117E-00-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
108ES-77531-00-00 BRACKET, FRONTBRACKET, FRONT
-
118ES-77532-00-00 BRACKET, FRONT (R.H)BRACKET, FRONT (R.H)
-
1290183-06053-00 NUT, SPRINGNUT, SPRING
-
1395807-06014-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1495607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
