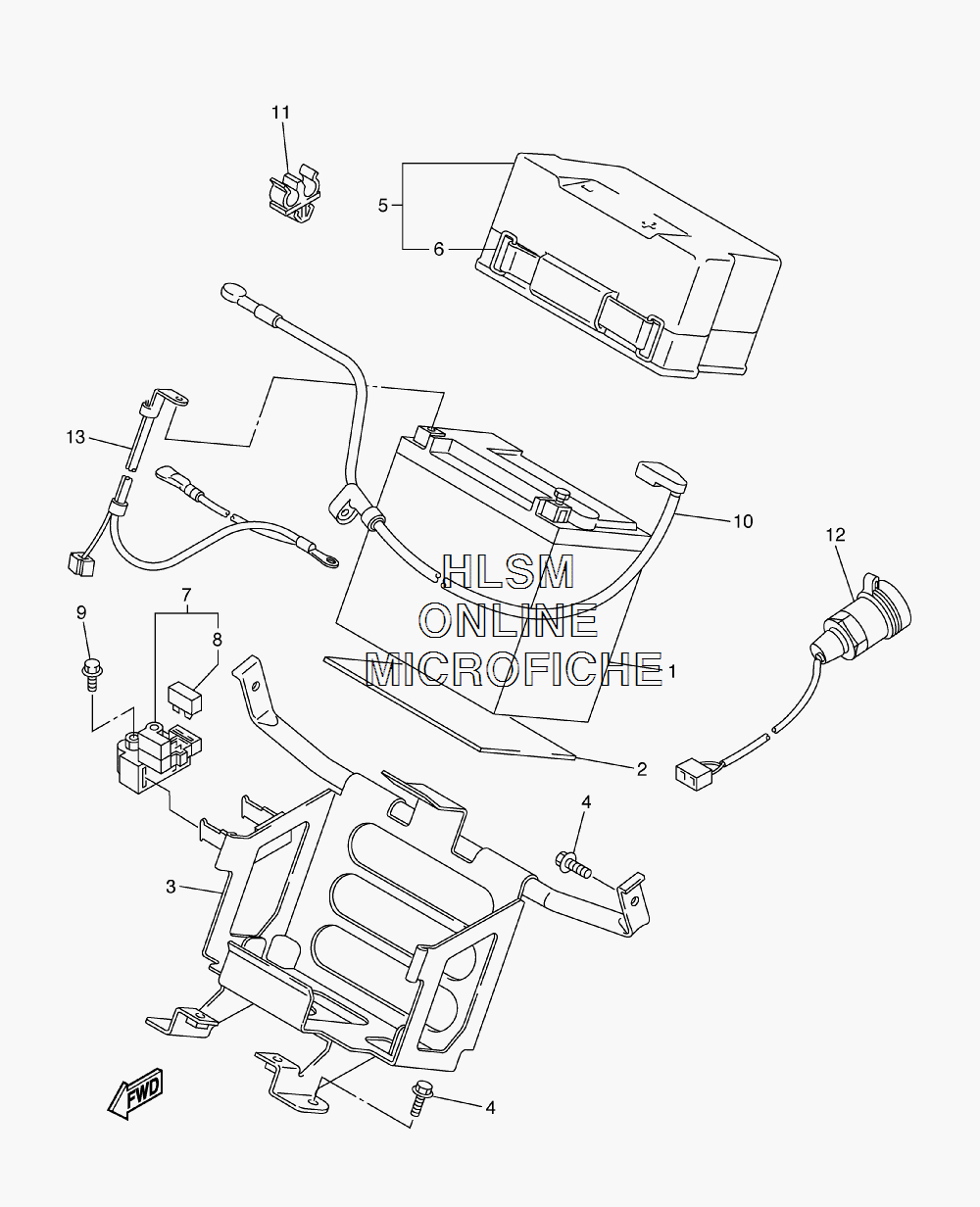

ELECTRICAL - BATTERY ASSY для Yamaha VECTOR GT - 2007 года выпуска`
-
№АртикулНазвание
-
14SH-82100-22-00 BATTERY ASSY (YUASA YTX20L-BS)BATTERY ASSY (YUASA YTX20L-BS)
-
28FA-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
38ES-2199G-00-00 BRACKET, BATTERYBRACKET, BATTERY
-
495827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
58FA-82129-00-00 COVER, BATTERYCOVER, BATTERY
-
68DM-82131-10-00 ...BAND, BATTERY...BAND, BATTERY
-
74DN-81940-12-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
81AE-82151-00-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
995027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
108FA-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
1190464-08126-00 CLAMPCLAMP
-
128FP-8254B-00-00 TERMINAL COMP.TERMINAL COMP.
-
138ES-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
