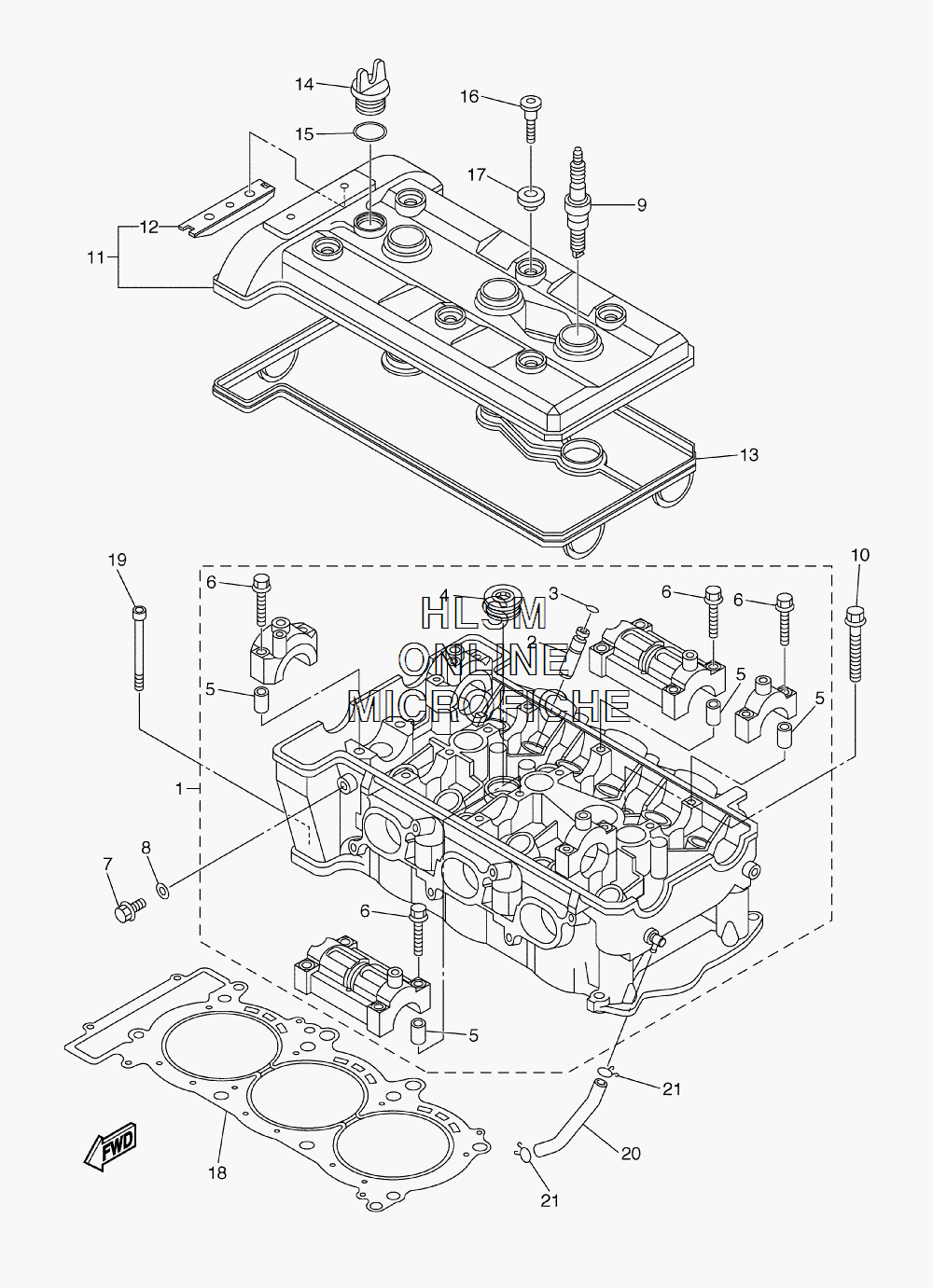

CYLINDER W/ HEAD ASSY для Yamaha VECTOR GT - 2007 года выпуска
-
№АртикулНазвание
-
18ES-11101-01-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
25JW-11133-10-00 ...GUIDE, INTAKE VALVE...GUIDE, INTAKE VALVE
-
393440-09141-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
490340-27001-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
591808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
690105-06026-00 ...BOLT, WASHER BASED...BOLT, WASHER BASED
-
795027-08012-00 BOLT, FLANGEBOLT, FLANGE
-
890430-08119-00 WASHER, PLATEWASHER, PLATE
-
9NGK-CR8E0-00-00 PLUG, SPARK (NGK R CR8E)PLUG, SPARK (NGK R CR8E)
-
1090119-10004-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
118ES-11191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
125BE-12241-00-00 ...GUIDE, STOPPER 2...GUIDE, STOPPER 2
-
138ES-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
143Y1-15363-00-00 PLUG, OILPLUG, OIL
-
1593210-19123-00 O-RINGO-RING
-
1690109-066F0-00 BOLTBOLT
-
174KG-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
188ES-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1991317-06065-00 BOLTBOLT
-
208ES-13416-00-00 PIPE, OIL 1PIPE, OIL 1
-
2190467-10041-00 CLIPCLIP
