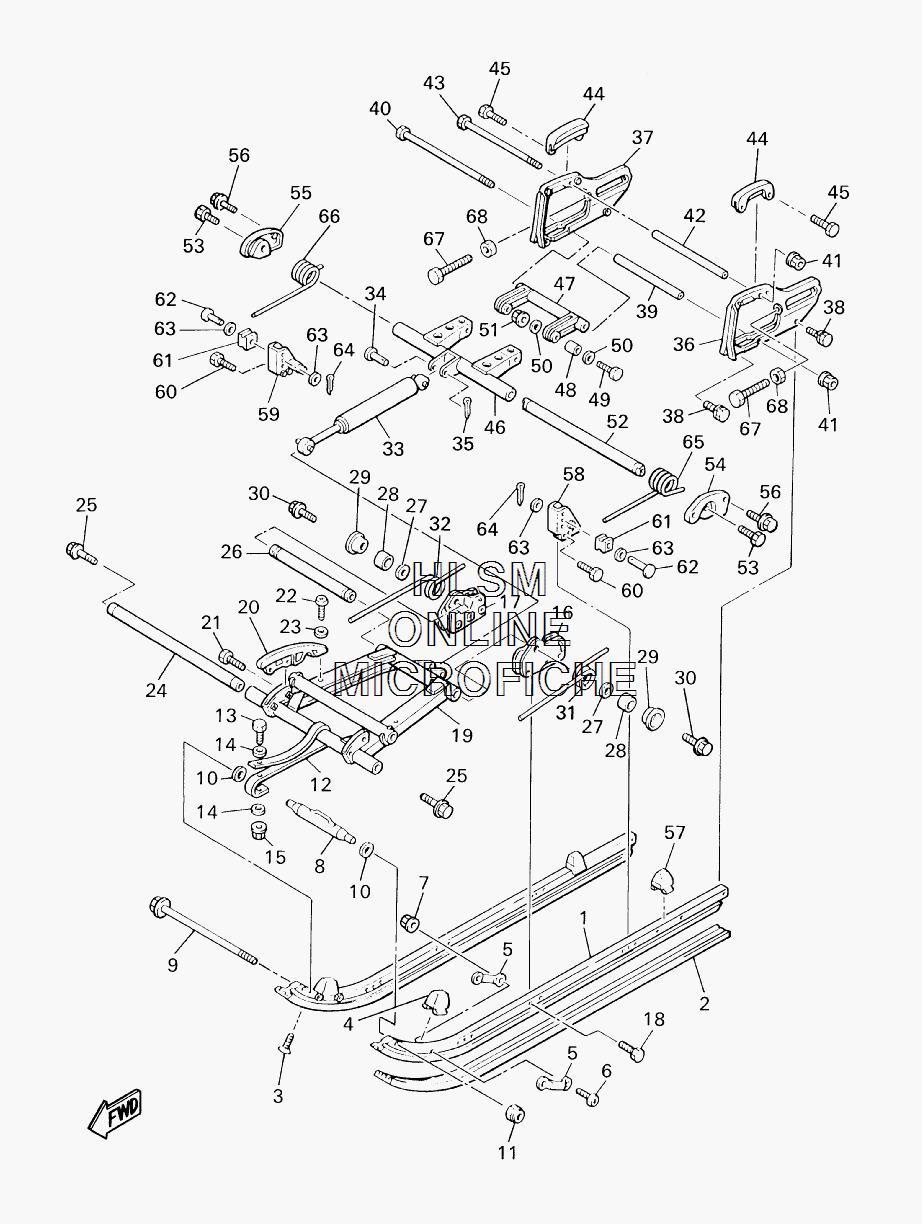

SUSPENSION - TORQUE ARM ASSY для Yamaha BRAVO - 2007 года выпуска`
-
№АртикулНазвание
-
180E-47411-00-00 FRAME, SLIDING 1FRAME, SLIDING 1
-
28X0-47421-00-00 RUNNER, SLIDING 1RUNNER, SLIDING 1
-
390151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
4888-47456-01-00 DAMPER 1DAMPER 1
-
5885-47458-01-00 PLATE, DAMPERPLATE, DAMPER
-
697007-05035-00 BOLTBOLT
-
795707-05300-00 NUT, FLANGENUT, FLANGE
-
8899-47415-00-00 BRACKET 1BRACKET 1
-
995827-08260-00 BOLT, FLANGEBOLT, FLANGE
-
1090201-08093-00 WASHER, PLATEWASHER, PLATE
-
1195607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
12888-47495-02-00 STOPPER 1STOPPER 1
-
1397007-06035-00 BOLTBOLT
-
1490201-06747-00 WASHER, PLATEWASHER, PLATE
-
1595707-06300-00 NUT, NYLONNUT, NYLON
-
1685A-47416-00-00 BRACKET 2BRACKET 2
-
1785A-47419-00-00 BRACKET 7BRACKET 7
-
1890101-06348-00 BOLTBOLT
-
1989D-47331-00-00 ARM, PIVOT 1ARM, PIVOT 1
-
208G8-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
2197007-06020-00 BOLT, HEXAGONBOLT, HEXAGON
-
2298507-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2392907-06600-00 WASHER, PLATEWASHER, PLATE
-
248A5-47465-02-00 SHAFT 1SHAFT 1
-
2590109-10771-00 BOLTBOLT
-
268A5-47485-02-00 SHAFT 3SHAFT 3
-
2790201-10149-00 WASHER, PLATEWASHER, PLATE
-
2890387-106L3-00 COLLARCOLLAR
-
2990387-206L2-00 COLLARCOLLAR
-
3095827-10080-00 BOLT, FLANGEBOLT, FLANGE
-
3180E-47471-01-00 SPRING, FRONT 1SPRING, FRONT 1
-
3280E-47472-01-00 SPRING, FRONT 2SPRING, FRONT 2
-
338E7-47480-00-00 SHOCK ABSORBERSHOCK ABSORBER
-
3490240-12115-00 PIN, CLEVISPIN, CLEVIS
-
3591401-30020-00 PIN, COTTERPIN, COTTER
-
368E3-47412-00-00 FRAME, SLIDING 2FRAME, SLIDING 2
-
378E3-47413-00-00 FRAME, SLIDING 3FRAME, SLIDING 3
-
3890119-08008-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3990387-08496-00 COLLARCOLLAR
-
4090101-08374-00 BOLTBOLT
-
4195707-08300-00 NUT, NYLONNUT, NYLON
-
4290387-08497-00 COLLARCOLLAR
-
4397027-08250-00 BOLTBOLT
-
448E3-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
4590119-06097-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
468A5-47332-00-00 ARM, PIVOT 2ARM, PIVOT 2
-
478A5-47417-00-00 BRACKET 3BRACKET 3
-
4890387-08508-00 COLLARCOLLAR
-
4997027-08045-00 BOLTBOLT
-
5090201-08093-00 WASHER, PLATEWASHER, PLATE
-
5195707-08300-00 NUT, NYLONNUT, NYLON
-
528A5-47475-02-00 SHAFT 2SHAFT 2
-
5390109-10771-00 BOLTBOLT
-
548A5-47425-00-00 BRACKET, REAR 2BRACKET, REAR 2
-
558A5-47426-00-00 BRACKET, REAR 1BRACKET, REAR 1
-
5695827-08025-00 BOLT, FLANGEBOLT, FLANGE
-
578L1-47457-01-00 DAMPER 2DAMPER 2
-
588T9-47463-00-00 BRACKET 5BRACKET 5
-
598T9-47464-00-00 BRACKET 6BRACKET 6
-
6090101-06348-00 BOLTBOLT
-
61890-47447-00-00 HOOK 2HOOK 2
-
6290249-12113-00 PIN, SPEC'L SHAPEPIN, SPEC'L SHAPE
-
6390201-12749-00 WASHER, PLATEWASHER, PLATE
-
6491401-30025-00 PIN, SPLITPIN, SPLIT
-
6590508-99331-00 SPRING, TORSION (STD)SPRING, TORSION (STD)
-
6590508-99649-00 SPRING, TORSION (OPT)SPRING, TORSION (OPT)
-
6690508-99332-00 SPRING, TORSION (STD)SPRING, TORSION (STD)
-
6690508-99650-00 SPRING, TORSION (OPT)SPRING, TORSION (OPT)
-
6790101-10314-00 BOLTBOLT
-
6890179-10279-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
