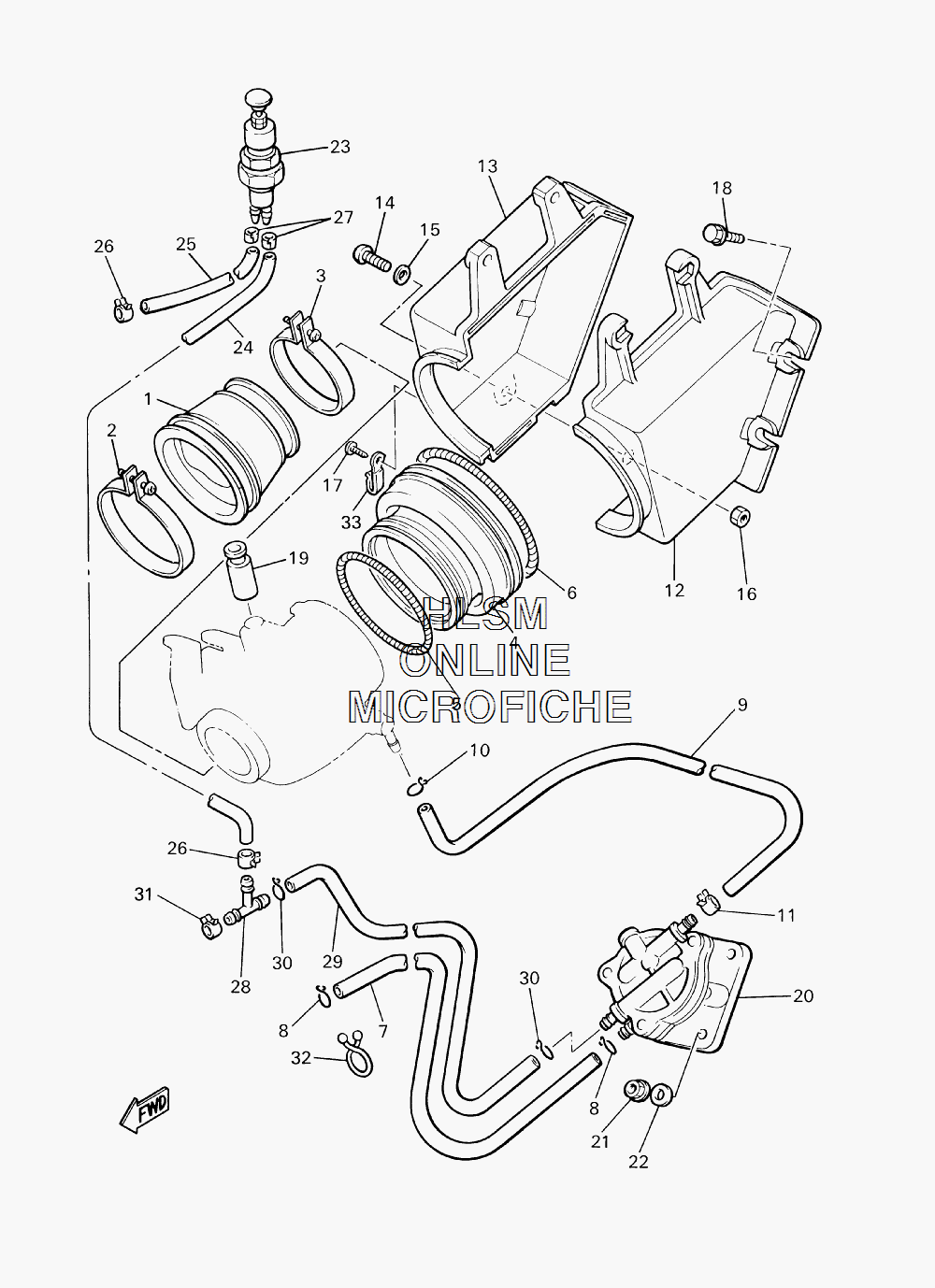

INTAKE W/ AIR BOX ASSY - FUEL PUMP для Yamaha BRAVO - 2007 года выпуска`
-
№АртикулНазвание
-
18R4-13555-00-00 MANIFOLD, INTAKEMANIFOLD, INTAKE
-
290460-64066-00 CLAMP, HOSECLAMP, HOSE
-
390460-51059-00 CLAMP, HOSECLAMP, HOSE
-
48R4-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
590506-06261-00 SPRING, TENSIONSPRING, TENSION
-
690506-06262-00 SPRING, TENSIONSPRING, TENSION
-
790445-115K4-00 HOSE (L450)HOSE (L450)
-
890467-11032-00 CLIP, SCISSORCLIP, SCISSOR
-
990445-116G8-00 HOSE (L135)HOSE (L135)
-
1090467-11009-00 CLIP, SCISSORCLIP, SCISSOR
-
1190467-11032-00 CLIP, SCISSORCLIP, SCISSOR
-
128R4-14431-00-00 SILENCER, INTAKE 1SILENCER, INTAKE 1
-
138R4-14441-01-00 SILENCER, INTAKE 2SILENCER, INTAKE 2
-
1498507-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1592907-05600-00 WASHER, PLATEWASHER, PLATE
-
1695707-05300-00 NUT, FLANGENUT, FLANGE
-
1797707-60510-00 SCREW, TAPPINGSCREW, TAPPING
-
1890119-05071-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
198J5-26352-00-00 BOOTBOOT
-
208A5-24410-02-00 FUEL PUMP ASSYFUEL PUMP ASSY
-
2195707-06500-00 NUT, FLANGENUT, FLANGE
-
2290201-06727-00 WASHER, PLATEWASHER, PLATE
-
238X8-24360-01-00 PRIMER PUMP ASSYPRIMER PUMP ASSY
-
2490445-083K9-00 HOSE (L280)HOSE (L280)
-
2590445-084K0-00 HOSE (L360)HOSE (L360)
-
2690467-07055-00 CLIP, SCISSORCLIP, SCISSOR
-
2790468-02025-00 CLIPCLIP
-
28815-24379-00-00 PIPE, JOINT 4PIPE, JOINT 4
-
2990445-114J7-00 HOSEHOSE
-
3090467-11009-00 CLIP, SCISSORCLIP, SCISSOR
-
3190467-11032-00 CLIP, SCISSORCLIP, SCISSOR
-
3290464-16039-00 CLAMPCLAMP
-
3390465-08333-00 CLAMPCLAMP
