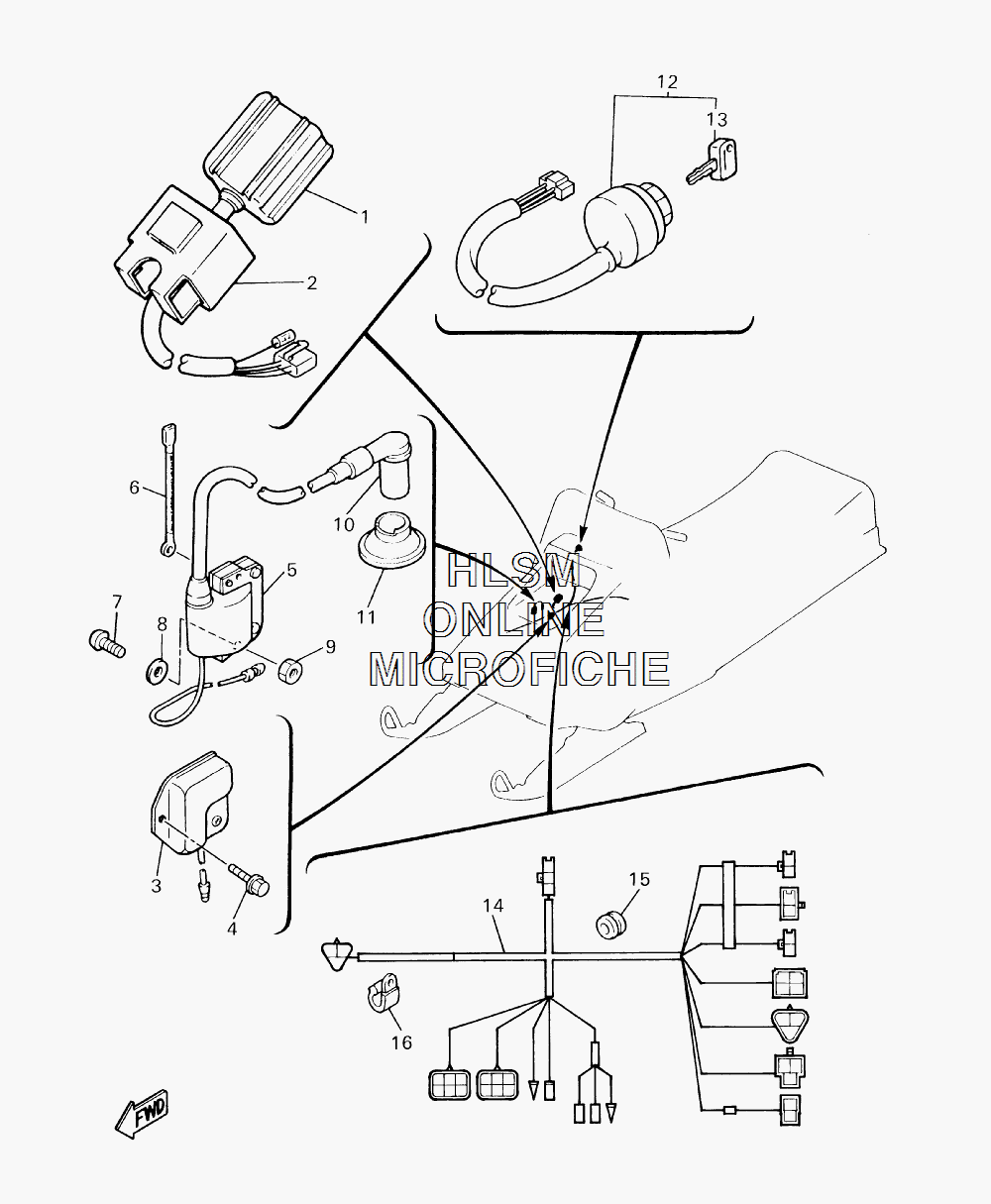

ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES для Yamaha BRAVO - 2007 года выпуска`
-
№АртикулНазвание
-
18AU-85540-00-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
22A7-85546-00-00 BANDBAND
-
382M-81910-A0-00 VOLTAGE REGULATOR ASSYVOLTAGE REGULATOR ASSY
-
495807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
586B-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
683Y-82318-00-00 WIRE, SUB-LEADWIRE, SUB-LEAD
-
797880-06040-00 SCREW, PAN HEADSCREW, PAN HEAD
-
892990-06600-00 WASHER, PLATEWASHER, PLATE
-
995307-06600-00 NUTNUT
-
108K1-82370-20-00 PLUG CAP ASSY (WITH RESISTOR)PLUG CAP ASSY (WITH RESISTOR)
-
118G5-82372-00-00 SEAL, PLUG CAPSEAL, PLUG CAP
-
128R4-82510-20-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
13526-82579-00-00 ...CAP, KEY...CAP, KEY
-
148BD-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
1590480-16422-00 GROMMETGROMMET
-
1690465-08028-00 CLAMPCLAMP
Все узлы модели:
- AIR SHROUD W/ FAN
- BELT GUARD W/ TOOL BOX
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CARBURETOR ASSY
- CHAINCASE ASSY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - TUNE-UP KIT (OPTION)
- CONSOLE ASSY
- CRANKCASE ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- DECALS
- DRIVE TRAIN ASSEMBLY
- • ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - INSTRUMENTS
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FUEL TANK ASSY
- FUEL TANK ASSY 2
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HANDLEBAR PAD W/ STEERING GATE
- HOOD - WINDSHIELD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- MODEL INFO - COLOR CHART
- OIL PUMP ASSY
- OIL PUMP DRIVE GEAR
- OIL TANK ASSY
- REAR VIEW MIRROR ASSY (OPTION)
- REFLECTOR ASSY
- SEAT ASSY
- STARTER - RECOIL
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- SUSPENSION - TORQUE ARM ASSY
- THUMB WARMER KIT (OPT)
- TUNNEL ASSEMBLY W/ LOWER NOSEPAN
