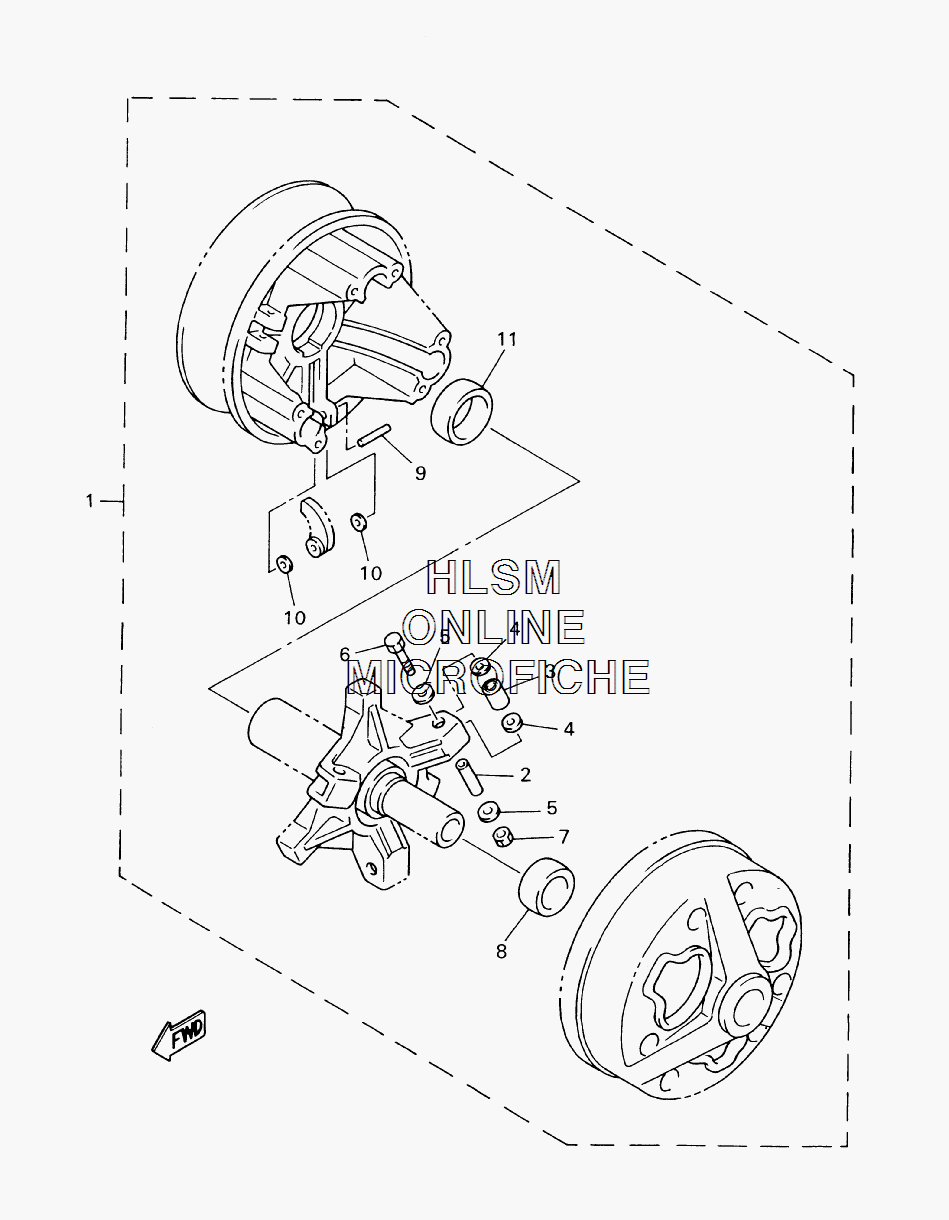

CLUTCH - TUNE-UP KIT (OPTION) для Yamaha BRAVO - 2007 года выпуска`
-
№АртикулНазвание
-
189D-00000-50-00 CLUTCH TUNE-UP KIT (T) (OPT)CLUTCH TUNE-UP KIT (T) (OPT)
-
290387-057W5-00 ...COLLAR...COLLAR
-
390387-087W7-00 ...COLLAR...COLLAR
-
490202-08205-00 ...WASHER, PLATE...WASHER, PLATE
-
590201-050P9-00 ...WASHER, PLATE...WASHER, PLATE
-
697022-05035-00 ...BOLT...BOLT
-
795612-05100-00 ...NUT, U...NUT, U
-
890389-28032-00 ...BUSH, SPEC'L SHAPE...BUSH, SPEC'L SHAPE
-
993607-44190-00 ...PIN, DOWEL...PIN, DOWEL
-
1090201-077F5-00 ...WASHER, PLATE...WASHER, PLATE
