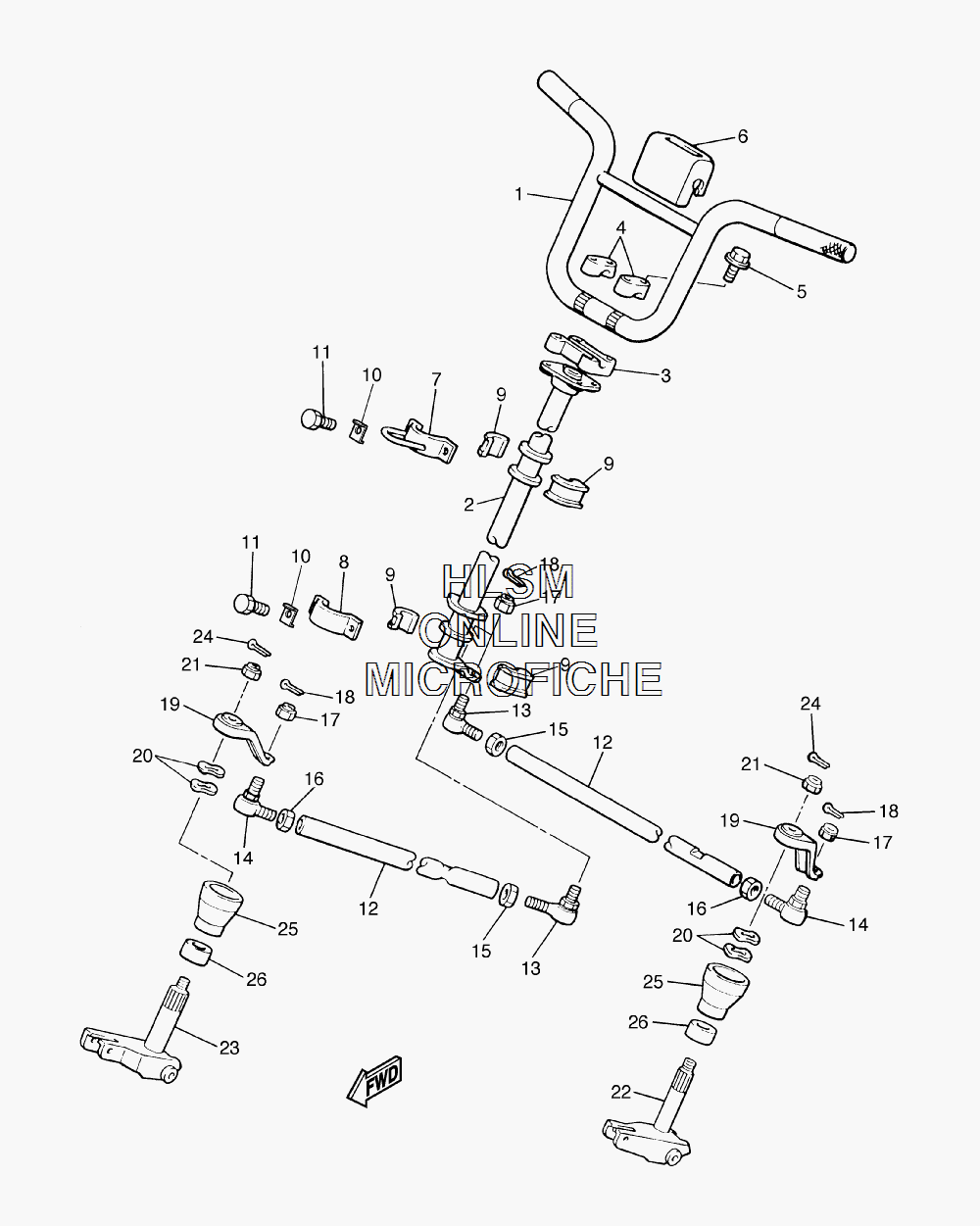

HANDLEBAR ASSY W/ STEERING ASSY для Yamaha BRAVO - 2007 года выпуска`
-
№АртикулНазвание
-
186A-23811-90-00 COLUMN, STEERINGCOLUMN, STEERING
-
28R4-23813-00-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
38G5-23814-00-00 HOLDER, HANDLE UNDERHOLDER, HANDLE UNDER
-
48K1-23814-00-00 HOLDER, HANDLEHOLDER, HANDLE
-
595827-08055-00 BOLT, FLANGEBOLT, FLANGE
-
68F3-23818-00-00 COVER, STEERINGCOVER, STEERING
-
78Y4-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
884M-23868-00-00 BRACKET, STEERING LOWERBRACKET, STEERING LOWER
-
98F3-23812-00-00 PLANE BEARING, STEERINGPLANE BEARING, STEERING
-
108AC-23894-00-00 WASHER, LOCK 1WASHER, LOCK 1
-
1190101-08005-00 BOLTBOLT
-
128R4-23821-00-00 ROD, STEERING RELAYROD, STEERING RELAY
-
1386X-23841-00-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
1486X-23845-00-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
1595307-10700-00 NUTNUT
-
1690170-10186-00 NUT (L.H. THREAD)NUT (L.H. THREAD)
-
1790185-10085-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1891401-25020-00 PIN, COTTERPIN, COTTER
-
1988P-23851-00-00 ARM, OUTSIDE 1ARM, OUTSIDE 1
-
2090206-20037-00 WASHER, WAVEWASHER, WAVE
-
2195707-10300-00 NUT, FLANGENUT, FLANGE
-
228Y1-23853-00-00 COLUMN, SKI 1COLUMN, SKI 1
-
238Y1-23854-00-00 COLUMN, SKI 2COLUMN, SKI 2
-
2491401-25020-00 PIN, COTTERPIN, COTTER
-
258U0-2198G-00-00 COVER 2COVER 2
-
268Y1-21998-00-00 SPACERSPACER
