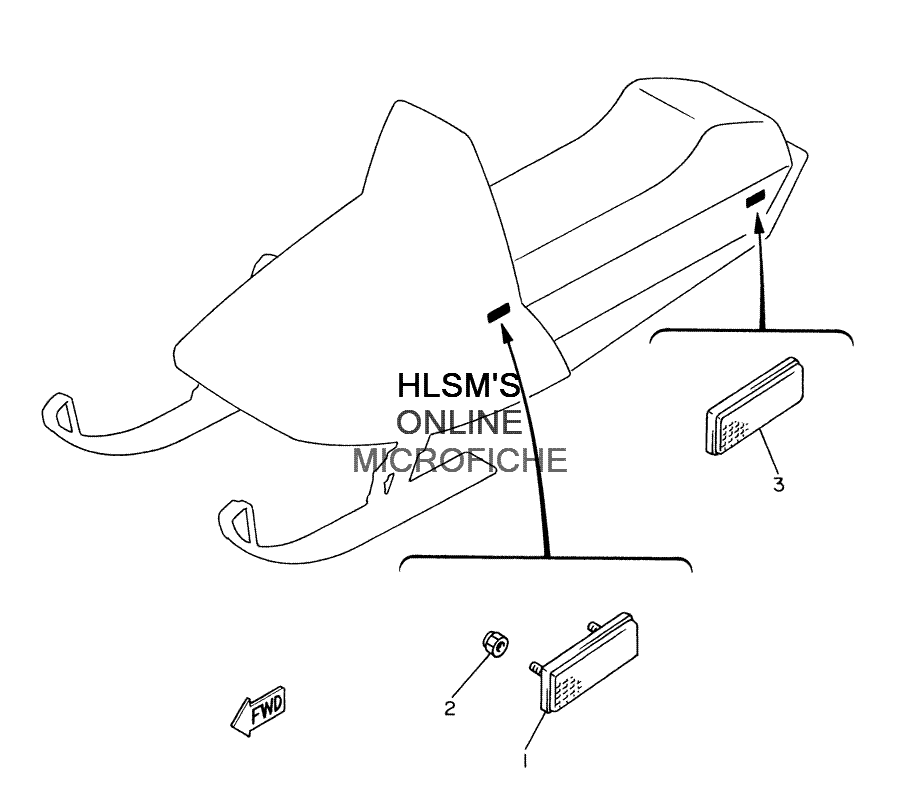

REFLECTOR ASSY для Yamaha VK 540 III - 2004 года выпуска
-
№АртикулНазвание
-
186R-85110-00-00 REFLECTOR ASSY.REFLECTOR ASSY.
-
295607-05200-00 NUT, U FLANGENUT, U FLANGE
-
381G-85130-00-00 REAR REFLECTOR ASSY.REAR REFLECTOR ASSY.
