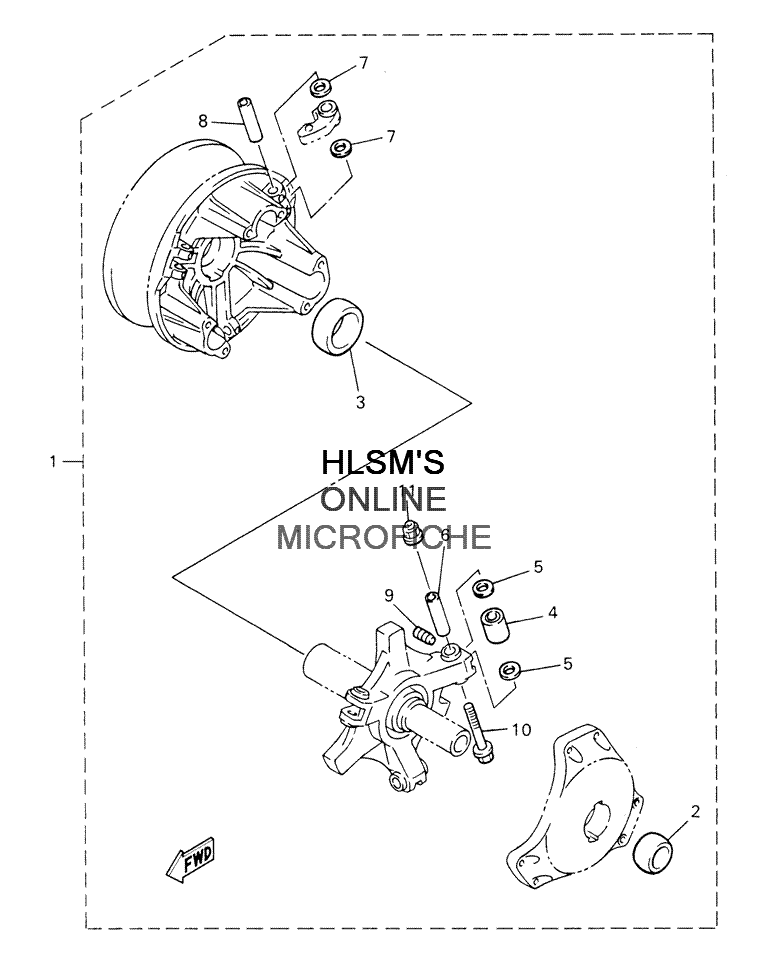

CLUTCH - TUNE-UP KIT (OPTION) для Yamaha VK 540 III - 2004 года выпуска`
-
№АртикулНазвание
-
188R-00000-51-00 CLUTCH TUNE-UP KIT (R) (OPT)CLUTCH TUNE-UP KIT (R) (OPT)
-
290389-28032-00 ...BUSH...BUSH
-
390389-41031-00 ...BUSH...BUSH
-
488R-17624-01-00 ...ROLLER, COMP...ROLLER, COMP
-
590202-08204-00 ...WASHER, PLATE...WASHER, PLATE
-
690387-0501R-00 ...COLLAR...COLLAR
-
790202-08204-00 ...WASHER, PLATE...WASHER, PLATE
-
890387-0501R-00 ...COLLAR...COLLAR
-
990113-05053-00 ...BOLT, SET...BOLT, SET
-
1090105-05644-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1195607-05200-00 ...NUT, U FLANGE...NUT, U FLANGE
