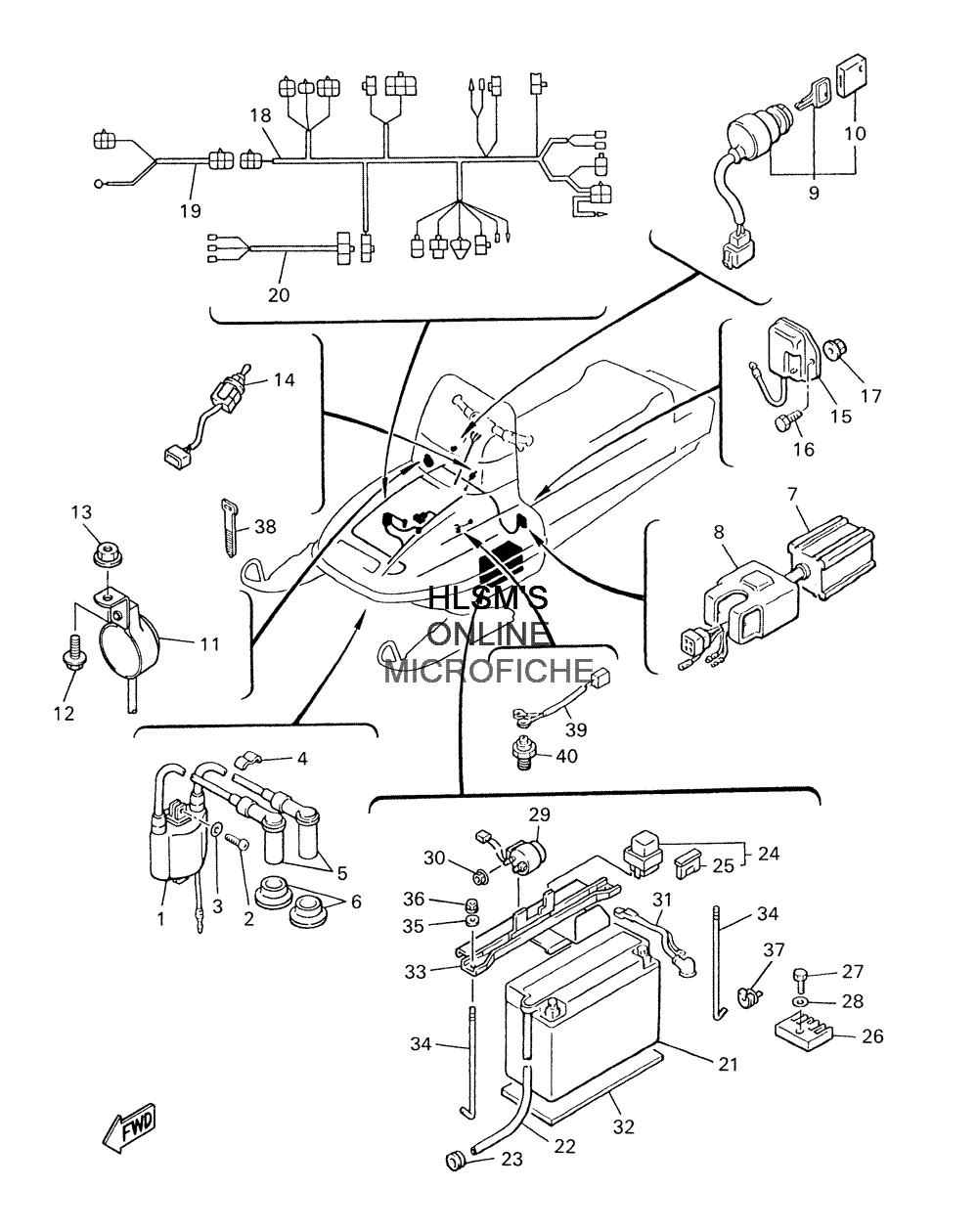

ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES для Yamaha VK 540 III - 2004 года выпуска`
-
№АртикулНазвание
-
188T-82310-00-00 IGNITION COIL ASSY.IGNITION COIL ASSY.
-
297880-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
392990-06600-00 WASHER, PLATEWASHER, PLATE
-
4861-82361-00-00 CLAMP, CORDCLAMP, CORD
-
58K1-82370-20-00 PLUG CAP ASSY. (WITH RESISTOR)PLUG CAP ASSY. (WITH RESISTOR)
-
68G5-82372-00-00 SEAL, PLUG CAPSEAL, PLUG CAP
-
78AU-85540-00-00 C.D.I. UNIT ASSY.C.D.I. UNIT ASSY.
-
82A7-85546-00-00 BANDBAND
-
98K1-82510-20-00 MAIN SWITCH ASSY.MAIN SWITCH ASSY.
-
10526-82579-00-00 ...CAP, KEY...CAP, KEY
-
1187L-83383-01-00 BUZZERBUZZER
-
1295827-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1395607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
148BE-82917-00-00 SWITCHSWITCH
-
1582M-81910-A0-00 VOLTAGE REGULATOR ASSY.VOLTAGE REGULATOR ASSY.
-
1697007-06014-00 BOLTBOLT
-
1795707-06300-00 NUT, FLANGENUT, FLANGE
-
188AC-82590-00-00 WIRE HARNESS ASSY.WIRE HARNESS ASSY.
-
198AC-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
208AC-84717-01-00 CORD, TAILLIGHTCORD, TAILLIGHT
-
21BTY-YB16A-LA-20 BATTERY ASSY. (YUASA YB16AL-A2)BATTERY ASSY. (YUASA YB16AL-A2)
-
228AC-8235W-00-00 PIPEPIPE
-
2390480-12314-00 GROMMETGROMMET
-
248BE-82150-00-00 FUSE HOLDER ASSY.FUSE HOLDER ASSY.
-
2542X-82151-00-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
261Y8-81970-60-00 RECTIFIER ASSY.RECTIFIER ASSY.
-
2797007-06020-00 BOLTBOLT
-
2892907-06600-00 WASHER, PLATEWASHER, PLATE
-
2950W-81940-10-00 STARTER RELAY ASSY.STARTER RELAY ASSY.
-
3095707-06500-00 NUT, FLANGENUT, FLANGE
-
3188N-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
3284N-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
338AC-82136-10-00 PLATE, BATTERY FITTINGPLATE, BATTERY FITTING
-
348Y7-82133-00-00 SCREW, FITTINGSCREW, FITTING
-
3592907-06600-00 WASHER, PLATEWASHER, PLATE
-
3695707-06300-00 NUT, FLANGENUT, FLANGE
-
378AC-82355-00-00 GROMMETGROMMET
-
38341-26397-01-00 BANDBAND
-
3987L-82318-00-00 WIRE, SUB-LEADWIRE, SUB-LEAD
-
404KD-82540-00-00 NEUTRAL SWITCH ASSY.NEUTRAL SWITCH ASSY.
