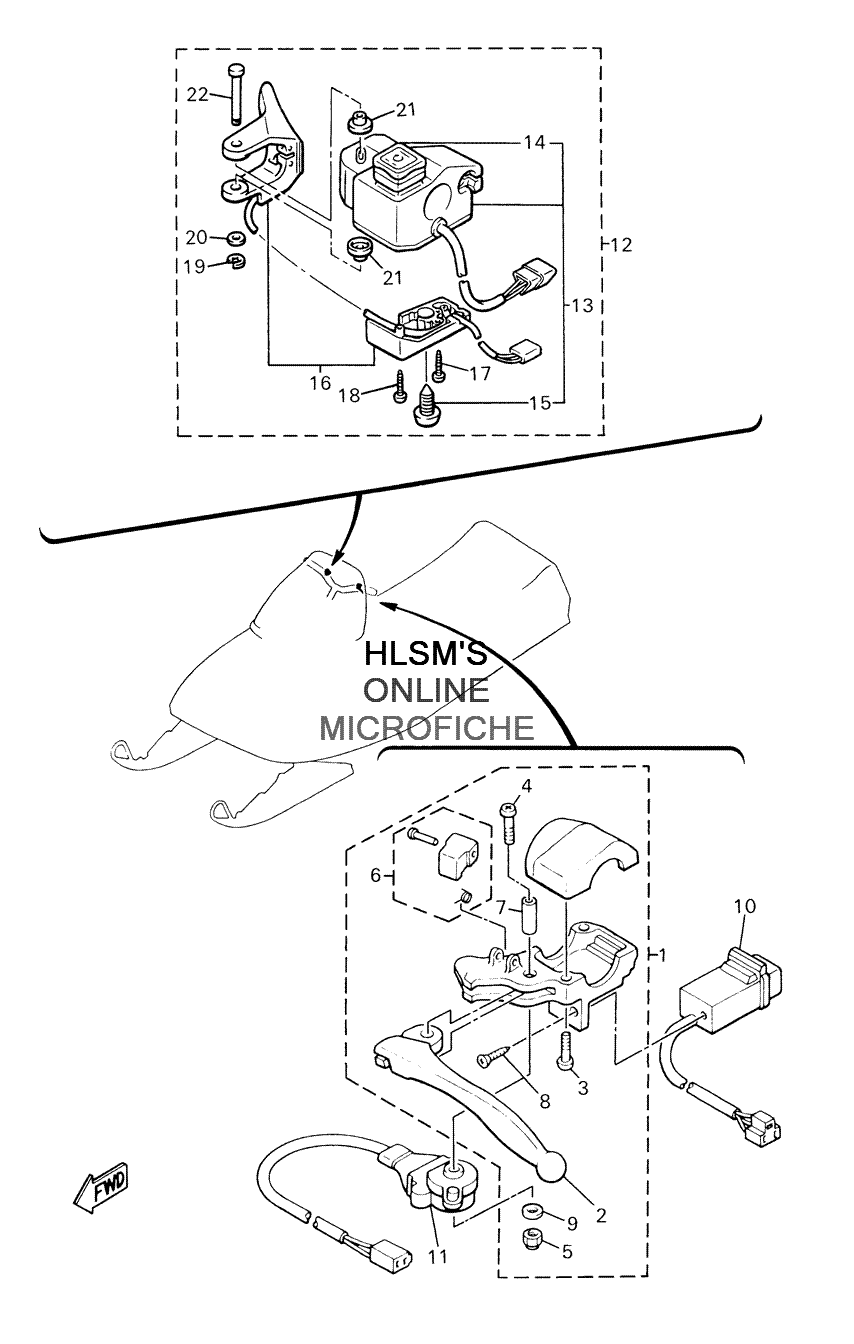

HANDLEBAR - SWITCHES AND LEVERS для Yamaha VK 540 III - 2004 года выпуска`
-
№АртикулНазвание
-
188R-W8291-00-00 LEVER HOLDER ASSY. (LEFT)LEVER HOLDER ASSY. (LEFT)
-
28H8-83912-00-00 ...LEVER L...LEVER L
-
390157-05027-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
490157-05113-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
595707-05300-00 ...NUT, FLANGE...NUT, FLANGE
-
68K4-83930-00-00 ...LEVER LOCK ASSY....LEVER LOCK ASSY.
-
7802-83913-00-00 ...COLLAR, LEVER 1...COLLAR, LEVER 1
-
897707-30712-00 ...SCREW, TAPPING...SCREW, TAPPING
-
992907-05200-00 ...WASHER...WASHER
-
108K4-83950-01-00 BEAM SWITCH ASSY.BEAM SWITCH ASSY.
-
1188R-82530-00-00 STOP SWITCH ASSY.STOP SWITCH ASSY.
-
128AU-82720-02-00 LEVER HOLDER ASSY. (RIGHT)LEVER HOLDER ASSY. (RIGHT)
-
138AU-83963-00-00 ...SWITCH, HANDLE 3 (RIGHT)...SWITCH, HANDLE 3 (RIGHT)
-
148AU-82575-09-00 ......ENGINE STOP SWITCH ASSY. (WIRE/L=240MM)......ENGINE STOP SWITCH ASSY. (WIRE/L=240MM)
-
158R6-83928-00-00 ......SCREW......SCREW
-
168AU-82970-02-00 ...THUMB WARMER ASSY....THUMB WARMER ASSY.
-
1797706-30620-00 ...SCREW, TAPPING...SCREW, TAPPING
-
1897706-30630-00 ...SCREW, TAPPING...SCREW, TAPPING
-
1999001-04600-00 ...CIRCLIP...CIRCLIP
-
2085G-83663-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
2185G-83956-00-00 ...CAP 1...CAP 1
-
2288T-8399F-00-00 ...SHAFT...SHAFT
