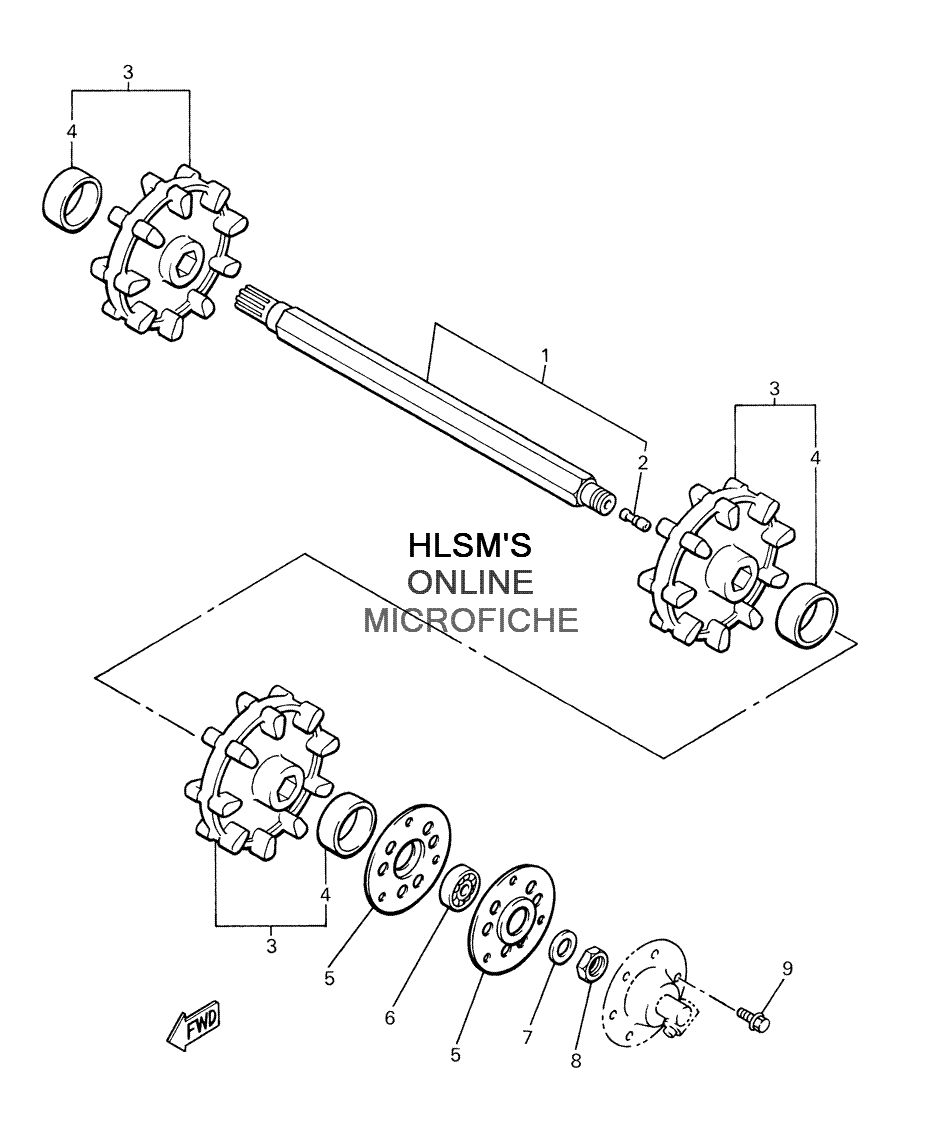

DRIVE TRAIN ASSEMBLY для Yamaha VK 540 III - 2004 года выпуска`
-
№АртикулНазвание
-
183R-W4751-00-00 AXLE, FRONTAXLE, FRONT
-
28K4-47577-00-00 ...CONNECTOR...CONNECTOR
-
383R-W4753-01-00 WHEEL, SPROCKET 1WHEEL, SPROCKET 1
-
490387-514Y2-00 ...COLLAR...COLLAR
-
583R-47551-00-00 HOUSING, FRONT AXLEHOUSING, FRONT AXLE
-
693306-00507-00 BEARINGBEARING
-
790208-25045-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
890170-25367-00 NUTNUT
-
995827-08014-00 BOLT, FLANGEBOLT, FLANGE
Все узлы модели:
- AIR SHROUD W/ FAN
- BELT GUARD W/ TOOL BOX
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CARBURETOR ASSY
- CHAINCASE ASSY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - TUNE-UP KIT (OPTION)
- CONSOLE ASSY
- CRANKCASE ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- DECALS
- • DRIVE TRAIN ASSEMBLY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - INSTRUMENTS
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FUEL TANK ASSY
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - STEERING GATE
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HOOD - WINDSHIELD ASSY
- HOOD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- MODEL INFO - COLOR CHART
- OIL PUMP ASSY
- OIL PUMP DRIVE GEAR
- OIL TANK ASSY
- REAR VIEW MIRROR ASSY (OPTION)
- REFLECTOR ASSY
- REVERSE ASSY
- SEAT ASSY
- STARTER - ELECTRICAL STARTER ASSY
- STARTER - RECOIL
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ TRACK
- SUSPENSION - RAIL ASSY EXTENSIONS
- SUSPENSION - TORQUE ARM ASSY W/ RAIL ASSY
- TUNNEL ASSEMBLY W/ LOWER NOSEPAN
