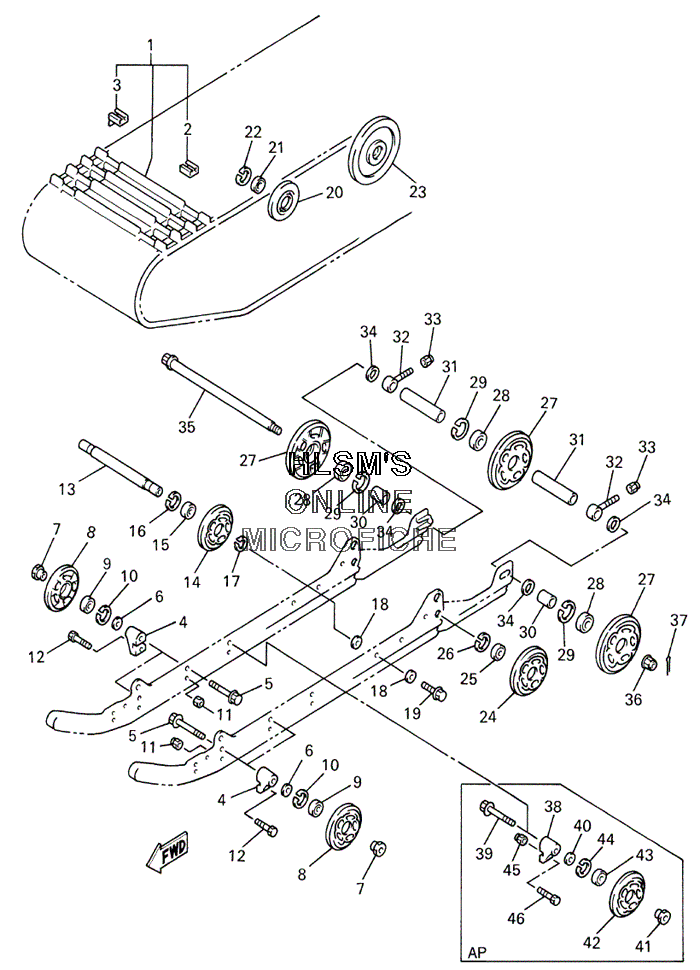

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha VIKING 540 - 2002 года выпуска`
-
№АртикулНазвание
-
18AC-47110-00-00 TRACK ASSYTRACK ASSY
-
28A5-47113-00-00 ...PLATE, REINFORCEMENT...PLATE, REINFORCEMENT
-
389A-47115-01-00 ...METAL, SLIDE...METAL, SLIDE
-
48CM-47419-10-00 BRACKET 7BRACKET 7
-
590105-10769-00 BOLT, FLANGEBOLT, FLANGE
-
690201-100L3-00 WASHER, PLATEWASHER, PLATE
-
790179-10670-00 NUTNUT
-
887M-47320-00-00 SUSPENSION WHEEL COMP.SUSPENSION WHEEL COMP.
-
993306-00444-00 BEARING (B6004RS)BEARING (B6004RS)
-
1099009-42500-00 CIRCLIPCIRCLIP
-
1195607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1290101-08774-00 BOLTBOLT
-
138AT-47486-00-00 SHAFT 4SHAFT 4
-
1487M-47320-00-00 SUSPENSION WHEEL COMP.SUSPENSION WHEEL COMP.
-
1593306-00444-00 BEARING (B6004RS)BEARING (B6004RS)
-
1699009-42500-00 CIRCLIPCIRCLIP
-
1799009-20400-00 CIRCLIPCIRCLIP
-
1890201-100L3-00 WASHER, PLATEWASHER, PLATE
-
1990105-10433-00 BOLT, FLANGEBOLT, FLANGE
-
208AC-47320-00-00 SUSPENSION WHEEL COMP.SUSPENSION WHEEL COMP.
-
2193306-00444-00 BEARING (B6004RS)BEARING (B6004RS)
-
2299009-42500-00 CIRCLIPCIRCLIP
-
238AC-47550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
248U7-47320-00-00 SUSPENSION WHEEL COMP.SUSPENSION WHEEL COMP.
-
2593306-00444-00 BEARING (B6004RS)BEARING (B6004RS)
-
2699009-42500-00 CIRCLIPCIRCLIP
-
278K2-47530-00-00 GUIDE WHEEL COMP.GUIDE WHEEL COMP.
-
2893306-20469-00 BEARINGBEARING
-
2999009-47500-00 CIRCLIPCIRCLIP
-
3090387-200U9-00 COLLARCOLLAR
-
3190387-205T6-00 COLLARCOLLAR
-
328K2-47479-01-00 COLLAR 3COLLAR 3
-
3395707-10300-00 NUT, FLANGENUT, FLANGE
-
3490201-205R6-00 WASHER, PLATEWASHER, PLATE
-
3583R-47520-00-00 REAR AXLE COMP.REAR AXLE COMP.
-
3690185-14142-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3791401-30025-00 PIN, COTTERPIN, COTTER
-
388CM-47419-10-00 BRACKET 7 (OPT)BRACKET 7 (OPT)
-
3990105-10769-00 BOLT, FLANGE (OPT)BOLT, FLANGE (OPT)
-
4090201-100L3-00 WASHER, PLATE (OPT)WASHER, PLATE (OPT)
-
4190179-10670-00 NUT (OPT)NUT (OPT)
-
4287M-47320-00-00 SUSPENSION WHEEL COMP. (OPT)SUSPENSION WHEEL COMP. (OPT)
-
4393306-00444-00 BEARING (B6004RS) (OPT)BEARING (B6004RS) (OPT)
-
4499009-42500-00 CIRCLIP (OPT)CIRCLIP (OPT)
-
4595607-08200-00 NUT, SELF-LOCKING (OPT)NUT, SELF-LOCKING (OPT)
-
4690101-08774-00 BOLT (OPT)BOLT (OPT)
