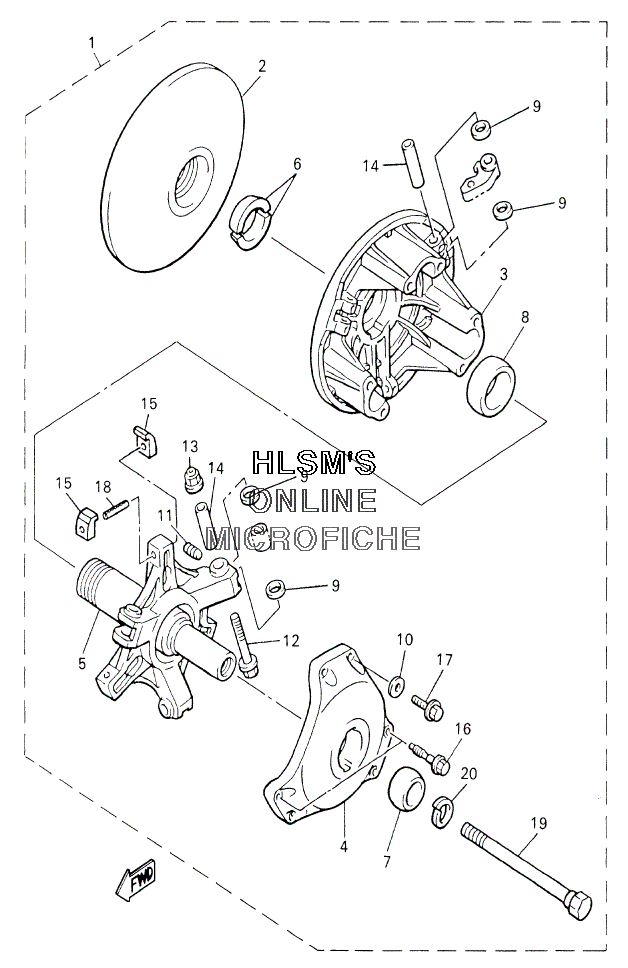

CLUTCH - REPAIR KIT (OPTION) для Yamaha VIKING 540 - 2002 года выпуска`
-
№АртикулНазвание
-
18AC-17601-09-00 CLUTCH REPAIR KIT (OPT)CLUTCH REPAIR KIT (OPT)
-
288R-17611-02-00 ...SHEAVE, PRIMARY FIXED...SHEAVE, PRIMARY FIXED
-
389F-17621-00-00 ...SHEAVE, PRIMARY SLIDING...SHEAVE, PRIMARY SLIDING
-
488R-17631-01-00 ...CAP...CAP
-
58BW-17640-11-00 ...SPIDER COMPLETE...SPIDER COMPLETE
-
68V0-17639-00-00 ...STOPPER...STOPPER
-
790389-28032-00 ...BUSH...BUSH
-
890389-41031-00 ...BUSH...BUSH
-
990202-08204-00 ...WASHER, PLATE...WASHER, PLATE
-
1092907-06600-00 ...WASHER, PLATE...WASHER, PLATE
-
1190113-05053-00 ...BOLT, SET...BOLT, SET
-
1290105-05644-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1395607-05200-00 ...NUT, U FLANGE...NUT, U FLANGE
-
1490387-0501R-00 ...COLLAR...COLLAR
-
158BW-17653-00-00 ...SLIDER...SLIDER
-
1690109-066F4-00 ...BOLT...BOLT
-
1797017-06030-00 ...BOLT...BOLT
-
1891609-50032-00 ...PIN, SPRING...PIN, SPRING
-
198V0-17647-00-00 ...BOLT (L=156.5MM)...BOLT (L=156.5MM)
-
2092907-16100-00 ...WASHER...WASHER
