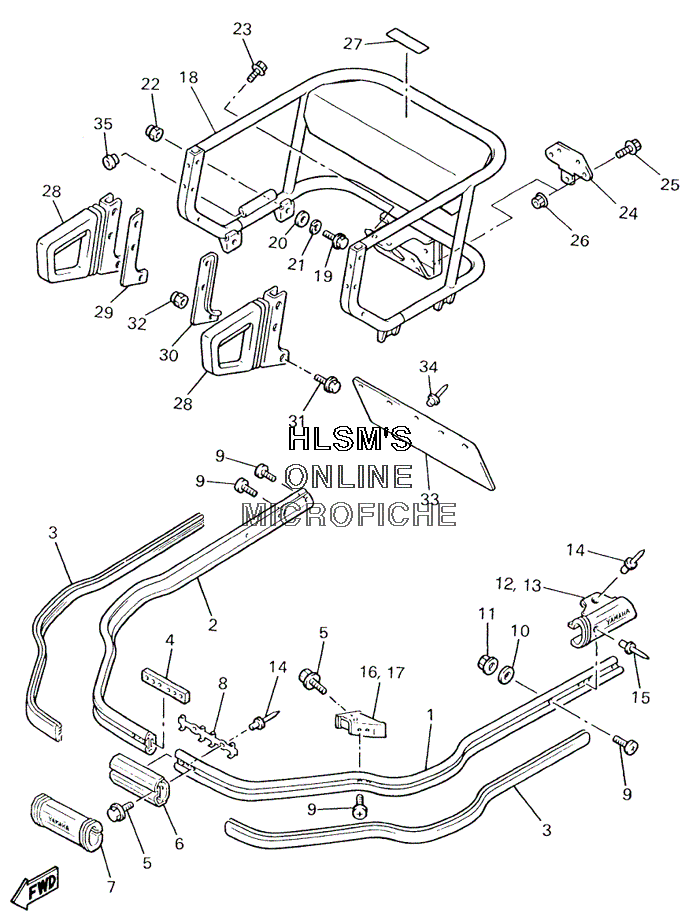

BUMPER - FRONT AND REAR для Yamaha VIKING 540 - 2002 года выпуска`
-
№АртикулНазвание
-
18AT-77511-01-00 BUMPER, FRONT 1BUMPER, FRONT 1
-
28AT-77512-01-00 BUMPER, FRONT 2BUMPER, FRONT 2
-
38AT-77516-00-00 BUSH, RUBBER 2BUSH, RUBBER 2
-
48AT-77529-00-00 SPACER, BUMPERSPACER, BUMPER
-
590105-08408-00 BOLT, FLANGEBOLT, FLANGE
-
68AT-77552-00-00 PROTECTOR 2PROTECTOR 2
-
78AT-77551-01-00 PROTECTOR 1PROTECTOR 1
-
88AT-77553-00-00 PROTECTOR 3PROTECTOR 3
-
990149-08230-00 SCREWSCREW
-
1092907-08200-00 WASHERWASHER
-
1195307-08600-00 NUTNUT
-
128AT-77521-00-00 STOPPER, 1STOPPER, 1
-
138AT-77522-00-00 STOPPER 2STOPPER 2
-
1490267-48141-00 RIVET, BLINDRIVET, BLIND
-
1590267-48149-00 RIVET, BLINDRIVET, BLIND
-
168AT-77523-00-00 END, BUMPEREND, BUMPER
-
178AT-77524-00-00 END, BUMPEREND, BUMPER
-
188AC-77540-00-00 REAR BUMPER COMP.REAR BUMPER COMP.
-
1995827-08014-00 BOLT, FLANGEBOLT, FLANGE
-
2092907-08200-00 WASHERWASHER
-
2192907-08100-00 WASHER, SPRINGWASHER, SPRING
-
2295307-08800-00 NUTNUT
-
2395827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
2484R-77592-00-00 BRACKET, HITCH 2BRACKET, HITCH 2
-
2595827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
2695607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2789X-24897-00-00 EMBLEMEMBLEM
-
288X0-77571-00-00 GRIP, ASSIST 1GRIP, ASSIST 1
-
298X0-77525-00-00 WASHER 1WASHER 1
-
308X0-77526-00-00 WASHER 2WASHER 2
-
3195807-08040-00 BOLT, FLANGEBOLT, FLANGE
-
3290176-08063-00 NUT, CROWNNUT, CROWN
-
3383R-77595-00-00 FLAPFLAP
-
3490267-48086-00 RIVET, BLINDRIVET, BLIND
-
3590480-15268-00 GROMMETGROMMET
