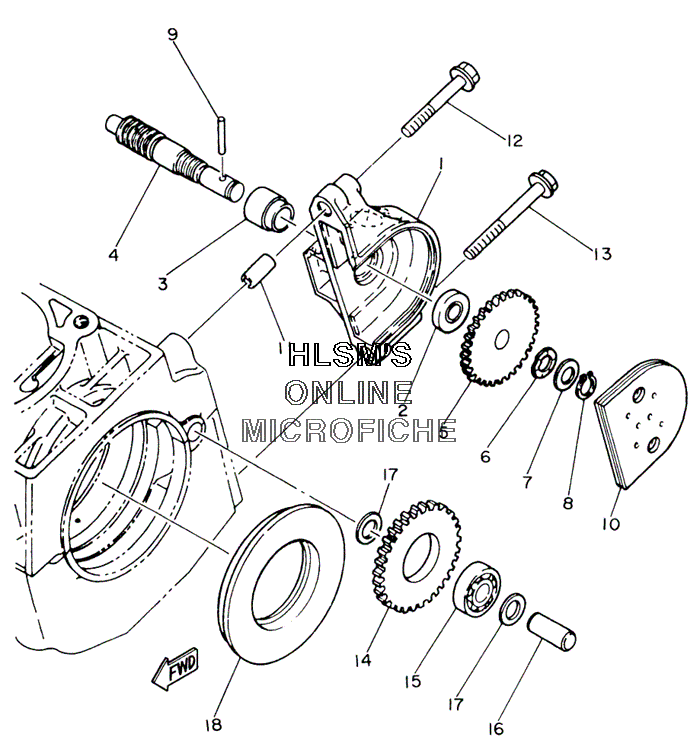

OIL PUMP DRIVE GEAR для Yamaha VIKING 540 - 2002 года выпуска`
-
№АртикулНазвание
-
18AT-15416-00-00 COVER, OIL PUMPCOVER, OIL PUMP
-
293101-10001-00 OIL SEALOIL SEAL
-
3821-13176-00-00 METAL, WORM SHAFT OUTERMETAL, WORM SHAFT OUTER
-
4866-13175-00-00 SHAFT, WORMSHAFT, WORM
-
5821-13188-00-00 GEAR, DRIVE (32T)GEAR, DRIVE (32T)
-
690206-11016-00 WASHER, WAVEWASHER, WAVE
-
7137-13148-00-00 PLATE, CAM THRUSTPLATE, CAM THRUST
-
899009-10400-00 CIRCLIPCIRCLIP
-
993603-22028-00 PIN, DOWELPIN, DOWEL
-
108K4-15426-00-00 COVER, OIL PUMP 2COVER, OIL PUMP 2
-
1199530-08016-00 PIN, DOWELPIN, DOWEL
-
1295027-06040-00 BOLT, FLANGEBOLT, FLANGE
-
1395027-06055-00 BOLT, FLANGEBOLT, FLANGE
-
148H8-13179-00-00 GEAR, IDLE (34T)GEAR, IDLE (34T)
-
1593306-00002-00 BEARING (B6000RS)BEARING (B6000RS)
-
168G8-13342-00-00 SHAFT, IDLE GEARSHAFT, IDLE GEAR
-
1790201-10119-00 WASHER, PLATEWASHER, PLATE
-
188K4-13119-00-00 SEAL, GREASESEAL, GREASE
