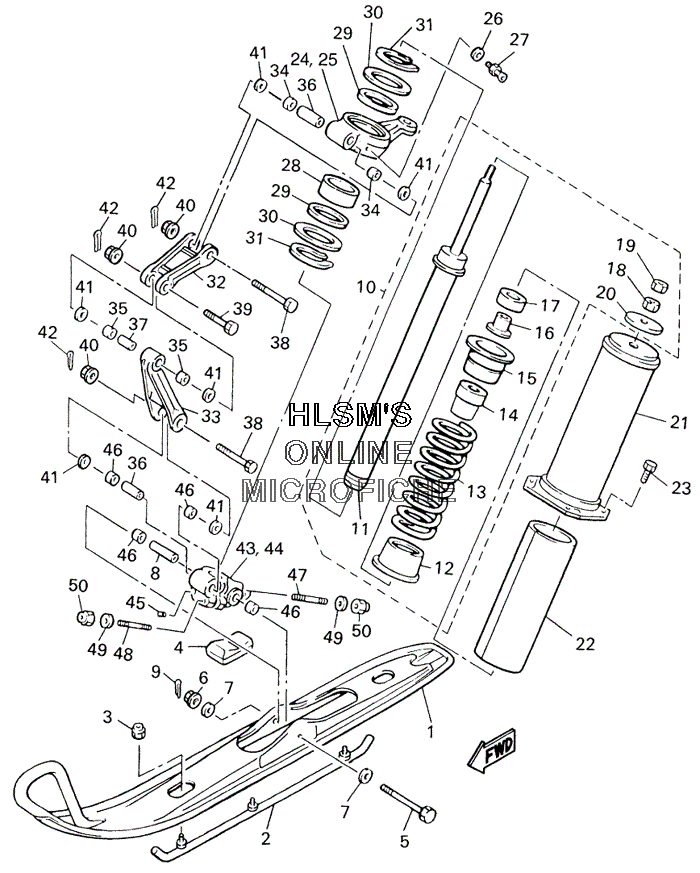

SUSPENSION - FRONT W/ SKI ASSY для Yamaha VIKING 540 - 2002 года выпуска
-
№АртикулНазвание
-
18AT-23710-00-00 SKI COMP. 1SKI COMP. 1
-
28AC-23731-00-00 RUNNER 1RUNNER 1
-
395607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
488T-23743-00-00 STOPPER 1STOPPER 1
-
590102-10050-00 BOLT, WITH HOLEBOLT, WITH HOLE
-
695707-10300-00 NUT, FLANGENUT, FLANGE
-
790201-10430-00 WASHER, PLATEWASHER, PLATE
-
890387-106J3-00 COLLARCOLLAR
-
991401-20020-00 PIN, COTTERPIN, COTTER
-
108AC-2376A-00-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
118AT-22401-00-00 ...DAMPER SUB ASSY...DAMPER SUB ASSY
-
1282M-23777-00-00 ...SEAT, SPRING 2...SEAT, SPRING 2
-
1390501-75612-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
1489L-22493-00-00 ...BUMP, STOP...BUMP, STOP
-
158L0-23788-00-00 ...PLATE, BACK UP...PLATE, BACK UP
-
1690387-084R1-00 ...COLLAR...COLLAR
-
1782M-23779-00-00 ...WASHER...WASHER
-
1890170-08220-00 ...NUT...NUT
-
1995307-08600-00 ...NUT...NUT
-
2090201-080L1-00 ...WASHER, PLATE...WASHER, PLATE
-
218AT-2376J-00-00 HOLDER, ABSORBERHOLDER, ABSORBER
-
228L0-2376R-00-00 PROTECTORPROTECTOR
-
2397027-06020-00 BOLTBOLT
-
2482M-23851-00-00 ARM, OUTSIDE 1 (L,H)ARM, OUTSIDE 1 (L,H)
-
258AT-23852-00-00 ARM, OUTSIDE 2ARM, OUTSIDE 2
-
2690201-067F9-00 WASHER, PLATEWASHER, PLATE
-
2793700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
2890384-53175-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
2993109-53036-00 OIL SEALOIL SEAL
-
3090201-535H6-00 WASHER, PLATE (T=2.0) (OPT) UNWASHER, PLATE (T=2.0) (OPT) UN
-
3090201-536A1-00 WASHER, PLATE (T=1.0) (OPT) UNWASHER, PLATE (T=1.0) (OPT) UN
-
3193410-52061-00 CIRCLIPCIRCLIP
-
328L0-2382E-01-00 ARM, FRONT 1ARM, FRONT 1
-
338L0-2382F-00-00 ARM, FRONT 2ARM, FRONT 2
-
3490384-14091-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
3590384-14096-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
3690387-101Y9-00 COLLARCOLLAR
-
3790387-100A4-00 COLLARCOLLAR
-
3890102-10039-00 BOLT, WITH HOLEBOLT, WITH HOLE
-
3990102-10067-00 BOLT, WITH HOLEBOLT, WITH HOLE
-
4095707-10300-00 NUT, FLANGENUT, FLANGE
-
4190202-14037-00 WASHER, PLATEWASHER, PLATE
-
4291401-20020-00 PIN, COTTERPIN, COTTER
-
4384M-2376E-00-00 BRACKET 1BRACKET 1
-
4484M-2377E-00-00 BRACKET 2BRACKET 2
-
4590113-06039-00 BOLT, SETBOLT, SET
-
4690384-14091-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
4795617-08655-00 BOLT, STUDBOLT, STUD
-
4895617-08640-00 BOLT, STUDBOLT, STUD
-
4992907-08600-00 WASHER, PLATEWASHER, PLATE
-
5095707-08300-00 NUT, FLANGENUT, FLANGE
