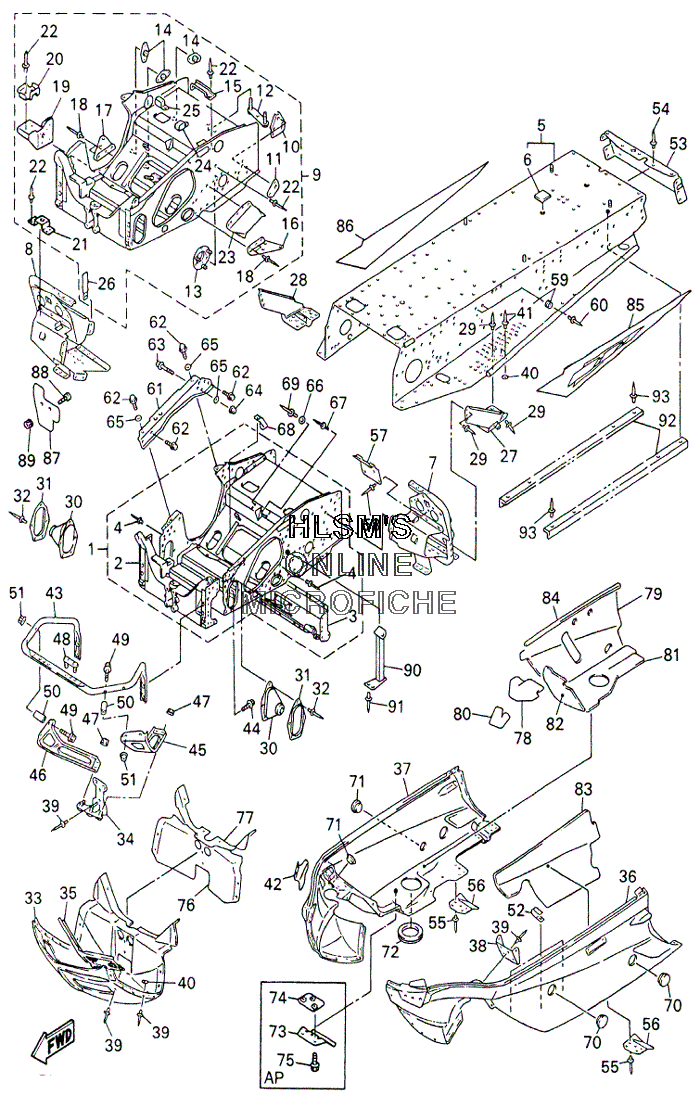

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha SRX 700 - 2002 года выпуска`
-
№АртикулНазвание
-
18DF-21940-05-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28DF-2191A-00-00 ...BULKHEAD...BULKHEAD
-
38DF-12440-02-00 ...HEAT EXCHANGER ASSY...HEAT EXCHANGER ASSY
-
490267-48016-00 ...RIVET, BLIND...RIVET, BLIND
-
58CJ-21950-09-00 REAR FRAME COMP.REAR FRAME COMP.
-
68CR-2198J-00-00 ...COVER 3...COVER 3
-
78DF-21960-09-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
88DF-21970-09-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
98DF-W2195-01-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
108CR-21943-01-00 ...BRACKET, MAIN TRACK 1...BRACKET, MAIN TRACK 1
-
118CR-21953-00-00 ...BRACKET, MAIN TRACK 2...BRACKET, MAIN TRACK 2
-
128CR-2196F-00-00 ...BRACKET 3...BRACKET 3
-
138CR-21920-00-00 ...HOUSING, REINF SUB-ASSY(L.H)...HOUSING, REINF SUB-ASSY(L.H)
-
148CR-21939-00-00 ...BRACKET, CHAIN HOUSING...BRACKET, CHAIN HOUSING
-
158CR-21977-00-00 ...CLAMP, FUEL PIPE...CLAMP, FUEL PIPE
-
168CR-21917-00-00 ...PANEL, SUB FRAME 6...PANEL, SUB FRAME 6
-
178CR-21918-00-00 ...PANEL, SUB-FRAME 7...PANEL, SUB-FRAME 7
-
1890267-48176-00 ...RIVET, BLIND...RIVET, BLIND
-
198DF-2194J-00-00 ...STAY, MUFFLER...STAY, MUFFLER
-
208DF-2197M-00-00 ...BRACKET, 6...BRACKET, 6
-
218DF-2194L-00-00 ...STAY, MUFFER...STAY, MUFFER
-
2290267-47186-00 ...RIVET, BLIND...RIVET, BLIND
-
238CR-2198G-00-00 ...COVER 2...COVER 2
-
2490461-05003-00 ...CLAMP...CLAMP
-
2590461-06142-00 ...CLAMP...CLAMP
-
2690462-05059-00 ...CLAMP...CLAMP
-
278DF-21941-00-00 PIPE, PIVOT 1PIPE, PIVOT 1
-
288DF-21951-00-00 PIPE, PIVOT 2PIPE, PIVOT 2
-
2990269-07080-00 RIVETRIVET
-
308DN-2198F-00-00 COVER 1COVER 1
-
318CR-2195E-00-00 PLATE, STRG BRACKET 1PLATE, STRG BRACKET 1
-
3290267-47197-00 RIVET, BLINDRIVET, BLIND
-
338CR-21912-11-00 PANEL, SUB FRAME 1PANEL, SUB FRAME 1
-
348CR-23788-11-00 PLATE, BACK UPPLATE, BACK UP
-
358CR-77128-00-00 LOUVER, LOWERLOUVER, LOWER
-
368DF-2196A-11-00 FRAME UNDER 1FRAME UNDER 1
-
378DF-2196E-11-00 FRAME, UNDER 2FRAME, UNDER 2
-
388CR-21972-00-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
3990267-48018-00 RIVET, BLINDRIVET, BLIND
-
4090201-05033-00 WASHER, PLATEWASHER, PLATE
-
4190267-47187-00 RIVET, BLINDRIVET, BLIND
-
428DF-2194V-02-00 BRACKET, COOLER 1BRACKET, COOLER 1
-
438CR-77512-00-00 BUMPER, FRONT 2BUMPER, FRONT 2
-
4495807-08020-00 BOLT, FLANGEBOLT, FLANGE
-
458CR-21949-10-00 BRACKET, FRONTBRACKET, FRONT
-
468CR-21959-10-00 BRACKET, FRONT BUMPERBRACKET, FRONT BUMPER
-
4795607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
488CR-2196M-00-00 BRACKET, 5BRACKET, 5
-
4995807-08040-00 BOLT, FLANGEBOLT, FLANGE
-
5090387-0810F-00 COLLARCOLLAR
-
5195707-08500-00 NUT, FLANGENUT, FLANGE
-
5290465-08146-00 CLAMPCLAMP
-
538CR-21923-02-00 REINEFORCEMENT, FRAME REAR 1REINEFORCEMENT, FRAME REAR 1
-
5490267-47195-00 RIVET, BLINDRIVET, BLIND
-
5590267-48018-00 RIVET, BLINDRIVET, BLIND
-
568CH-21978-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
578CR-21973-00-00 HOOKHOOK
-
5890267-48169-00 RIVET, BLINDRIVET, BLIND
-
5981K-2471F-00-00 BUTTONBUTTON
-
6090267-40069-00 RIVET, BLINDRIVET, BLIND
-
618CR-21921-01-00 REINEFORCEMENT, FRAME REAR 1REINEFORCEMENT, FRAME REAR 1
-
6290105-10617-00 BOLT, FLANGEBOLT, FLANGE
-
6395827-10065-00 BOLT, FLANGEBOLT, FLANGE
-
6495707-10500-00 NUT, FLANGENUT, FLANGE
-
6592907-10200-00 WASHER, PLAINWASHER, PLAIN
-
6690201-05033-00 WASHER, PLATEWASHER, PLATE
-
6790267-48177-00 RIVET, BLINDRIVET, BLIND
-
6890465-08368-00 CLAMPCLAMP
-
6990267-47187-00 RIVET, BLINDRIVET, BLIND
-
7090338-44270-00 PLUGPLUG
-
7190338-30268-00 PLUGPLUG
-
728DF-21998-10-00 SPACERSPACER
-
738DP-2197C-00-00 PROTECTOR, FRAME 3 (OPT)PROTECTOR, FRAME 3 (OPT)
-
748DP-21997-00-00 PATCH 10 (OPT)PATCH 10 (OPT)
-
7590105-06639-00 BOLT, FLANGE (OPT)BOLT, FLANGE (OPT)
-
768CR-77262-00-00 LINING, SHROUD 2LINING, SHROUD 2
-
778CR-77263-00-00 LINING, SHROUD 3LINING, SHROUD 3
-
788DF-77265-00-00 LINING, SHROUD 5LINING, SHROUD 5
-
798DF-77267-00-00 LINING, SHROUD 7LINING, SHROUD 7
-
808DF-77268-00-00 LINING,SHROUD 8LINING,SHROUD 8
-
818DF-77269-00-00 LINING,SHROUD 9LINING,SHROUD 9
-
828DF-77264-00-00 LINING, SHROUD 4LINING, SHROUD 4
-
838DF-77271-00-00 DAMPER, NOISE 11DAMPER, NOISE 11
-
848DF-7717J-00-00 TAPE,5TAPE,5
-
858EA-7711G-11-00 GRAPHIC 7GRAPHIC 7
-
868EA-7711H-11-00 GRAPHIC 8GRAPHIC 8
-
878DF-2196N-00-00 COVER, TOE HOOKCOVER, TOE HOOK
-
8898907-06012-00 SCREW, BINDSCREW, BIND
-
8995707-06500-00 NUT, FLANGENUT, FLANGE
-
908EA-2197E-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
9190267-48176-00 RIVET, BLINDRIVET, BLIND
-
928DN-21978-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
9390267-50004-00 RIVET, BLINDRIVET, BLIND
