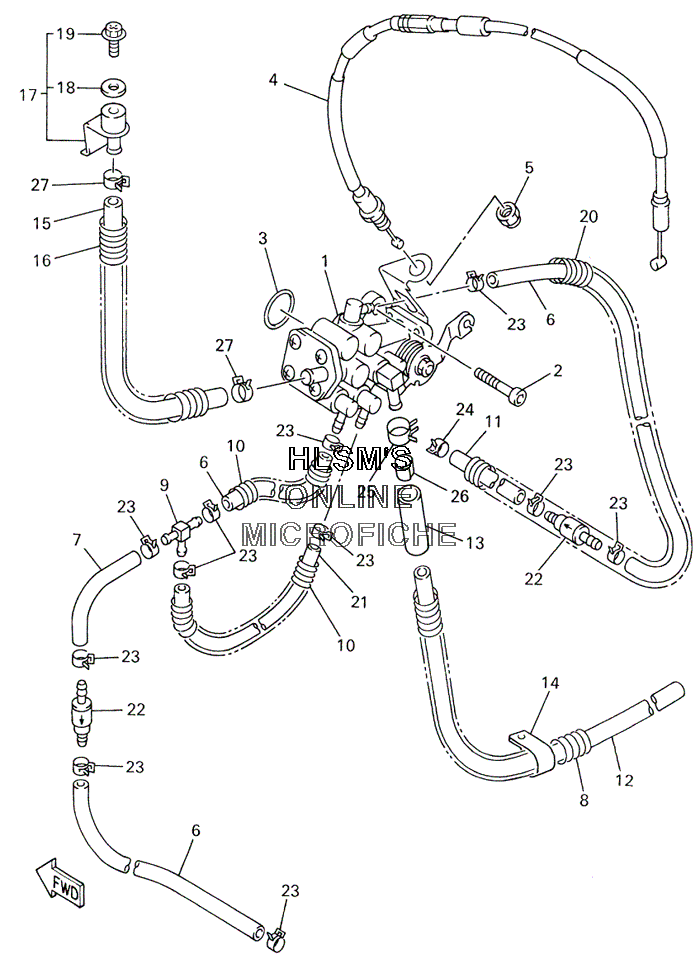

OIL PUMP ASSY для Yamaha SRX 700 - 2002 года выпуска`
-
№АртикулНазвание
-
18DN-13100-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
290110-05227-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
393210-191A1-00 O-RINGO-RING
-
48DF-26320-10-00 PUMP CABLE ASSYPUMP CABLE ASSY
-
595707-08300-00 NUT, FLANGENUT, FLANGE
-
691A30-03010-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
791A30-03006-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
890501-08430-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
98H0-24379-00-00 JOINTJOINT
-
1090501-06028-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1191A30-03008-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
1291A30-05048-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
1390445-131H1-00 HOSE (L33)HOSE (L33)
-
1490462-08237-00 CLAMPCLAMP
-
1591A30-07010-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
1690501-083G4-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
178DF-13185-00-00 BOLT, BREATHERBOLT, BREATHER
-
188DF-13187-00-00 ...GASKET, BREATHER BOLT...GASKET, BREATHER BOLT
-
198DF-13573-00-00 ...BOLT 1...BOLT 1
-
2090501-08486-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2191A30-03012-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
228CH-1316A-00-00 CHECK VALVE ASSYCHECK VALVE ASSY
-
2390468-02025-00 CLIPCLIP
-
2490467-07055-00 CLIPCLIP
-
2590467-09026-00 CLIPCLIP
-
2690468-02078-00 CLIPCLIP
-
2790467-11032-00 CLIPCLIP
