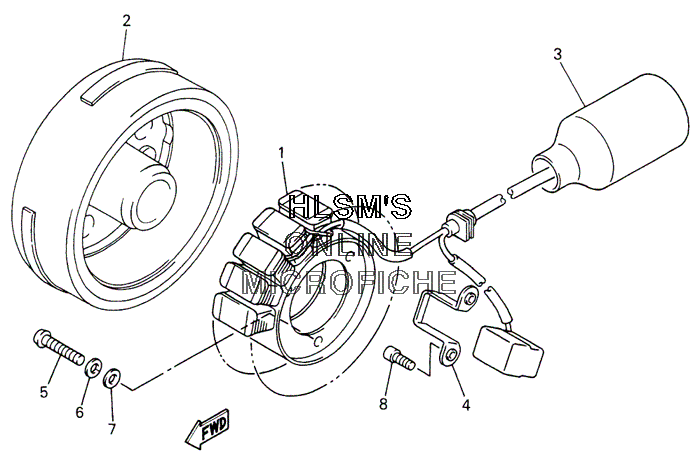

ELECTRICAL - MAGNETO ASSEMBLY для Yamaha SRX 700 - 2002 года выпуска`
-
№АртикулНазвание
-
18EK-81410-00-00 STATOR ASSYSTATOR ASSY
-
28DN-81450-00-00 ROTOR ASSYROTOR ASSY
-
38Y0-82599-00-00 COVER, CONNECTERCOVER, CONNECTER
-
490465-12011-00 CLAMPCLAMP
-
598507-06030-00 SCREW, PAN HEADSCREW, PAN HEAD
-
692907-06100-00 WASHER, SPRINGWASHER, SPRING
-
792907-06600-00 WASHER, PLATEWASHER, PLATE
-
891317-05014-00 BOLTBOLT
