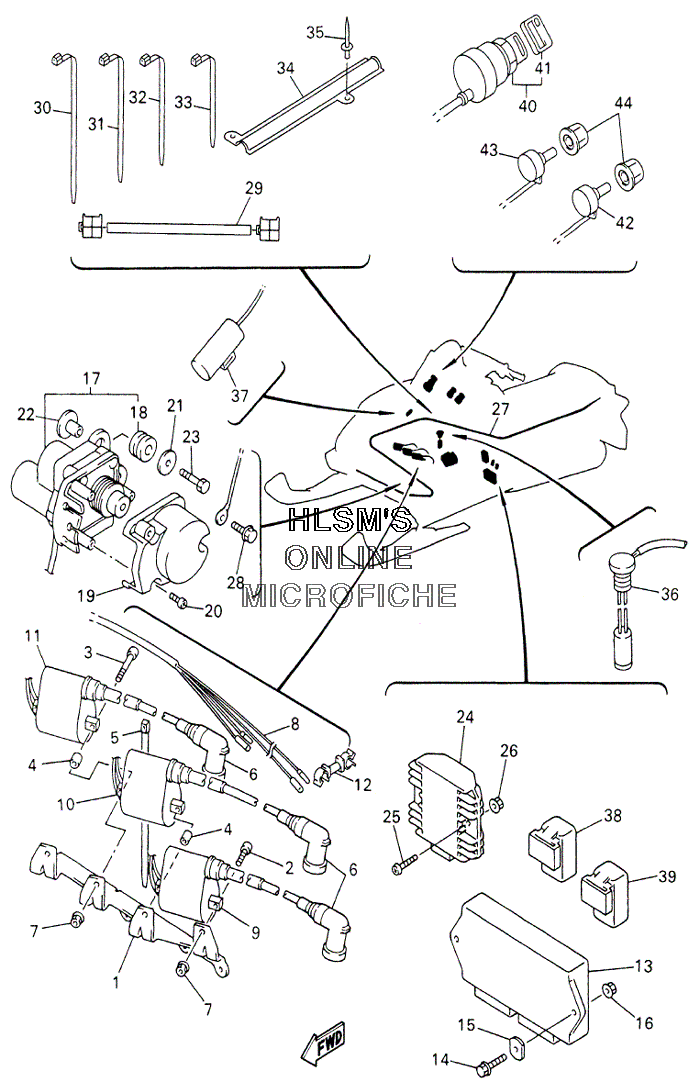

ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES для Yamaha SRX 700 - 2002 года выпуска`
-
№АртикулНазвание
-
18DF-82316-00-00 BRACKET, IGNITION COILBRACKET, IGNITION COIL
-
291317-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
391317-06040-00 BOLTBOLT
-
490387-0714B-00 COLLARCOLLAR
-
590464-15195-00 CLAMPCLAMP
-
68DF-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
795607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
88DN-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
98DF-82310-40-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
108DF-82310-20-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
118DF-82310-30-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
1290464-08001-00 CLAMPCLAMP
-
138DN-85540-20-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
1495807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1590179-06264-00 NUTNUT
-
1695707-06500-00 NUT, FLANGENUT, FLANGE
-
178DF-85820-00-00 SERVO MOTOR ASSYSERVO MOTOR ASSY
-
1890480-14023-00 ...GROMMET...GROMMET
-
198DF-85829-00-00 COVER, SERVO MOTORCOVER, SERVO MOTOR
-
2098507-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2190201-06380-00 WASHER, PLATEWASHER, PLATE
-
2290387-063G3-00 COLLARCOLLAR
-
2397007-06030-00 BOLTBOLT
-
244JH-81960-01-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
2598507-06025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2695707-06500-00 NUT, FLANGENUT, FLANGE
-
278DN-82590-20-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
2897007-06010-00 BOLTBOLT
-
298DM-8471G-00-00 WIRE, LEADWIRE, LEAD
-
3090464-12045-00 CLAMPCLAMP
-
3190464-15195-00 CLAMPCLAMP
-
3290464-13073-00 CLAMPCLAMP
-
3390464-13077-00 CLAMPCLAMP
-
348DN-21999-00-00 CLAMP, WIREHARNESSCLAMP, WIREHARNESS
-
3590267-48169-00 RIVET, BLINDRIVET, BLIND
-
368CR-85720-01-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
371NL-81965-01-00 CONDENSER, SMOOTHINGCONDENSER, SMOOTHING
-
385DM-81950-00-00 RELAY, HEADLIGHTRELAY, HEADLIGHT
-
3929U-81950-93-00 RELAY, MAIN (LOAD)RELAY, MAIN (LOAD)
-
408DM-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
41526-82579-00-00 ...CAP, KEY...CAP, KEY
-
428DM-87283-00-00 RESISTOR, VARIABLERESISTOR, VARIABLE
-
438DM-87283-10-00 RESISTOR, VARIABLERESISTOR, VARIABLE
-
448DM-87284-00-00 KNOB, VARIABLE RESISTORKNOB, VARIABLE RESISTOR
