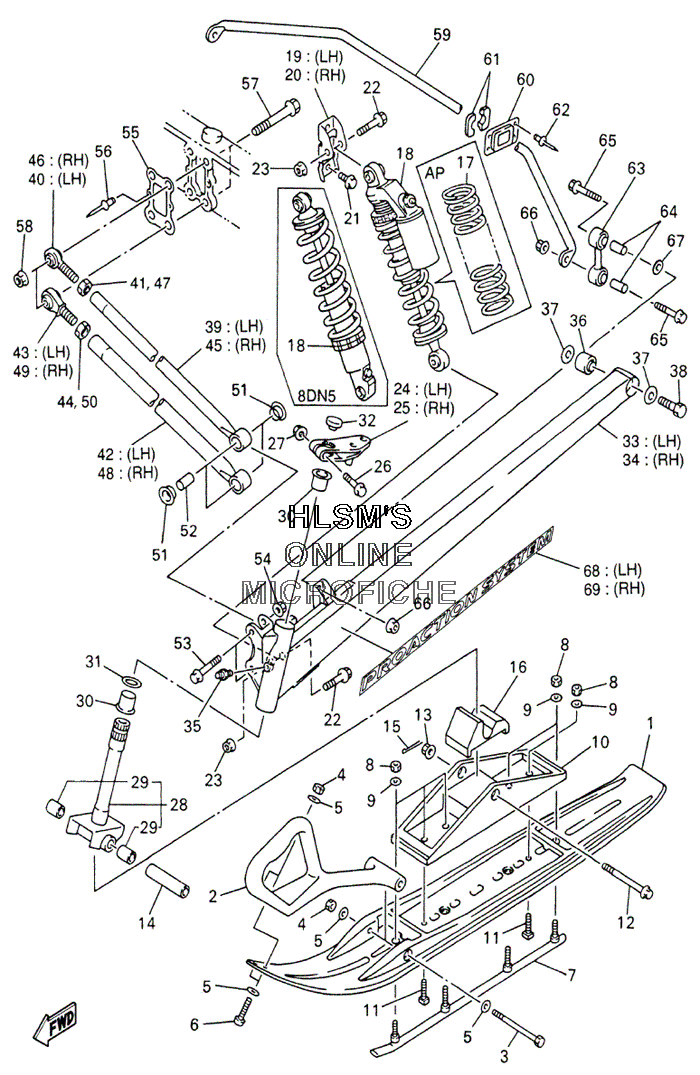

SUSPENSION - FRONT W/ SKI ASSY для Yamaha SRX 700 - 2002 года выпуска`
-
№АртикулНазвание
-
18DF-23711-10-00 SKI 1SKI 1
-
28DF-23712-00-00 RIENF., HEAD 1RIENF., HEAD 1
-
38DF-23755-00-00 BOLT, REINF. HEAD 1BOLT, REINF. HEAD 1
-
48DF-23778-00-00 NUTNUT
-
58DF-23737-00-00 WASHER 1WASHER 1
-
68DF-23756-00-00 BOLT, REINF. HEAD 2BOLT, REINF. HEAD 2
-
78DF-23731-20-00 RUNNER 1RUNNER 1
-
895707-08300-00 NUT, FLANGENUT, FLANGE
-
990201-086P8-00 WASHER, PLATEWASHER, PLATE
-
108DN-23766-00-00 SADDLE 1SADDLE 1
-
1190108-08002-00 BOLT, SQUAREBOLT, SQUARE
-
1290105-10712-00 BOLT, FLANGEBOLT, FLANGE
-
1395607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1490387-1012H-00 COLLARCOLLAR
-
1591401-20020-00 PIN, COTTERPIN, COTTER
-
168CS-23743-00-00 STOPPER 1STOPPER 1
-
178DE-23760-00-00 SPRING ASSY (K=3.2) (OHLINS)SPRING ASSY (K=3.2) (OHLINS)
-
178DF-23760-00-00 SPRING ASSY 1 (K=3.0) (OHLINS)SPRING ASSY 1 (K=3.0) (OHLINS)
-
188DN-2376A-40-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
188DW-2376A-10-00 ABSORBER ASSY (OHLINS)ABSORBER ASSY (OHLINS)
-
198DF-2376J-00-00 HOLDER, ABSORBER (KYB)HOLDER, ABSORBER (KYB)
-
208DF-2377J-00-00 HOLDER, ABSORBER 2HOLDER, ABSORBER 2
-
2195817-10025-00 BOLT, FLANGEBOLT, FLANGE
-
2290105-100A9-00 BOLT, FLANGEBOLT, FLANGE
-
2395607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
248CR-23851-00-00 ARM, OUTSIDE 1ARM, OUTSIDE 1
-
258CR-23852-00-00 ARM, OUTSIDE 2ARM, OUTSIDE 2
-
2695817-10055-00 BOLT, FLANGEBOLT, FLANGE
-
2795607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
288CR-23803-01-00 COLUMN, SKI ASSYCOLUMN, SKI ASSY
-
2990384-16251-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
3090381-25115-00 BUSH, SOLIDBUSH, SOLID
-
3190201-301G3-00 WASHER, PLATEWASHER, PLATE
-
328CR-23741-10-00 CAP 1CAP 1
-
338DF-2382E-20-00 ARM, FRONT 1 (L,H)ARM, FRONT 1 (L,H)
-
348DF-2382F-20-00 ARM, FRONT 2 (R,H)ARM, FRONT 2 (R,H)
-
3593700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
368CR-2516A-00-00 DAMPERDAMPER
-
3790201-120T5-00 WASHER, PLATEWASHER, PLATE
-
3890101-12780-00 BOLTBOLT
-
398DF-2384E-20-00 ARM, CONTROL 1ARM, CONTROL 1
-
408DN-23823-00-00 JOINT 2JOINT 2
-
4195317-12600-00 NUTNUT
-
428DF-2384F-20-00 ARM, CONTROL 2ARM, CONTROL 2
-
438DN-23832-00-00 JOINT 3JOINT 3
-
4495314-14600-00 NUTNUT
-
458DF-2384E-20-00 ARM, CONTROL 1ARM, CONTROL 1
-
468DN-23823-00-00 JOINT 2JOINT 2
-
4795317-12600-00 NUTNUT
-
488DF-2384F-20-00 ARM, CONTROL 2ARM, CONTROL 2
-
498DN-23832-00-00 JOINT 3JOINT 3
-
5095314-14600-00 NUTNUT
-
5190381-17110-00 BUSH, SOLIDBUSH, SOLID
-
5290387-1009K-00 COLLARCOLLAR
-
5390105-100A9-00 BOLT, FLANGEBOLT, FLANGE
-
5495607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
558DF-23779-00-00 WASHERWASHER
-
5690267-48057-00 RIVET, BLINDRIVET, BLIND
-
5790105-121A8-00 BOLT, FLANGEBOLT, FLANGE
-
5895607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
598CV-2386E-00-00 BAR, STABILIZER FRONTBAR, STABILIZER FRONT
-
608CR-2386H-00-00 COVER, STABILIZER FRONTCOVER, STABILIZER FRONT
-
618CR-2386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
6290267-47186-00 RIVET, BLINDRIVET, BLIND
-
638DF-2385L-00-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
6490387-087L3-00 COLLARCOLLAR
-
6590105-08345-00 BOLT, FLANGEBOLT, FLANGE
-
6695607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
6790201-086P8-00 WASHER, PLATEWASHER, PLATE
-
688EA-77371-30-00 EMBLEM 15EMBLEM 15
-
698EA-77372-30-00 EMBLEM 16EMBLEM 16
