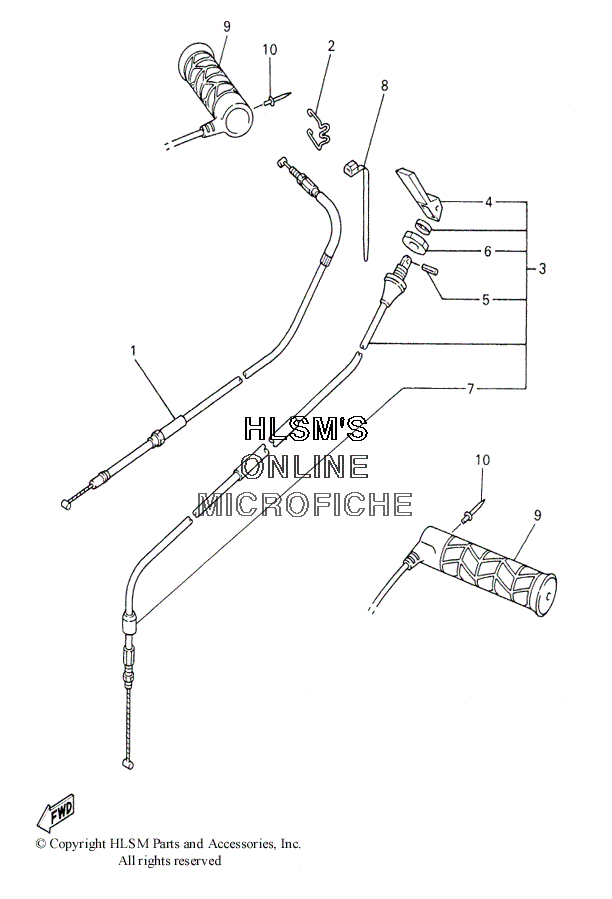

HANDLEBAR - CABLES AND GRIPS для Yamaha SRX700 - 2000 года выпуска`
-
№АртикулНазвание
-
18DN-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
28M6-26391-01-00 CLIP, CABLECLIP, CABLE
-
38CH-26330-02-00 STARTER CABLE ASSEMBLYSTARTER CABLE ASSEMBLY
-
48U9-26325-00-00 ...KNOB, STARTER...KNOB, STARTER
-
591609-30010-00 ...PIN, SPRING...PIN, SPRING
-
68G8-26333-00-00 ...NUT...NUT
-
78CR-26329-00-00 ...CAP, RUBBER...CAP, RUBBER
-
890464-13073-00 CLAMPCLAMP
-
98DN-26240-00-00 GRIP ASSEMBLYGRIP ASSEMBLY
-
1090267-48004-00 RIVET, BLINDRIVET, BLIND
Все узлы модели:
- ALTERNATE (BODY/RIG)
- BELT GUARD W/ TOOL BOX
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CARBURETOR ASSY
- CHAINCASE - SPROCKET AND CHAINS (OPTION)
- CHAINCASE ASSY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - TUNE-UP KIT (OPTION)
- CLUTCH - WEIGHTS AND SPRINGS (OPTION)
- CONSOLE - INSTRUMENT PANEL
- COOLING SYSTEM
- CRANKCASE ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- DECALS
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - INSTRUMENTS
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FUEL TANK ASSY
- • HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HANDLEBAR PAD W/ STEERING GATE
- HIGH-BACK DOUBLE SEAT ASSY.
- HOOD - WINDSHIELD ASSY
- HOOD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- LOW-BACK DOUBLE SEAT ASSY.
- OIL PUMP ASSY
- OIL TANK ASSY
- REFLECTOR ASSY
- SEAT ASSY
- STARTER - RECOIL
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- SUSPENSION - REAR SPRINGS
- SUSPENSION - TORQUE ARM ASSY
- TUNNEL ASSEMBLY W/ LOWER NOSEPAN
- WATER PUMP ASSY
