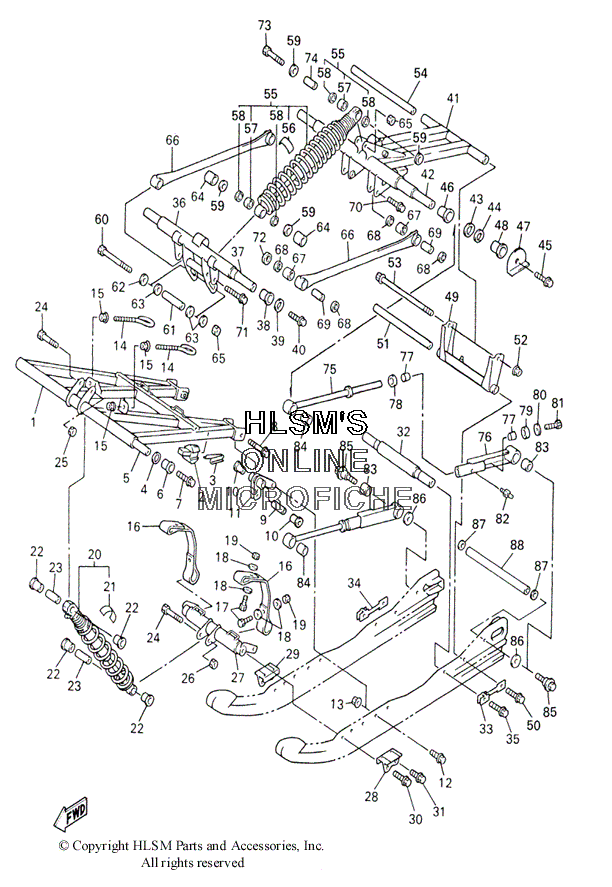

SUSPENSION - TORQUE ARM ASSY для Yamaha SRX700 - 2000 года выпуска`
-
№АртикулНазвание
-
18DN-47331-00-00 ARM, PIVOT 1ARM, PIVOT 1
-
28DF-47456-30-00 DAMPER 1DAMPER 1
-
38DF-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
490201-210U0-00 WASHER, PLATEWASHER, PLATE
-
58CR-47465-00-00 SHAFT 1SHAFT 1
-
690381-19111-00 BUSH, SOLIDBUSH, SOLID
-
790105-103A1-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
890105-10769-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
990387-1009T-00 COLLARCOLLAR
-
1090381-15112-00 BUSH, SOLIDBUSH, SOLID
-
118CR-47415-00-00 BRACKET 1BRACKET 1
-
1295817-10025-00 BOLT, FLANGEBOLT, FLANGE
-
1395607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
148CR-47448-00-00 HOOK 3HOOK 3
-
1595707-08500-00 NUT, FLANGENUT, FLANGE
-
168CR-47495-00-00 STOPPER 1STOPPER 1
-
1797007-06025-00 BOLTBOLT
-
1890201-06747-00 WASHER, PLATEWASHER, PLATE
-
1995707-06300-00 NUT, FLANGENUT, FLANGE
-
208DW-47481-00-00 SHOCK ABSORBER 2SHOCK ABSORBER 2
-
214AA-22259-60-00 ...LABEL, WARNING...LABEL, WARNING
-
2290381-14101-00 BUSH, SOLIDBUSH, SOLID
-
2390387-105G5-00 COLLARCOLLAR
-
2490101-10738-00 BOLTBOLT
-
2590185-10110-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2695607-10100-00 NUT, UNUT, U
-
278EA-47418-00-00 BRACKET 4BRACKET 4
-
288DF-47463-01-00 BRACKET 5BRACKET 5
-
298DF-47464-01-00 BRACKET 6BRACKET 6
-
3090105-10433-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
3190105-08450-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
328DF-47486-00-00 SHAFT 4SHAFT 4
-
338DF-47374-00-00 WASHER 1WASHER 1
-
348DF-47375-00-00 WASHER 2WASHER 2
-
3590105-10433-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
368CR-47416-10-00 BRACKET 2BRACKET 2
-
378CR-47488-00-00 SHAFT 6SHAFT 6
-
3890381-22099-00 BUSH, SOLIDBUSH, SOLID
-
3990201-207J5-00 WASHER, PLATEWASHER, PLATE
-
4090105-103A1-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
418CR-47332-10-00 ARM, PIVOT 2ARM, PIVOT 2
-
428CV-47475-00-00 SHAFT 2SHAFT 2
-
4390201-251G8-00 WASHER, PLATEWASHER, PLATE
-
4490201-250T6-00 WASHER, PLATEWASHER, PLATE
-
4590105-103A1-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
4690381-28108-00 BUSH, SOLIDBUSH, SOLID
-
478CR-47426-10-00 BRACKET, REAR 1BRACKET, REAR 1
-
488CR-47425-00-00 BRACKET, REAR 2BRACKET, REAR 2
-
498CR-47417-00-00 BRACKET 3BRACKET 3
-
5090105-10433-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
5182M-47485-02-00 SHAFT 3SHAFT 3
-
5295607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5395827-08220-00 BOLT, FLANGEBOLT, FLANGE
-
5490387-083G6-00 COLLARCOLLAR
-
558DW-47480-00-00 SHOCK ABSORBERSHOCK ABSORBER
-
564AA-22259-60-00 ...LABEL, WARNING...LABEL, WARNING
-
5793315-21454-00 ...BEARING...BEARING
-
5893109-14021-00 ...OIL SEAL, SDO-TYPE...OIL SEAL, SDO-TYPE
-
5990202-14226-00 WASHER, PLATEWASHER, PLATE
-
608AC-4631K-00-00 BOLT, ADJUSTINGBOLT, ADJUSTING
-
6190387-1009S-00 COLLARCOLLAR
-
6290201-103U4-00 WASHER, PLATEWASHER, PLATE
-
6390201-100U1-00 WASHER, PLATEWASHER, PLATE
-
6490387-1404R-00 COLLARCOLLAR
-
6595607-10100-00 NUT, UNUT, U
-
668CX-47494-01-00 ROD, RELAYROD, RELAY
-
6793315-21455-00 BEARINGBEARING
-
6893109-14021-00 OIL SEAL, SDO-TYPEOIL SEAL, SDO-TYPE
-
6990387-1007M-00 COLLARCOLLAR
-
7090105-10739-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
7190105-10436-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
7290201-100U1-00 WASHER, PLATEWASHER, PLATE
-
7390101-10738-00 BOLTBOLT
-
7490387-1007N-00 COLLARCOLLAR
-
758ED-4745A-00-00 ROD, CONTROL 1ROD, CONTROL 1
-
768CR-4745B-00-00 ROD, CONTROL 2ROD, CONTROL 2
-
7790384-16251-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
7890202-16233-00 WASHER, PLATEWASHER, PLATE
-
7990202-16230-00 WASHER, PLATEWASHER, PLATE
-
8090201-106F2-00 WASHER, PLATEWASHER, PLATE
-
8197027-10025-00 BOLTBOLT
-
8293700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
8390380-22232-00 BUSH, SOLIDBUSH, SOLID
-
8490380-28235-00 BUSH, SOLIDBUSH, SOLID
-
858DF-47367-00-00 SCREW, REAR PIVOTSCREW, REAR PIVOT
-
8690201-100S2-00 WASHER, PLATEWASHER, PLATE
-
8790201-10136-00 WASHER, PLATEWASHER, PLATE
-
8882M-47485-02-00 SHAFT 3SHAFT 3
