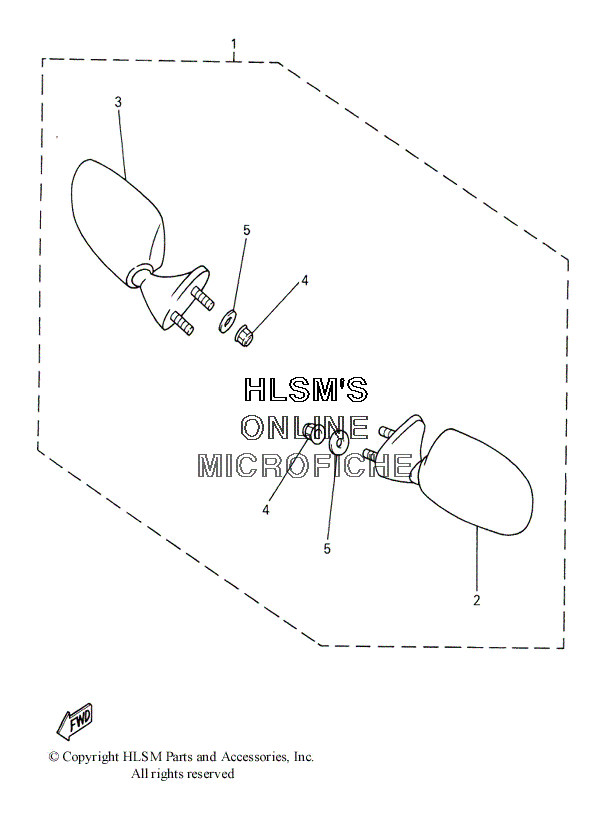

ALTERNATE (BODY/RIG) для Yamaha SRX700 - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    8CR-W2628-00-00 REAR VIEW MIRROR SET (AP)
    REAR VIEW MIRROR SET (AP)
  • 2
    4SV-26280-00-00 ...REAR VIEW MIRROR ASSEMBLY (LEFT)
    ...REAR VIEW MIRROR ASSEMBLY (LEFT)
  • 3
    4SV-26290-00-00 ...REAR VIEW MIRROR ASSEMBLY (RIGHT)
    ...REAR VIEW MIRROR ASSEMBLY (RIGHT)
  • 4
    95607-06200-00 ...NUT, SELF U-FLANGE
    ...NUT, SELF U-FLANGE
  • 5
    90201-06072-00 ...WASHER, PLATE
    ...WASHER, PLATE
