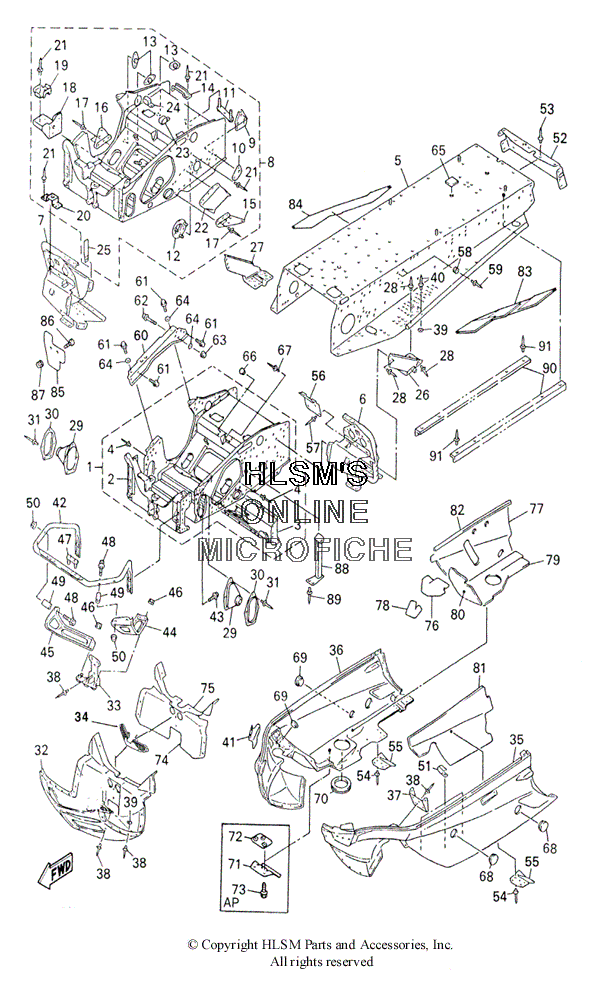

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha SRX700 - 2000 года выпуска`
-
№АртикулНазвание
-
18DF-21940-07-00 FRONT FRAME COMPFRONT FRAME COMP
-
28DF-2191A-00-00 ...BULKHEAD...BULKHEAD
-
38DF-12440-01-00 ...HEAT EXCHANGER ASSEMBLY...HEAT EXCHANGER ASSEMBLY
-
490267-48176-00 ...RIVET, BLIND (UN)...RIVET, BLIND (UN)
-
490267-48177-00 ...RIVET, BLIND (UN)...RIVET, BLIND (UN)
-
58DF-21950-07-00 REAR FRAME COMPREAR FRAME COMP
-
68DF-21960-09-00 FOOTREST COMP 1FOOTREST COMP 1
-
78DF-21970-09-00 FOOTREST COMP 2FOOTREST COMP 2
-
88DF-W2195-01-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
98CR-21943-01-00 ...BRACKET, MAIN TRACK 1...BRACKET, MAIN TRACK 1
-
108CR-21953-00-00 ...BRACKET, MAIN TRACK 2...BRACKET, MAIN TRACK 2
-
118CR-2196F-00-00 ...BRACKET 3...BRACKET 3
-
128CR-21920-00-00 ...HOUSING, REINF SUB-ASSEMBLY (L.H)...HOUSING, REINF SUB-ASSEMBLY (L.H)
-
138CR-21939-00-00 ...BRACKET, CHAIN HOUSING...BRACKET, CHAIN HOUSING
-
148CR-21977-00-00 ...CLAMP, FUEL PIPE...CLAMP, FUEL PIPE
-
158CR-21917-00-00 ...PANEL, SUB FRAME 6...PANEL, SUB FRAME 6
-
168CR-21918-00-00 ...PANEL, SUB-FRAME 7...PANEL, SUB-FRAME 7
-
1790267-48176-00 ...RIVET, BLIND...RIVET, BLIND
-
188DF-2194J-00-00 ...STAY, MUFFLER...STAY, MUFFLER
-
198DF-2197M-00-00 ...BRACKET, 6...BRACKET, 6
-
208DF-2194L-00-00 ...STAY, MUFFER...STAY, MUFFER
-
2190267-47186-00 ...RIVET, BLIND (UN) (QTY:160)...RIVET, BLIND (UN) (QTY:160)
-
228CR-2198G-00-00 ...COVER 2...COVER 2
-
2390461-05003-00 ...CLAMP...CLAMP
-
2490461-06142-00 ...CLAMP...CLAMP
-
2590462-05059-00 ...CLAMP...CLAMP
-
268DF-21941-00-00 PIPE, PIVOT 1PIPE, PIVOT 1
-
278DF-21951-00-00 PIPE, PIVOT 2PIPE, PIVOT 2
-
2890269-07080-00 RIVETRIVET
-
298DN-2198F-00-00 COVER 1COVER 1
-
308CR-2195E-00-00 PLATE, STRG BRACKET 1PLATE, STRG BRACKET 1
-
3190267-48165-00 RIVET, BLINDRIVET, BLIND
-
328CR-21912-11-00 PANEL, SUB FRAME 1PANEL, SUB FRAME 1
-
338CR-23788-11-00 PLATE, BACK UPPLATE, BACK UP
-
348CR-77128-00-00 STAY 4STAY 4
-
358DF-2196A-11-00 FRAME UNDER 1FRAME UNDER 1
-
368DF-2196E-11-00 FRAME, UNDER 2FRAME, UNDER 2
-
378CR-21972-00-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
3890267-48141-00 RIVET, BLINDRIVET, BLIND
-
3990201-05033-00 WASHER, PLATEWASHER, PLATE
-
4090267-47187-00 RIVET, BLINDRIVET, BLIND
-
418DF-2194V-02-00 BRACKET, COOLER 1BRACKET, COOLER 1
-
428CR-77512-00-00 BUMPER, FRONT 2BUMPER, FRONT 2
-
4395807-08020-00 BOLT, FLANGEBOLT, FLANGE
-
448CR-21949-10-00 BRACKET, FRONTBRACKET, FRONT
-
458CR-21959-10-00 BRACKET, FRONT BUMPERBRACKET, FRONT BUMPER
-
4695607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
478CR-2196M-00-00 BRACKET, 5BRACKET, 5
-
4895807-08040-00 BOLT, FLANGEBOLT, FLANGE
-
4990387-0810F-00 COLLARCOLLAR
-
5095707-08500-00 NUT, FLANGENUT, FLANGE
-
5190465-08146-00 CLAMPCLAMP
-
528CR-21923-02-00 REINEFORCEMENT, FRAME REAR 1REINEFORCEMENT, FRAME REAR 1
-
5390267-47186-00 RIVET, BLINDRIVET, BLIND
-
5490267-48141-00 RIVET, BLINDRIVET, BLIND
-
558CH-21978-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
568CR-21973-00-00 HOOKHOOK
-
5790267-48169-00 RIVET, BLINDRIVET, BLIND
-
5881K-2471F-00-00 BUTTONBUTTON
-
5990267-40069-00 RIVET, BLINDRIVET, BLIND
-
608CR-21921-01-00 REINEFORCEMENT, FRAME REAR 1REINEFORCEMENT, FRAME REAR 1
-
6190105-10617-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
6295827-10065-00 BOLT, FLANGEBOLT, FLANGE
-
6395707-10500-00 NUT, FLANGENUT, FLANGE
-
6492907-10200-00 WASHER, PLAINWASHER, PLAIN
-
658DP-2198J-00-00 COVER 3COVER 3
-
6690338-10004-00 PLUGPLUG
-
6790267-48177-00 RIVET, BLINDRIVET, BLIND
-
6890338-44270-00 PLUGPLUG
-
6990338-30268-00 PLUGPLUG
-
708DF-21998-10-00 SPACERSPACER
-
718DP-2197C-00-00 PROTECTOR, FRAME 3 (AP)PROTECTOR, FRAME 3 (AP)
-
728DP-21997-00-00 PATCH 0 (AP)PATCH 0 (AP)
-
7390105-06639-00 BOLT, WASHER BASED (AP)BOLT, WASHER BASED (AP)
-
748CR-77262-00-00 LINING, SHROUD 2LINING, SHROUD 2
-
758CR-77263-00-00 LINING, SHROUD 3LINING, SHROUD 3
-
768DF-77265-00-00 LINING, SHROUD 5LINING, SHROUD 5
-
778DF-77267-00-00 LINING, SHROUD 7LINING, SHROUD 7
-
788DF-77268-00-00 LINING, SHROUD 8LINING, SHROUD 8
-
798DF-77269-00-00 LINING, SHROUD 9LINING, SHROUD 9
-
808DF-77264-00-00 LINING, SHROUD 4LINING, SHROUD 4
-
818DF-77271-00-00 DAMPER, NOISE 1DAMPER, NOISE 1
-
828DF-7717J-00-00 TAPE, 5TAPE, 5
-
838EA-77351-10-00 EMBLEM 1EMBLEM 1
-
848EA-77352-10-00 EMBLEM 2EMBLEM 2
-
858DF-2196N-00-00 COVER, TOE HOOKCOVER, TOE HOOK
-
8698907-06012-00 SCREW, BINDSCREW, BIND
-
8795707-06500-00 NUT, FLANGENUT, FLANGE
-
888EA-2197E-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
8990267-48176-00 RIVET, BLINDRIVET, BLIND
-
908DN-21978-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
9190267-50004-00 RIVET, BLINDRIVET, BLIND
