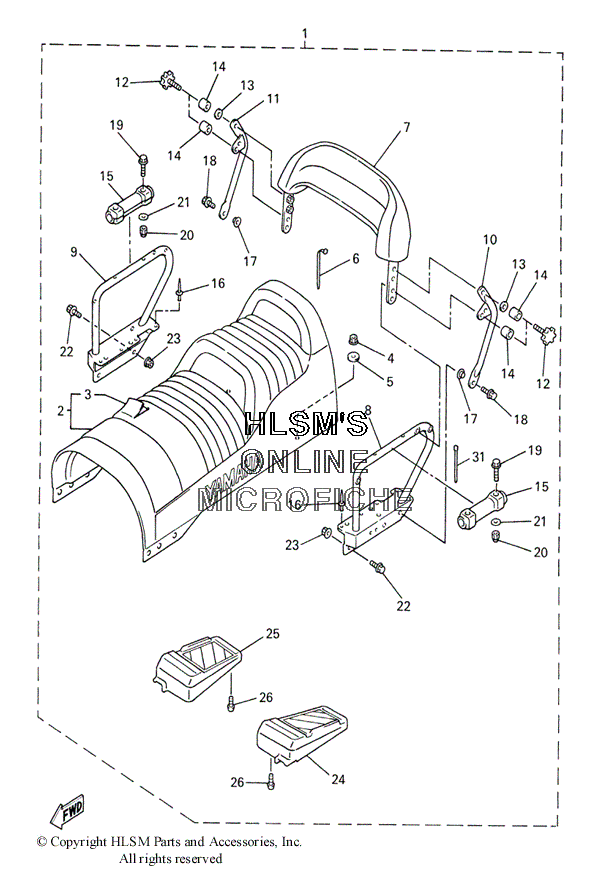

LOW-BACK DOUBLE SEAT ASSY. для Yamaha SRX700 - 2000 года выпуска`
-
№АртикулНазвание
-
18DNN-W2473-00-00 SEMI-DOUBLE SEAT ASSEMBLY (AP)SEMI-DOUBLE SEAT ASSEMBLY (AP)
-
28CW-24730-30-00 ...DOUBLE SEAT ASSEMBLY...DOUBLE SEAT ASSEMBLY
-
38CW-2470F-20-00 ......COVER, SEAT......COVER, SEAT
-
495707-08300-00 ...NUT, FLANGE...NUT, FLANGE
-
590201-086A3-00 ...WASHER, PLATE...WASHER, PLATE
-
690464-13073-00 ...CLAMP...CLAMP
-
78CW-24790-10-00 ...SEAT BACK ASSEMBLY...SEAT BACK ASSEMBLY
-
88CW-2474H-01-00 ...BRACKET, ASSIST GRIP 1...BRACKET, ASSIST GRIP 1
-
98CW-2474J-01-00 ...BRACKET, ASSIST GRIP 2...BRACKET, ASSIST GRIP 2
-
108CW-24797-00-00 ...BRACKET, SEAT BACK...BRACKET, SEAT BACK
-
118CW-2479L-00-00 ...BRACKET, SEAT...BRACKET, SEAT
-
128CW-2479H-00-00 ...BODY, SEAT LOCK...BODY, SEAT LOCK
-
1390201-083A8-00 ...WASHER, PLATE...WASHER, PLATE
-
148CW-24737-00-00 ...DAMPER, SEAT...DAMPER, SEAT
-
158CW-2474A-00-00 ...ASSIST, GRIP...ASSIST, GRIP
-
1690267-47187-00 ...RIVET, BLIND...RIVET, BLIND
-
1790560-08066-00 ...SPACER...SPACER
-
1895807-08016-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1995807-06040-00 ...BOLT, FLANGE...BOLT, FLANGE
-
2095307-06800-00 ...NUT...NUT
-
2192907-06200-00 ...WASHER...WASHER
-
2295807-08014-00 ...BOLT, FLANGE...BOLT, FLANGE
-
2395707-08500-00 ...NUT, FLANGE...NUT, FLANGE
-
248DM-27431-00-00 ...FOOTREST, REAR 1...FOOTREST, REAR 1
-
258DM-27441-00-00 ...FOOTREST, REAR 2...FOOTREST, REAR 2
-
2697707-50020-00 ...SCREW, TAPPING...SCREW, TAPPING
