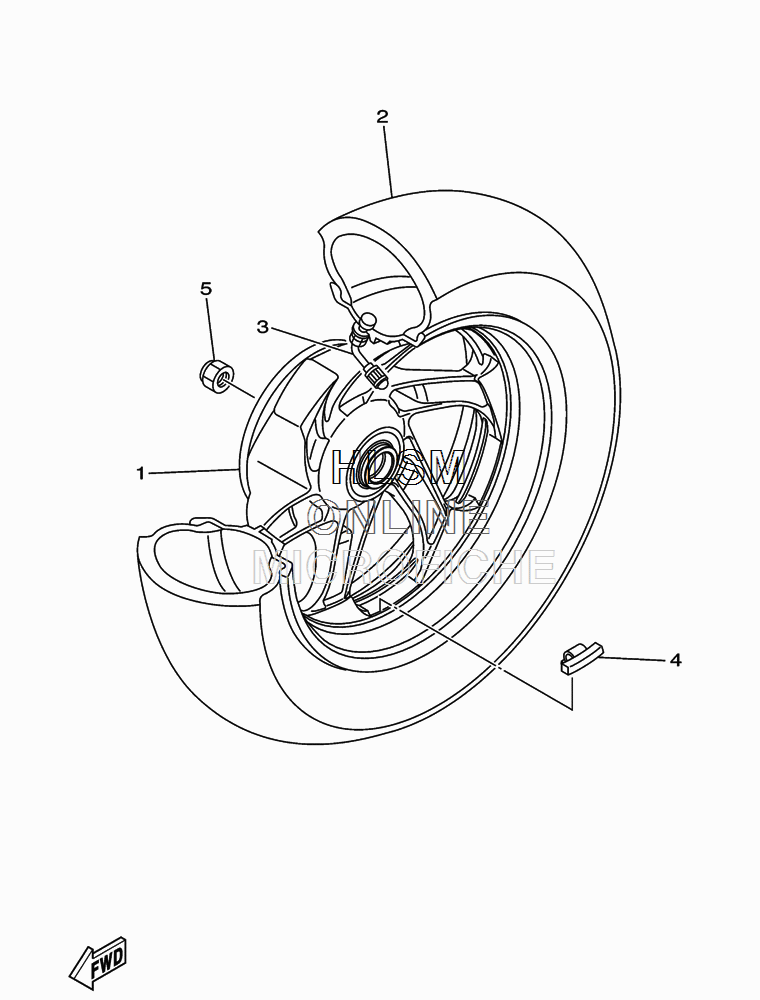

WHEEL - REAR для Yamaha MAJESTY - 2010 года выпуска`
-
№АртикулНазвание
-
15RU-25338-00-00 CAST WHEEL, REARCAST WHEEL, REAR
-
294115-13008-00 TIRE (150/70-M/C 64S MB67)TIRE (150/70-M/C 64S MB67)
-
294115-13012-00 TIRE (150/70-13M/C 64S D305) (DUNLOP)TIRE (150/70-13M/C 64S D305) (DUNLOP)
-
393900-00025-00 VALVE, RIM (PVR59A)VALVE, RIM (PVR59A)
-
45MT-25398-00-00 BALANCER, WHEEL (10G)BALANCER, WHEEL (10G)
-
45MT-25398-10-00 BALANCER, WHEEL (20G)BALANCER, WHEEL (20G)
-
45MT-25398-20-00 BALANCER, WHEEL (30G)BALANCER, WHEEL (30G)
-
590185-14011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
