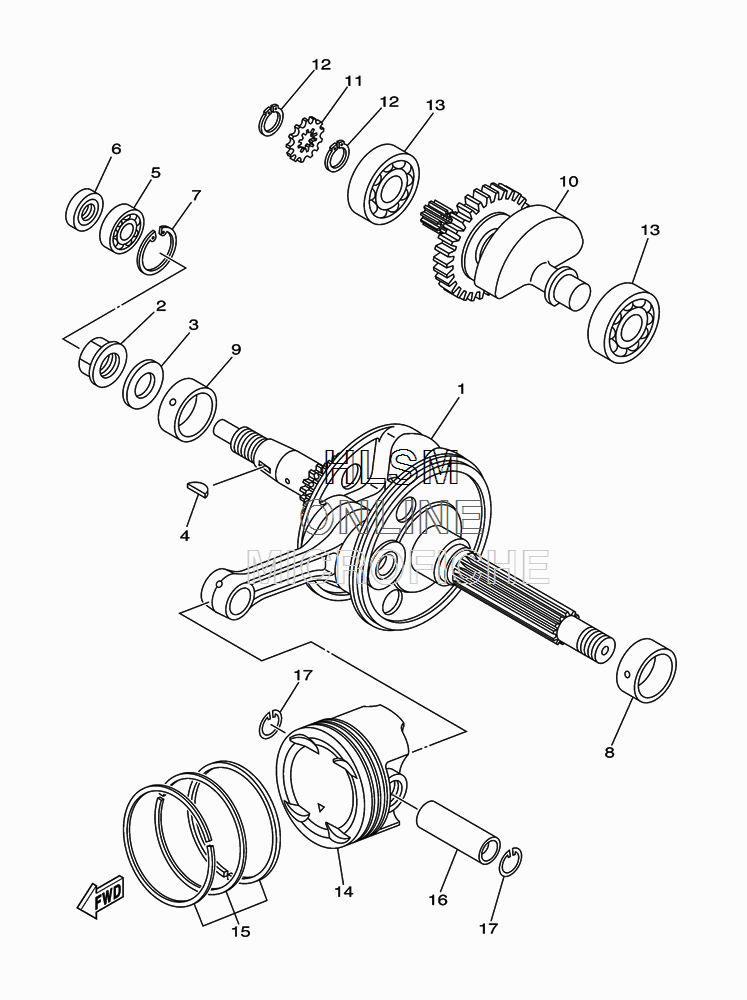

CRANKSHAFT W/ PISTON ASSY. для Yamaha MAJESTY - 2010 года выпуска`
-
№АртикулНазвание
-
15RU-11400-10-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
290179-18004-00 NUTNUT
-
390201-18016-00 WASHER, PLATEWASHER, PLATE
-
490280-05001-00 KEY, WOODRUFFKEY, WOODRUFF
-
593306-20116-00 BEARINGBEARING
-
693101-12002-00 OIL SEALOIL SEAL
-
799009-32500-00 CIRCLIPCIRCLIP
-
85RU-11416-10-00 PLANE BEARING, CRANKSHAFT 1 (BLACK)PLANE BEARING, CRANKSHAFT 1 (BLACK)
-
85RU-11416-20-00 PLANE BEARING, CRANKSHAFT 1 (BROWN)PLANE BEARING, CRANKSHAFT 1 (BROWN)
-
85RU-11416-30-00 PLANE BEARING, CRANKSHAFT 1 (GREEN)PLANE BEARING, CRANKSHAFT 1 (GREEN)
-
85RU-11416-A0-00 PLANE BEARING, CRANKSHAFT 1 (WHITE)PLANE BEARING, CRANKSHAFT 1 (WHITE)
-
85RU-11416-00-00 PLANE BEARING, CRANKSHAFT 1 (BLUE)PLANE BEARING, CRANKSHAFT 1 (BLUE)
-
95RU-11417-30-00 PLANE BEARING, CRANKSHAFT 2 (GREEN)PLANE BEARING, CRANKSHAFT 2 (GREEN)
-
95RU-11417-A0-00 PLANE BEARING, CRANKSHAFT 2 (WHITE)PLANE BEARING, CRANKSHAFT 2 (WHITE)
-
95RU-11417-20-00 PLANE BEARING, CRANKSHAFT 2 (BROWN)PLANE BEARING, CRANKSHAFT 2 (BROWN)
-
95RU-11417-10-00 PLANE BEARING, CRANKSHAFT 2 (BLACK)PLANE BEARING, CRANKSHAFT 2 (BLACK)
-
95RU-11417-00-00 PLANE BEARING, CRANKSHAFT 2 (BLUE)PLANE BEARING, CRANKSHAFT 2 (BLUE)
-
105RU-11500-00-00 BALANCER ASSYBALANCER ASSY
-
115RU-13354-00-00 SPROCKET, DRIVESPROCKET, DRIVE
-
1299009-17800-00 CIRCLIPCIRCLIP
-
1393306-30438-00 BEARINGBEARING
-
145RU-11636-09-00 PISTON (0.50MM O/S)PISTON (0.50MM O/S)
-
145RU-11631-00-A0 PISTON (STD)PISTON (STD)
-
155RU-11603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
155RU-11605-09-00 PISTON RING SET (0.50MM O/S)PISTON RING SET (0.50MM O/S)
-
165RU-11633-00-00 PIN, PISTONPIN, PISTON
-
1793450-22027-00 CIRCLIPCIRCLIP
