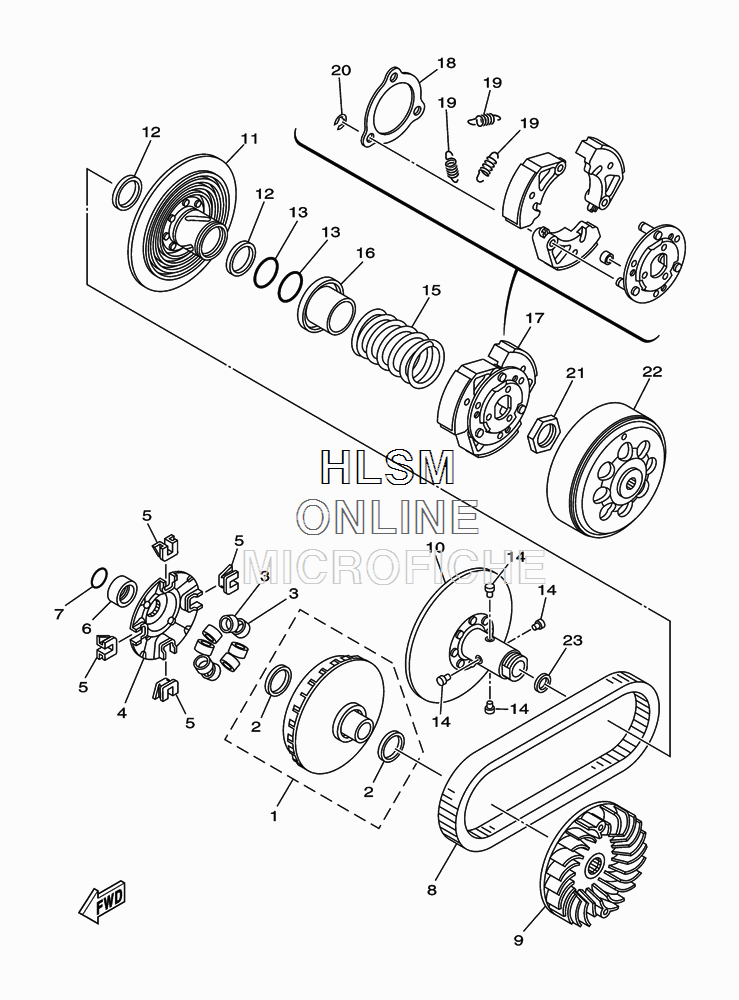

CLUTCH ASSY. для Yamaha MAJESTY - 2010 года выпуска`
-
№АртикулНазвание
-
15RU-W1762-12-00 PRIMARY SHEAVE CAP COMP.PRIMARY SHEAVE CAP COMP.
-
293101-35001-00 OIL SEALOIL SEAL
-
35RU-17632-00-00 WEIGHTWEIGHT
-
45RU-17623-10-00 CAMCAM
-
55VU-17653-00-00 SLIDERSLIDER
-
690387-27001-00 COLLARCOLLAR
-
793210-27ME3-00 O-RINGO-RING
-
85RU-17641-00-00 V-BELTV-BELT
-
95RU-17611-00-00 SHEAVE, PRIMARY FIXEDSHEAVE, PRIMARY FIXED
-
105RU-17660-01-00 SECONDARY FIXED SHEAVE COMP.SECONDARY FIXED SHEAVE COMP.
-
115RU-17670-01-00 SECONDARY SLIDING SHEAVESECONDARY SLIDING SHEAVE
-
1293104-41119-00 OIL SEALOIL SEAL
-
1393210-43713-00 O-RINGO-RING
-
144CW-17664-00-00 PIN, GUIDEPIN, GUIDE
-
1590501-550A1-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
165RU-17690-00-00 SPRING SEAT COMP.SPRING SEAT COMP.
-
175RU-16620-10-00 CLUTCH CARRIER ASSYCLUTCH CARRIER ASSY
-
185RU-16523-00-00 PLATE, WEIGHT THRUSTPLATE, WEIGHT THRUST
-
195RU-16626-01-00 SPRING, CLUTCH WEIGHT 1SPRING, CLUTCH WEIGHT 1
-
2099001-08600-00 CIRCLIPCIRCLIP
-
2190170-36279-00 NUTNUT
-
225RU-16611-00-00 CLUTCH HOUSING COMP.CLUTCH HOUSING COMP.
-
2390201-17485-00 WASHER, PLATEWASHER, PLATE
