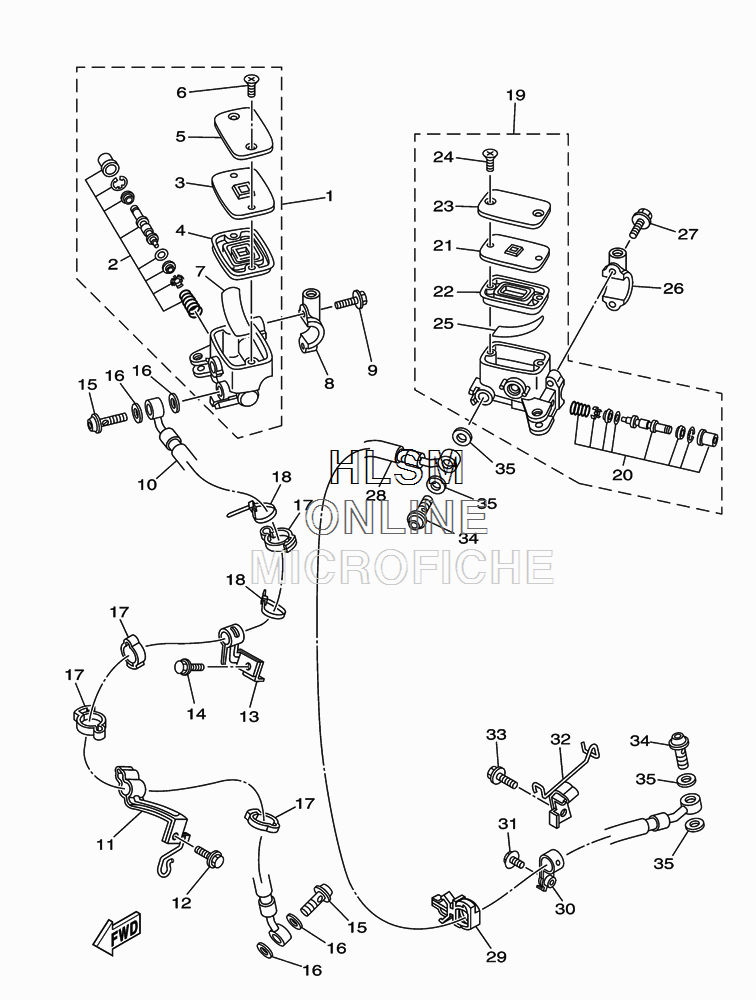

BRAKE - FRONT MASTER CYLINDER для Yamaha MAJESTY - 2010 года выпуска`
-
№АртикулНазвание
-
15VU-25870-00-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
25VU-W0041-00-00 CYLINDER KIT, MASTERCYLINDER KIT, MASTER
-
35VU-25855-00-00 BUSH,DIAPHRAGMBUSH,DIAPHRAGM
-
45VU-25854-00-00 GASKET, DIAPHRAGMGASKET, DIAPHRAGM
-
55VU-25852-00-00 CAP, RESERVOIRCAP, RESERVOIR
-
636Y-2589H-00-00 SCREWSCREW
-
73YX-25896-00-00 PLATE, RESERVOIRPLATE, RESERVOIR
-
85RU-25867-10-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
995027-06030-00 BOLT, FLANGEBOLT, FLANGE
-
105RU-25872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
115RU-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
1295802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
135RU-25887-00-00 HOLDER, BRAKE HOSE 3HOLDER, BRAKE HOSE 3
-
1495802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1590401-10020-00 BOLT, UNIONBOLT, UNION
-
1690430-10005-00 GASKETGASKET
-
1790465-14310-00 CLAMPCLAMP
-
1890464-16061-00 CLAMPCLAMP
-
195RU-25870-10-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
205VU-W0041-00-00 CYLINDER KIT, MASTERCYLINDER KIT, MASTER
-
215VU-25855-00-00 BUSH,DIAPHRAGMBUSH,DIAPHRAGM
-
225VU-25854-00-00 GASKET, DIAPHRAGMGASKET, DIAPHRAGM
-
235VU-25852-00-00 CAP, RESERVOIRCAP, RESERVOIR
-
2436Y-2589H-00-00 SCREWSCREW
-
253YX-25896-00-00 PLATE, RESERVOIRPLATE, RESERVOIR
-
265RU-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
2795027-06030-00 BOLT, FLANGEBOLT, FLANGE
-
285RU-25873-30-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
2990464-20237-00 CLAMPCLAMP
-
305RU-2588G-00-00 HOLDER, BRAKE HOSE 6HOLDER, BRAKE HOSE 6
-
3190119-06133-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
325RU-25875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
3395802-06016-00 BOLT, FLANGEBOLT, FLANGE
-
3490401-10020-00 BOLT, UNIONBOLT, UNION
-
3590430-10005-00 GASKETGASKET
