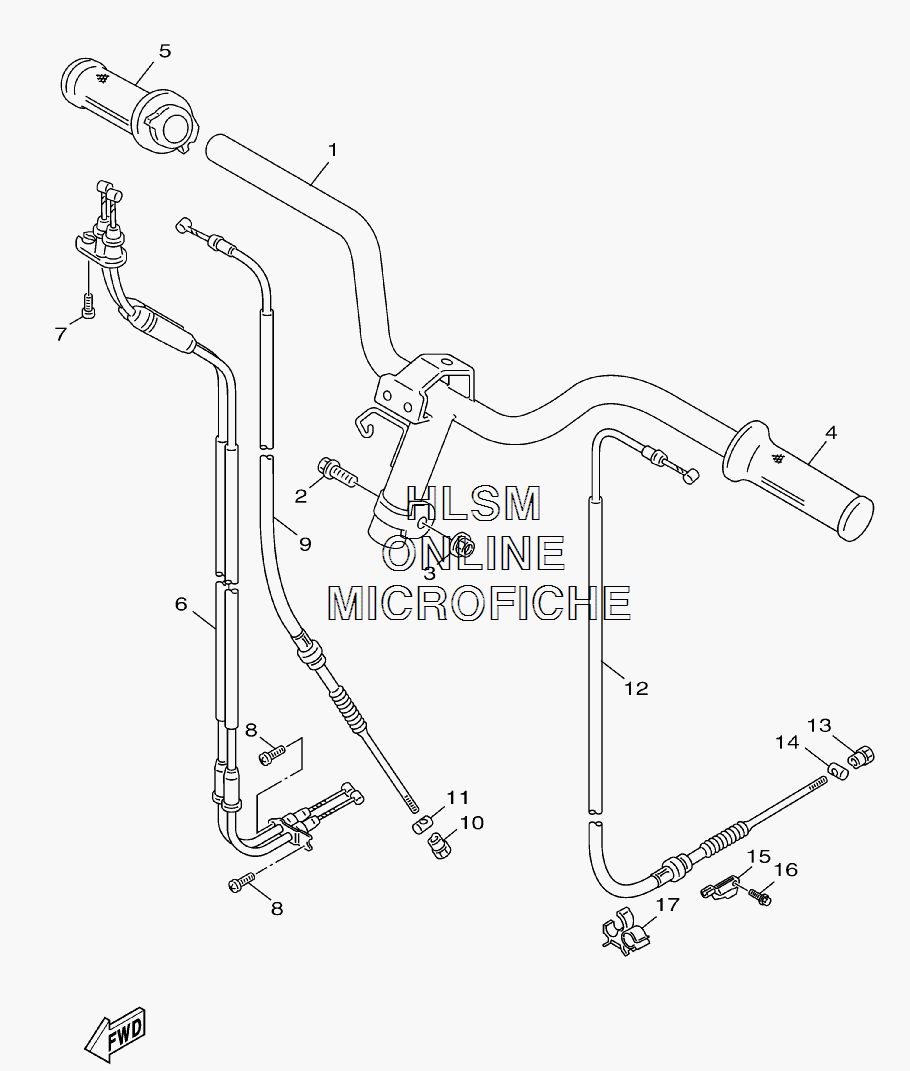

HANDLEBAR W/ CABLES - MIRRORS для Yamaha VINO 50 CLASSIC - 2008 года выпуска`
-
№АртикулНазвание
-
15ST-F6110-00-00 HANDLE COMP.HANDLE COMP.
-
290105-10036-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
390185-10801-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
45ST-F6241-00-00 GRIPGRIP
-
55ST-F6240-10-00 GRIP ASSYGRIP ASSY
-
65ST-F6301-00-00 THROTTLE CABLE ASSYTHROTTLE CABLE ASSY
-
798507-05010-00 SCREW, PAN HEAD (3SX)SCREW, PAN HEAD (3SX)
-
892017-05010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
95ST-F6341-00-00 WIRE, BRAKE 1WIRE, BRAKE 1
-
1090179-06411-00 NUT, SPECIAL SHAPENUT, SPECIAL SHAPE
-
1190249-12008-00 PIN, SPEC'L SHAPEPIN, SPEC'L SHAPE
-
125ST-F6351-00-00 CABLE, BRAKECABLE, BRAKE
-
1390179-06411-00 NUT, SPECIAL SHAPENUT, SPECIAL SHAPE
-
1490249-12008-00 PIN, SPEC'L SHAPEPIN, SPEC'L SHAPE
-
155ST-F639F-00-00 HOLDER 2HOLDER 2
-
1695807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1790464-11804-00 CLAMPCLAMP
