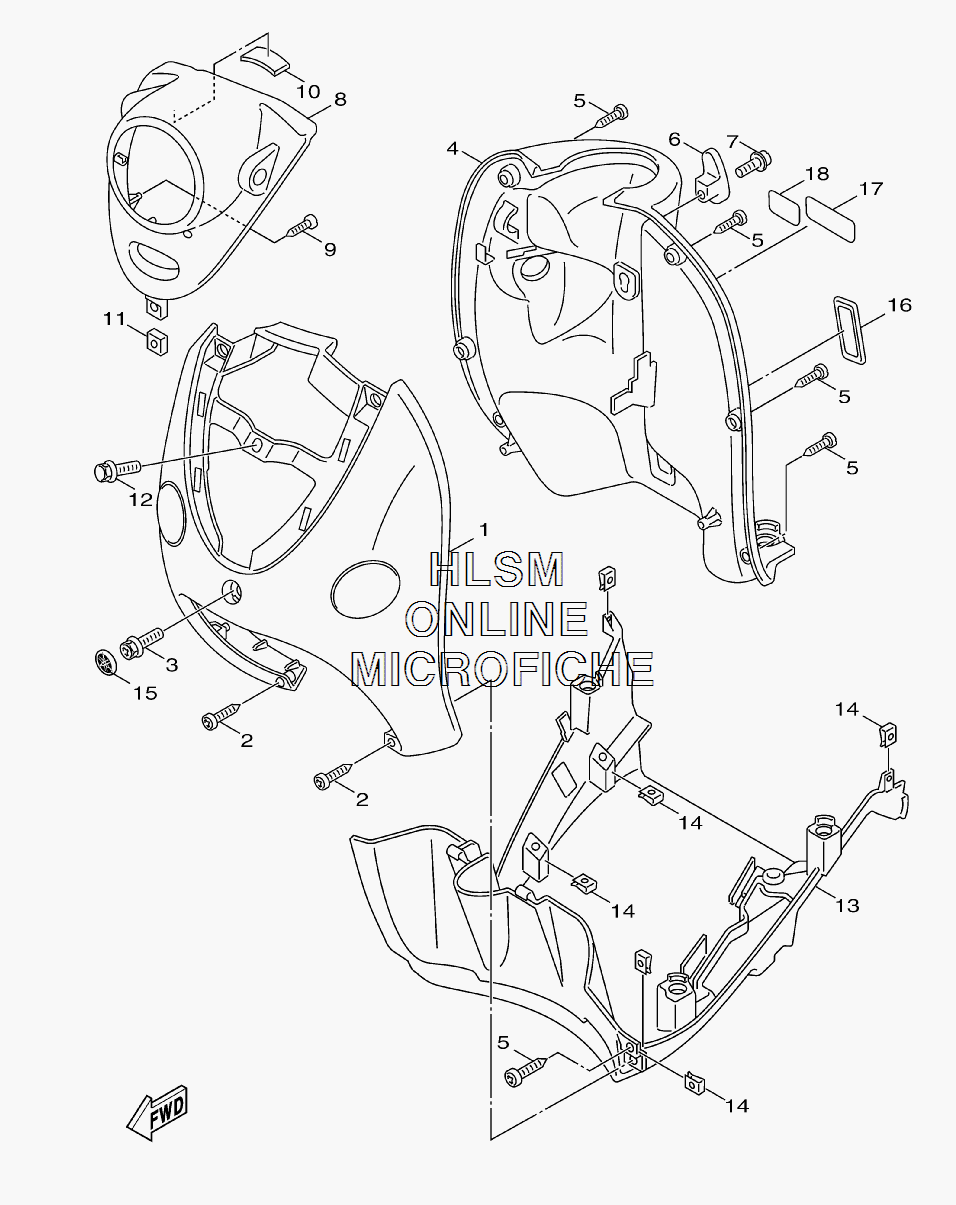

COWLING W/ LEG SHIELD для Yamaha VINO 50 CLASSIC - 2008 года выпуска`
-
№АртикулНазвание
-
15ST-X2831-11-P0 LEG SHIELD 1 (S3)LEG SHIELD 1 (S3)
-
15ST-X2831-01-P9 LEG SHIELD 1 (DRMD)LEG SHIELD 1 (DRMD)
-
297707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
390119-06096-00 BOLT WITH WASHERBOLT WITH WASHER
-
43D1-F8300-00-00 LEG SHIELD ASSYLEG SHIELD ASSY
-
597707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
65JS-F8257-40-00 HOOK 1HOOK 1
-
790159-06822-00 SCREW WITH WASHERSCREW WITH WASHER
-
83D1-H4144-01-00 COVER, HEADLIGHTCOVER, HEADLIGHT
-
990169-05001-00 TAPPING SCREWTAPPING SCREW
-
103D1-F8371-01-00 DAMPERDAMPER
-
112GF-F1535-00-00 NUT 1NUT 1
-
1290159-06016-00 SCREW WITH WASHERSCREW WITH WASHER
-
135ST-F8385-00-00 COVER, LOWERCOVER, LOWER
-
1490183-05807-00 NUT, SPRINGNUT, SPRING
-
155ST-F8349-01-00 CAPCAP
-
165FM-F8349-00-00 CAPCAP
-
173D1-F118K-00-00 LABEL, CAUTIONLABEL, CAUTION
-
183D1-F4877-00-00 LABEL, CAUTIONLABEL, CAUTION
