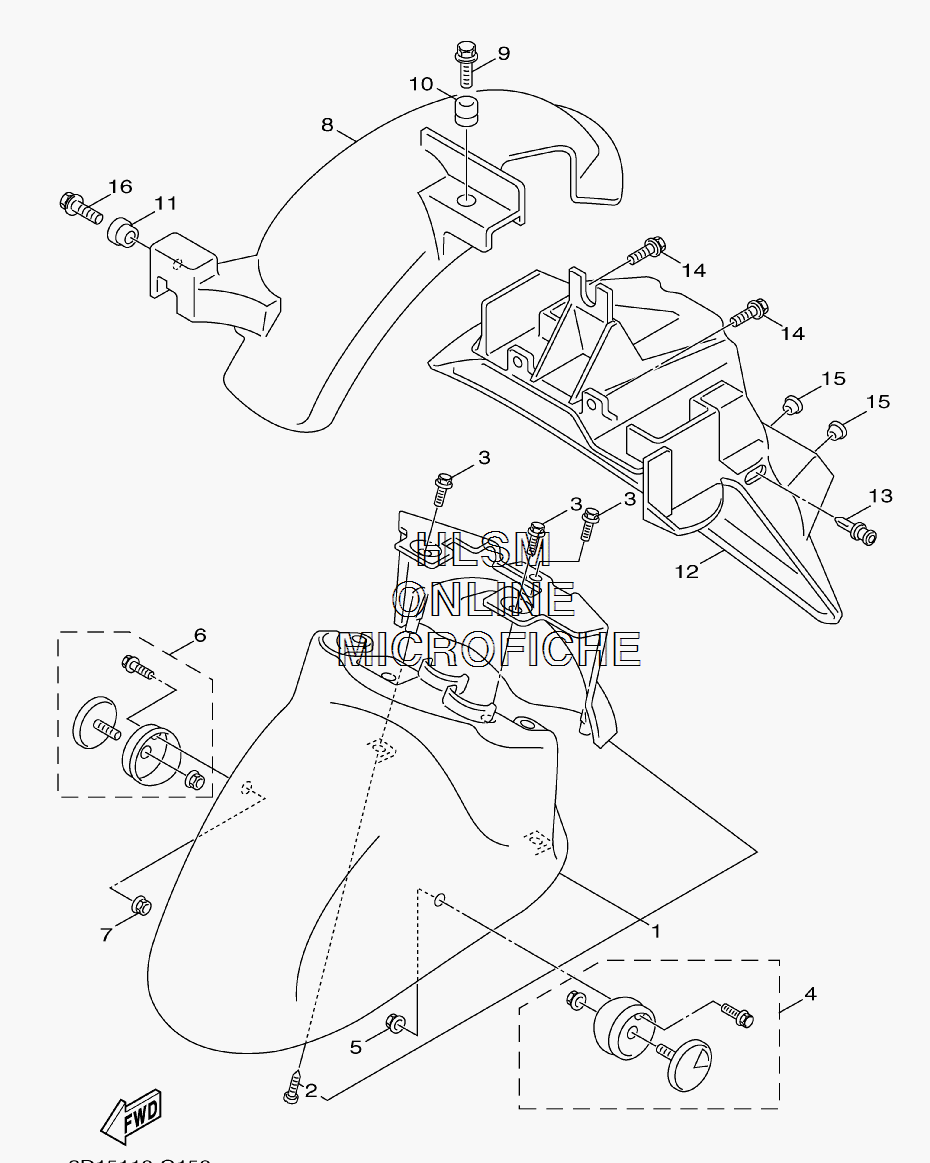

FENDER - FRONT / REAR для Yamaha VINO 50 CLASSIC - 2008 года выпуска`
-
№АртикулНазвание
-
13D1-XF151-00-P1 FENDER, FRONT (S3)FENDER, FRONT (S3)
-
13D1-XF151-00-P2 FENDER, FRONT (DRMD)FENDER, FRONT (DRMD)
-
297707-50012-00 ...SCREW, TRUSS HEAD TAPPING...SCREW, TRUSS HEAD TAPPING
-
390119-06821-00 BOLT WITH WASHERBOLT WITH WASHER
-
43D1-H5110-00-00 REFLECTOR ASSYREFLECTOR ASSY
-
595707-06500-00 NUT, FLANGENUT, FLANGE
-
63D1-H5120-00-00 FRONT REFLECTOR ASSY 2FRONT REFLECTOR ASSY 2
-
795707-06500-00 NUT, FLANGENUT, FLANGE
-
85ST-F1611-02-00 FENDER, REARFENDER, REAR
-
990119-06044-00 BOLT WITH WASHERBOLT WITH WASHER
-
1090387-06868-00 COLLARCOLLAR
-
1190387-063F7-00 COLLARCOLLAR
-
125ST-F1629-02-00 GUARD, MUDGUARD, MUD
-
1390269-06802-00 RIVETRIVET
-
1490109-06043-00 BOLTBOLT
-
153D1-F163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
1690119-06873-00 BOLT, WITH WASHERBOLT, WITH WASHER
