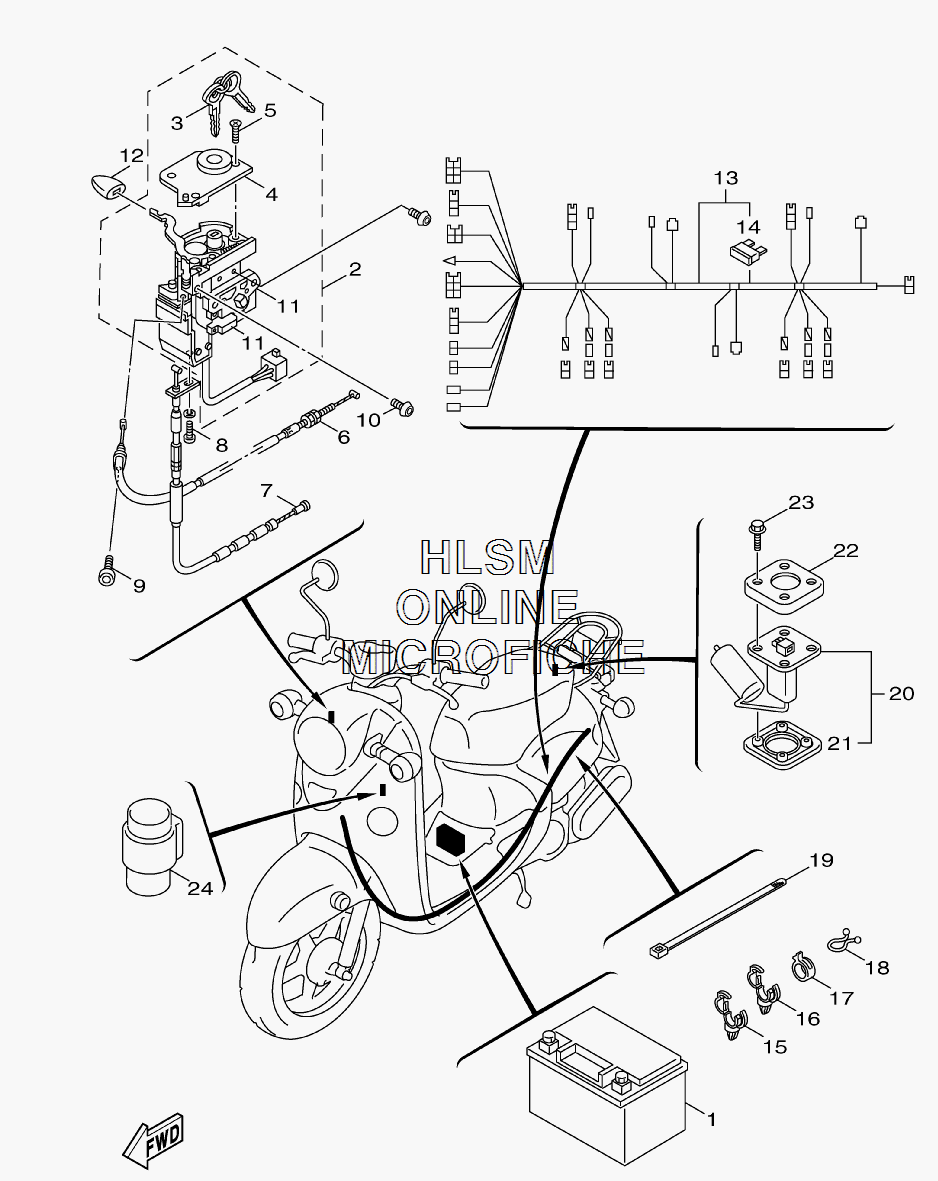

ELECTRICAL 2 для Yamaha VINO 50 CLASSIC - 2008 года выпуска`
-
№АртикулНазвание
-
1BTY-GTX5L-BS-00 BATTERY ASSY (GTX5L-BS)BATTERY ASSY (GTX5L-BS)
-
25ST-82020-01-00 MAIN SWITCH KITMAIN SWITCH KIT
-
35ST-H2511-00-A0 ...KEY, MAIN SWITCH...KEY, MAIN SWITCH
-
35ST-H2511-00-C0 ...KEY, MAIN SWITCH...KEY, MAIN SWITCH
-
45ST-F831B-00-00 ...CASE, UNIT 1...CASE, UNIT 1
-
598707-04012-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
65ST-F637E-00-00 CABLE, CONTROL 1CABLE, CONTROL 1
-
75ST-F478E-00-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
898507-05010-00 SCREW, PAN HEAD (3SX)SCREW, PAN HEAD (3SX)
-
990110-05800-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1090149-06813-00 SCREWSCREW
-
1190149-06814-00 SCREWSCREW
-
125SU-F836X-00-00 KNOB 1KNOB 1
-
133D1-H2590-01-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
145ML-H2151-20-00 ...FUSE (7.5A)...FUSE (7.5A)
-
1590464-20803-00 CLAMPCLAMP
-
1690464-20803-00 CLAMPCLAMP
-
1790464-25801-00 CLAMPCLAMP
-
1890464-23811-00 CLAMPCLAMP
-
1990464-12812-00 CLAMPCLAMP
-
205ST-X8575-00-00 SENDER UNIT ASSYSENDER UNIT ASSY
-
214US-85753-00-00 ...GASKET, SENDER UNIT...GASKET, SENDER UNIT
-
225SU-H5757-00-00 RETAINERRETAINER
-
2390119-05071-00 BOLT WITH WASHERBOLT WITH WASHER
-
245CA-H3350-10-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
